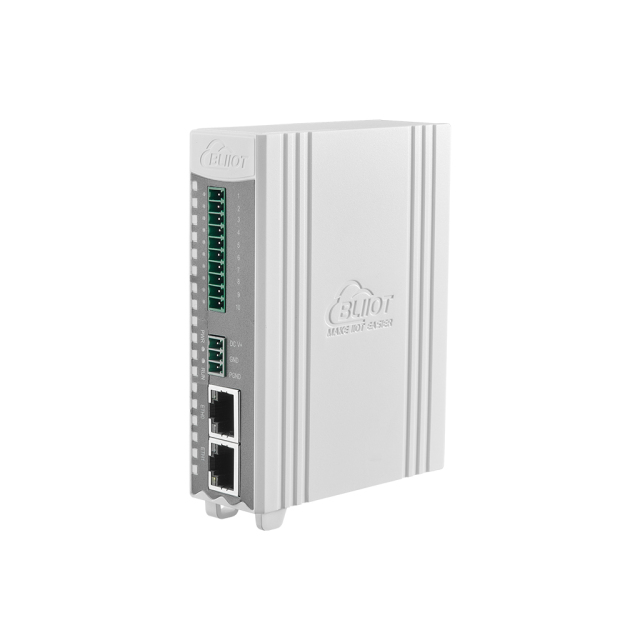

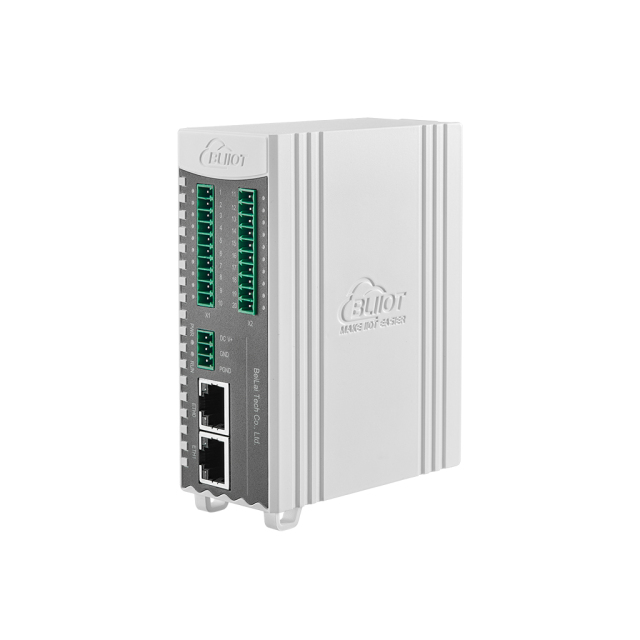

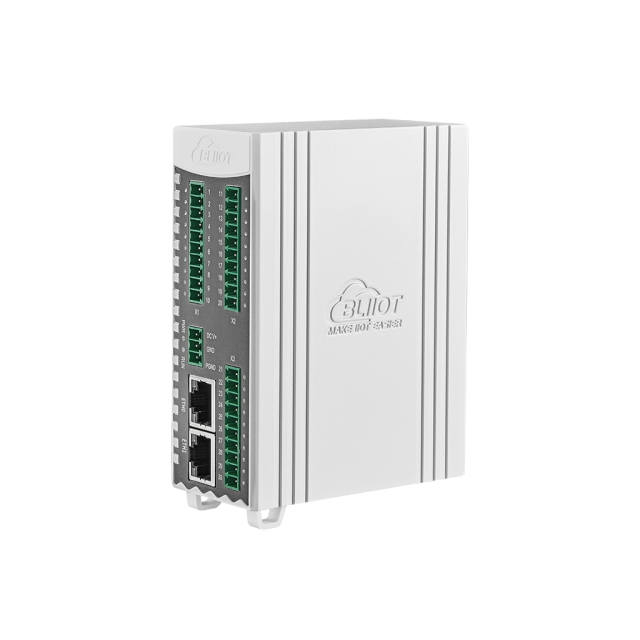

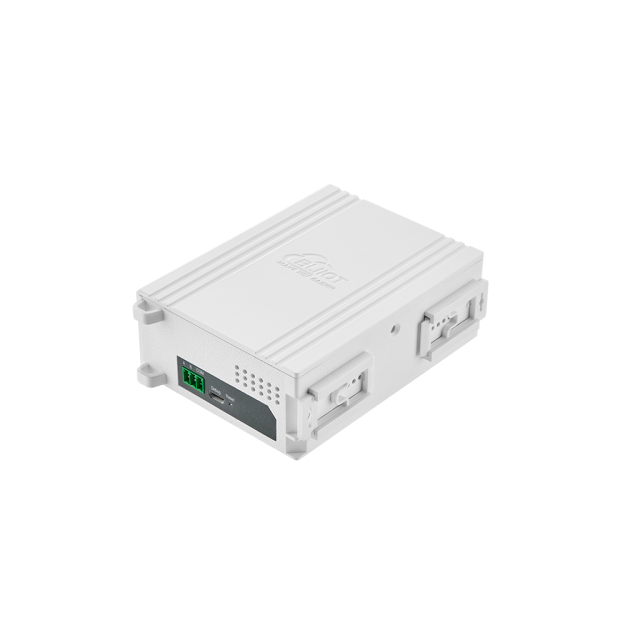

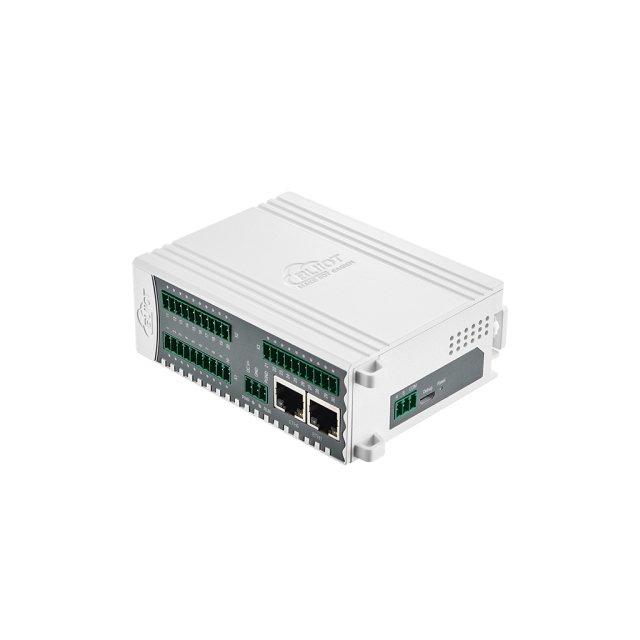

Key Features
IOy Series Model Selection
|
NO. |
Name |
Model |
Uplink protocol |
|
1 |
Modbus TCP Edge I/O Module |
BL190 |
Modbus TCP |
|
2 |
OPC UA Edge I/O Module |
BL191 |
OPC UA |
|
3 |
MQTT Edge I/O Module |
BL192 |
MQTT |
|
4 |
Versatile Edge I/O Module |
BL192Pro |
MQTT, Modbus TCP, OPC UA |
|
5 |
SNMP Edge I/O Module |
BL193 |
SNMP |
|
6 |
BACnet/IP Edge I/O Module |
BA190 |
BACnet/IP |
|
7 |
Building HVAC Edge I/O Module |
BA190Pro |
BACnet/IP, MQTT, Modbus TCP, OPC UA |
|
8 |
IEC104 Edge I/O Module |
BE190 |
IEC104 |
|
9 |
Energy and Photovoltaic Edge I/O Module |
BE190Pro |
IEC104, MQTT, Modbus TCP, OPC UA |
|
10 |
Profinet I/O Module |
BL196 |
Profinet |
|
11 |
EtherCAT I/O Module |
BL197 |
EtherCAT |
|
12 |
Ethernet/IP I/O Module |
BL198 |
Ethernet/IP |
Y Series I/O Module Selection
|
NO. |
Name |
Model |
Channel |
Signal Type |
|
1 |
8CH Digital Input Module |
Y11 |
8 |
NPN(Low-Level Triggering) |
|
2 |
8CH Digital Input Module |
Y12 |
8 |
PNP(High-Level Triggering) |
|
3 |
8CH Digital Input Module |
Y13 |
8 |
Dry Contact |
|
4 |
8CH Digital Output Module |
Y21 |
8 |
PNP |
|
5 |
8CH Digital Output Module |
Y22 |
8 |
NPN |
|
6 |
4CH Relay Output Module |
Y24 |
4 |
Relay |
|
7 |
8CH Digital Mixed Module |
Y01 |
8 |
4DI+4DO NPN |
|
8 |
8CH Digital Mixed Module |
Y02 |
8 |
4DI+4DO PNP |
|
9 |
4CH Analog Input Module |
Y31 |
4 |
0-20mA/4-20mA |
|
10 |
4CH Analog Input Module |
Y33 |
4 |
0-5V/0-10V Single-Ended Input |
|
11 |
4CH Analog Input Module |
Y34 |
4 |
0-5V/0-10V Differential Input |
|
12 |
4CH Analog Input Module |
Y36 |
4 |
±5V/±10V Differential Input |
|
13 |
4CH IEPE Measurement Module |
Y37 |
4 |
Low-Impedance Voltage Signal Output (e.g., for acquiring acceleration, pressure, decibel data) |
|
14 |
4CH Analog Output Module |
Y41 |
4 |
0-20mA/4-20mA |
|
15 |
4CH Analog Output Module |
Y43 |
4 |
0-5V/0-10V |
|
16 |
4CH Analog Output Module |
Y46 |
4 |
±5V/±10V |
|
17 |
2CH RTD Input Module |
Y51 |
2 |
3-Wire PT100 |
|
18 |
2CH RTD Input Module |
Y52 |
2 |
3-Wire PT1000 |
|
19 |
2CH RTD Input Module |
Y53 |
2 |
4-Wire PT100 |
|
20 |
2CH RTD Input Module |
Y54 |
2 |
4-Wire PT1000 |
|
21 |
4CH TC Input Module |
Y58 |
4 |
TC(B/E/J/K/N/R/S/T) |
|
22 |
8CH Pulse Output and Pulse Counting Module |
Y95 |
8 |
4CH Pulse Output + 4CH Pulse Counting (NPN) |
|
23 |
8CH Pulse Output and Pulse Counting Module |
Y96 |
8 |
4CH Pulse Output + 4CH Pulse Counting (PNP) |
|
24 |
4CH Serial Port Module |
Y61 |
4 |
4*RS485/RS232 optional |
|
25 |
4CH Serial Port Module |
Y62 |
4 |
1*CAN+3*RS485/RS232 reserve |
Technical Specifications
|
Item |
Parameters |
Description |
|
Power Supply |
Power Supply |
24VDC |
|
Power Consumption |
55mA@24VDC |
|
|
Reverse Polarity Protection |
Support |
|
|
Ethernet |
Quantity |
2 X RJ45 |
|
Transmission Medium |
Twisted Pair, STP 100 Ω Cat 5 |
|
|
Maximum Cable Length |
100m |
|
|
Rate |
10/100 Mbit/s |
|
|
Isolation Protection |
ESD: ±6kV (contact), ±8kV (air) EFT: 1kV, 5kHz |
|
|
Serial Port |
Quantity |
1x RS485 + Y61 Optional (4x RS485/RS232 Optional) |
|
Baud Rate |
2400bps-230400bps |
|
|
Data Bit |
8 |
|
|
Parity Bit |
None, Even, Odd |
|
|
Stop Bit |
1, 2 |
|
|
Serial Port Protection |
ESD: ±6kV (contact), ±8kV (air) EFT: 1kV, 5kHz |
|
|
DI(Optional) |
Channel |
8 channel |
|
Input Type |
Dry contact and wet contact (NPN or PNP) |
|
|
Y13 Dry Contact |
Closed: Shorted to COM Open: Open Circuit |
|
|
Y11(NPN) |
Logic 1: +15V to +30V DC Logic 0: -3V to +5V DC Common: Connect to power supply + |
|
|
Y12(PNP) |
Y12: Logic 1: +15V to +30V DC Logic 0: -3V to +5V DC Common: 0V DC |
|
|
Isolation Protection |
2KVrms |
|
|
DO(Optional) |
Channel |
8 channel |
|
Output Type |
Y21: High-level output is active, output 24V DC. Y22: Low-level output is active, output 0V DC. |
|
|
Maximum Output Current per Channel |
100mA |
|
|
Isolation Protection |
2KVrms |
|
|
Relay(Optional) |
Channel |
4 channel |
|
Output Type |
Relay Output |
|
|
Maximum Switching Voltage |
250VAC/30VDC |
|
|
Maximum Switching Current |
2A |
|
|
Switching Power |
30W |
|
|
Isolation Protection |
2KVrms |
|
|
AI(Optional) |
Channel |
4 channel |
|
Input Type |
Single-ended Input/Differential Input |
|
|
Input Type |
0 to 20mA / 4 to 20mA (4-wire) 0-5V / 0-10V (4-wire) -5V to 5V / -10V to 10V (4-wire) |
|
|
Resolution |
16 Bit |
|
|
Accuracy |
±0.1 % FSR @ 25 ℃ |
|
|
Sampling Period |
300ms |
|
|
Built-in Input Resistance for Current Input |
249Ω |
|
|
AO(Optional) |
Channel |
4 Channel |
|
Output Type |
0 ⋯20mA / 4⋯20mA 0-5V/0-10V -5-5V/-10-10V |
|
|
Resolution |
12bit |
|
|
Accuracy |
±0.1 % FSR @ 25 ℃ |
|
|
Conversion time |
20ms |
|
|
Load impedance (current mode) |
≤1KΩ |
|
|
Load impedance (voltage mode) |
≥5KΩ |
|
|
RTD(Optional) |
Input type |
3-wire or 4-wire PT100/PT1000 wiring |
|
Measuring range |
PT100(-200~850℃), PT1000(-50~300℃) |
|
|
Resolution |
15 Bit |
|
|
Accuracy |
±1°C, Shielded AWG16 cable, up to 20 meters |
|
|
Sampling period |
400ms |
|
|
TC(Optional) |
Sensor type |
J, K, T, E, R, S, B, N |
|
Resolution |
16 Bit |
|
|
Accuracy |
±0.5% @25℃ |
|
|
Sampling period |
400ms |
|
|
DI DO(Optional)
|
Digital Output Parameters |
|
|
Channel |
4 channel |
|
|
Output Type |
Y01: Low-level output is active, output 0VDC. Y02: High-level output is active, output 24VDC. |
|
|
Maximum output current per channel |
100mA |
|
|
Isolation protection |
2KVrms |
|
|
Digital Input Parameters |
||
|
Channel |
4 channel |
|
|
Trigger method |
Y01: Triggered by low level Y02: Triggered by high level |
|
|
Logic level |
Y01: Logic 1: +15 ⋯ +30VDC Logic 0: -3 ⋯ +5VDC Common terminal: Connected to +V (power supply)
Y02: Logic 1: +15 ⋯ +30VDC Logic 0: -3 ⋯ +5VDC Common terminal: 0VDC |
|
|
Isolation protection |
2KVrms |
|
|
Pulse Output and Pulse Counting Module |
Pulse output parameters |
|
|
Channel |
4 channel |
|
|
Output Delay |
＜1ms |
|
|
Duty cycle |
Range: 0~100, customizable setting |
|
|
Maximum Switching Frequency |
20KHz |
|
|
Isolation protection |
2KVrms |
|
|
Pulse counting parameters |
||
|
Channel |
1 high-speed counting channel + 3 low-speed counting channels |
|
|
Maximum Switching Frequency |
High-speed: Maximum 50kHz, Low-speed: Maximum 5kHz |
|
|
Counting Range |
32-bit unsigned |
|
|
Isolation protection |
2KVrms |
|
|
IEPE(Optional) |
Channel |
4 channel |
|
Signal Input Range |
±10V |
|
|
Coupling |
AC coupling |
|
