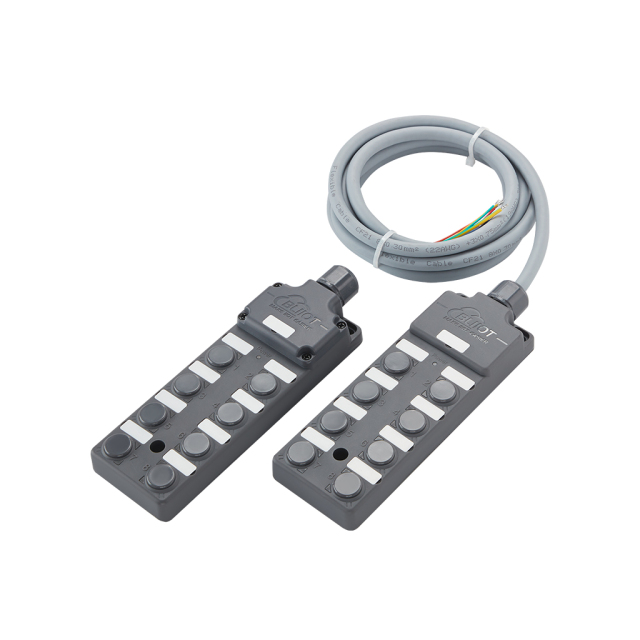

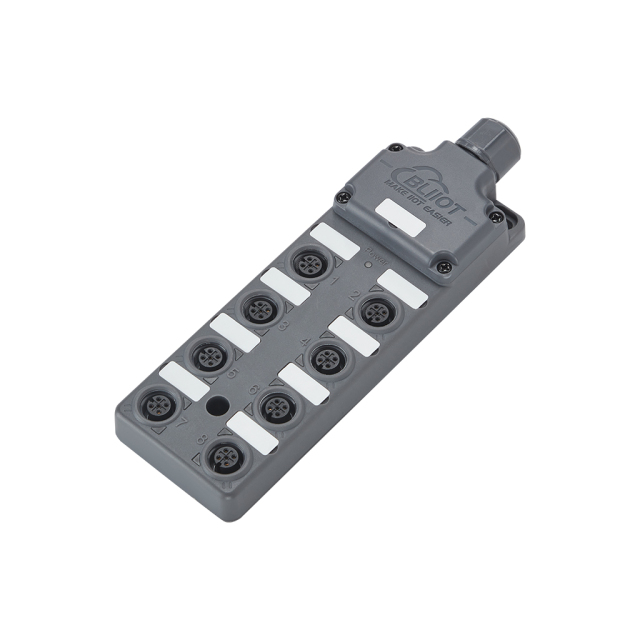

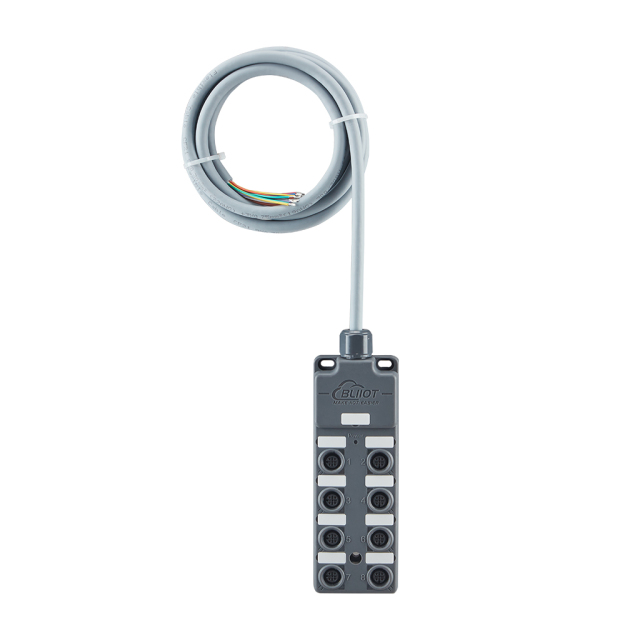

The IPM Series IP67 waterproof and dustproof remote I/O modules feature an industrial-grade design. They communicate via an RS485 interface and support the Modbus RTU protocol. The modules provide 8 channels of dry contact input (compatible with both dry and wet contacts) and adopt two wiring options: a pre-molded cable with potting process (IPM100) or an external cable with built-in tool-free terminal blocks (IPM100T), which facilitate on-site installation. The enclosure is made of acid- and alkali-resistant materials, offering protection up to IP67.
The IPM Series is designed to collect dry or wet contact sensor signals from various field devices and integrate them into a single multi-core cable, enabling connection between sensors and controllers through the cable.
With built-in tool-free terminal blocks, the IPM modules allow flexible cable length customization based on site requirements for quick field wiring. The compact junction box design ensures flexible installation, simple wiring, and stable, reliable performance. These modules are ideal for applications in water treatment, mining, marine, tunnels, logistics equipment, food processing, pharmaceutical machinery, and other industrial automation systems.

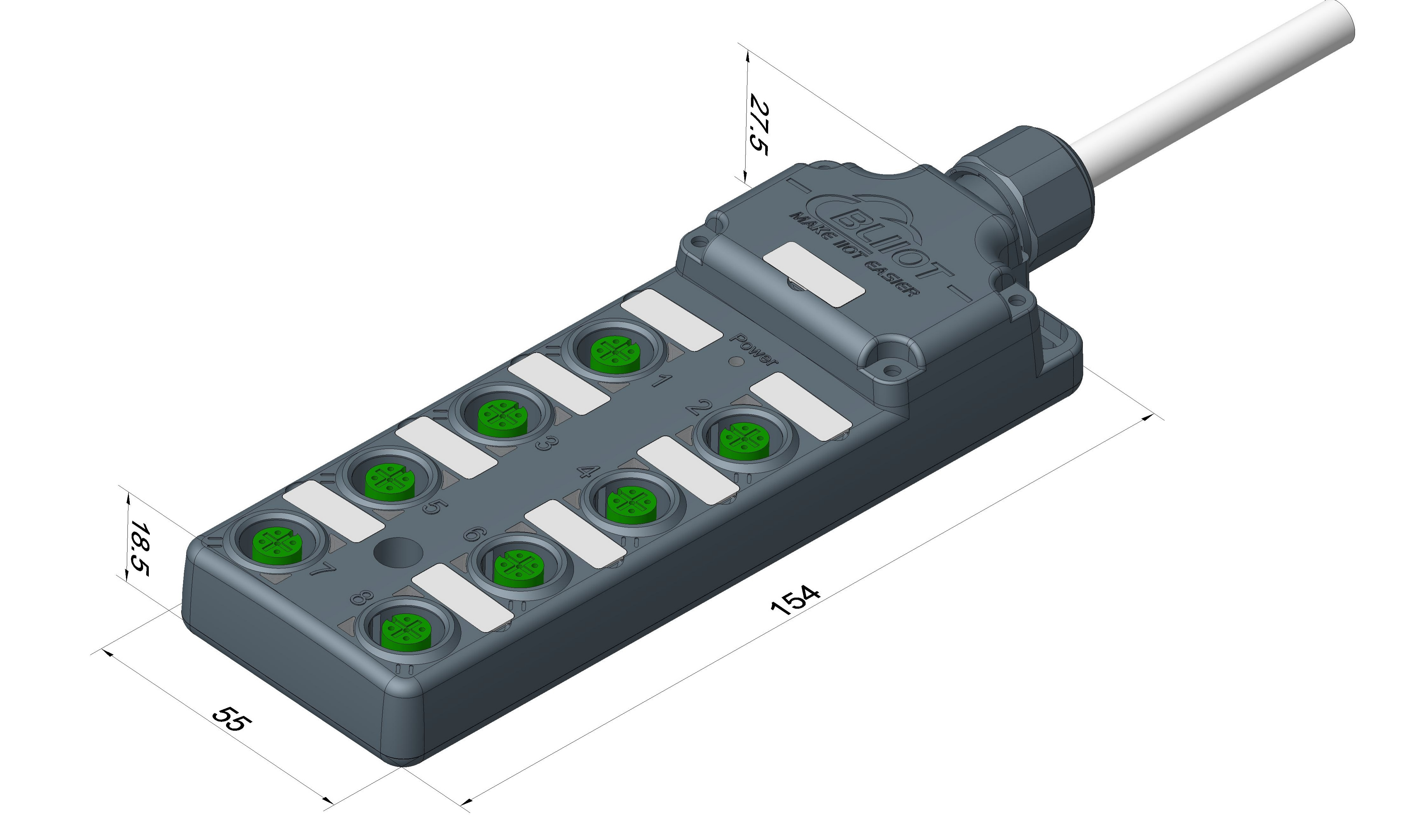

55×154×27.5(L×W×H, mm)
Technical Parameters|
Cable Type |
8 Channels: 8×0.3mm²+3×0.75mm²(Gray) |
|
|
Specifications
|
Rated Voltage |
9~36V DC |
|
Rated Power |
1W |
|
|
Protection Level |
IP67 |
|
|
Dry Contact |
l Close: Short circuit l Open: Open circuit |
|
|
Wet Contact |
l Supports NPN or PNP l Close: 10–30 V DC l Open: 0–3 V DC |
|
|
Operating Temperature |
-20~+70℃ |
|
|
Storage Temperature |
-40~+85℃ |
|
|
LED Indicators |
Power (Red), Signal (Red) |
|
|
|
Number of Ports |
1 x RS485 |
|
Baud Rate |
2400 ~ 128000 |
|
|
Data Bits |
7, 8 |
|
|
Parity |
None, Even, Odd |
|
|
Stop Bits |
0.5, 1, 1.5, 2 |
|
|
Model |
Name |
Description |
|
IPM100 |
IP67 8DI RS485 I/O Module |
IP67 Potting Waterproof, 8DI, RS485 Uplink, Delivered with Pre-Molded Cable |
|
IPM100T |
IP65 8DI RS485 I/O Module |
IP65 Waterproof, 8DI, RS485 Uplink, Delivered with Tool-Free Terminal Blocks |
|
Note |
Cable Length Customizable According to Requirements |
|
