Model |
ETH |
USB |
HDMI |
X board I/O Slot |
Y board I/O Slot |
Dimension |
|

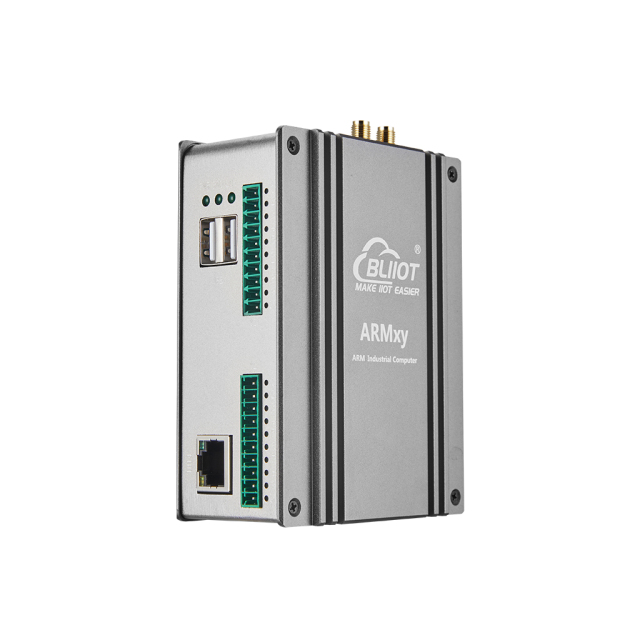

BL410 |
1x10/100M |
2 |
X |
1x6PIN |
X |
42x83x110mm |
|
BL410A |
1x10/100M |
2 |
X |
1x20PIN |
X |
42x83x110mm |
|
BL410B |
1x10/100M |
2 |
X |
1x20PIN |
2 |
48x83x110mm |
|
BL410C |
1x10/100M |
2 |
X |
1x10PIN |
X |
42x83x110mm |
|

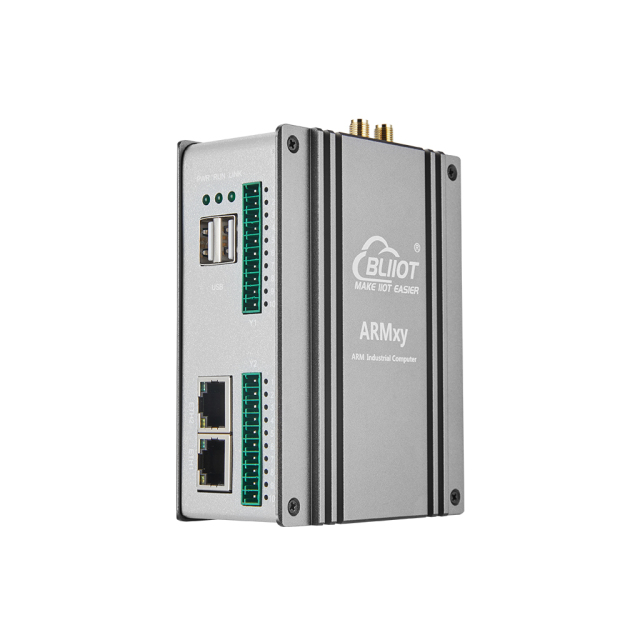

BL411 |
2x10/100M |
2 |
X |
1x6PIN |
X |
42x83x110mm |
|
BL411A |
2x10/100M |
2 |
X |
1x20PIN |
X |
42x83x110mm |
|
BL411B |
2x10/100M |
2 |
X |
1x20PIN |
2 |
48x83x110mm |
|

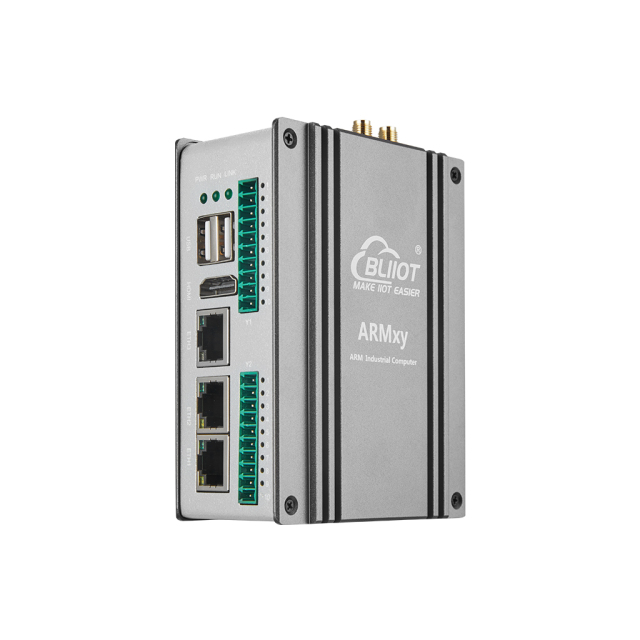

BL412 |
3x10/100M |
2 |
1 |
1x6PIN |
X |
42x83x110mm |
|
BL412A |
3x10/100M |
2 |
1 |
1x20PIN |
X |
42x83x110mm |
|
BL412B |
3x10/100M |
2 |
1 |
1x20PIN |
2 |
48x83x110mm |
|
Model |
MCU |
Clock Speed |
Kernel |
NPU |
eMMC |
DDR4 |
Temperature |
|
SOM410 |
RK3568J |
1.8GHz |
4 x A55 |
1TOPS |
8GByte |
1GByte |
-40~85°C |
|
SOM411 |
RK3568J |
1.8GHz |
4 x A55 |
1TOPS |
16GByte |
2GByte |
-40~85°C |
|
SOM412 |
RK3568J |
1.8GHz |
4 x A55 |
1TOPS |
32GByte |
4GByte |
-40~85°C |
|
SOM413 |
RK3568B2 |
2.0GHz |
4 x A55 |
1TOPS |
8GByte |
1GByte |
0~70°C |
|
SOM414 |
RK3568B2 |
2.0GHz |
4 x A55 |
1TOPS |
16GByte |
2GByte |
0~70°C |
|
SOM415 |
RK3568B2 |
2.0GHz |
4 x A55 |
1TOPS |
32GByte |
4GByte |
0~70°C |
|
Model |
RS232/RS485 |
CAN |
DI |
DO |
GPIO |
PIN |
|
X10 |
2 |
x |
x |
x |
x |
6PIN |
|
X11 |
x |
2 |
x |
x |
x |
6PIN |
|
X12 |
1 |
1 |
x |
x |
x |
6PIN |
|
X13 |
x |
x |
2 |
2 |
x |
6PIN |
|
X14 |
x |
x |
4 |
x |
x |
6PIN |
|
X15 |
x |
x |
x |
4 |
x |
6PIN |
|
X16 |
x |
x |
x |
x |
4 |
6PIN |
|
X20 |
4 |
x |
x |
x |
x |
10PIN |
|
X21 |
3 |
1 |
x |
x |
x |
10PIN |
|
X22 |
2 |
2 |
x |
x |
x |
10PIN |
|
X23 |
4 |
x |
4 |
4 |
x |
20PIN |
|
X24 |
3 |
1 |
4 |
4 |
x |
20PIN |
|
X25 |
2 |
2 |
4 |
4 |
x |
20PIN |
|
X26 |
2 |
x |
8 |
4 |
x |
20PIN |
|
X27 |
1 |
1 |
8 |
4 |
x |
20PIN |
|
X28 |
2 |
x |
12 |
x |
x |
20PIN |
|
X29 |
1 |
1 |
12 |
x |
x |
20PIN |
|
X30 |
x |
x |
x |
x |
16 |
20PIN |
|
Model |
Description |
|
Model |
Description |
|
Y01 |
4xDI+4xDO(NPN) |
Y41 |
4xAO, 0~20mA/4~20mA |
|
|
Y02 |
4xDI+4xDO(PNP) |
Y43 |
4xAO, 0~5V/0~10V |
|
|
Y11 |
8xDI(NPN) |
Y46 |
4xAO, ±5V/±10V |
|
|
Y12 |
8xDI(PNP) |
Y51 |
2xRTD, 3-Wire PT100 |
|
|
Y13 |
8xDI(Dry Contact) |
Y52 |
2xRTD, 3-Wire PT1000 |
|
|
Y21 |
8xDO(PNP) |
Y53 |
2xRTD, 4-Wire PT100 |
|
|
Y22 |
8xDO(NPN) |
Y54 |
2xRTD, 4-Wire PT1000 |
|
|
Y24 |
4xDO(Relay) |
Y56 |
Resistance Measurement |
|
|
Y31 |
4xAI, Single-ended, 0~20mA/4~20mA |
Y57 |
Voltage Measurement |
|
|
Y33 |
4xAI, Single-ended, 0~5V/0~10V |
Y58 |
4xTC |
|
|
Y34 |
4xAI, Differential, 0~5V/0~10V |
Y63 |
4xRS485 or RS232 |
|
|
Y36 |
4xAI, Differential, ±5V/±10V |
|
Y95 |
4xPWM Output(NPN) + 4xPulse Counter Input |
|
Y37 |
4xIEPE |
|
Y96 |
4xPWM Output(PNP) + 4xPulse Counter Input |
|
Hardware |
Parameters |
|
CPU |
Rockchip RK3568J/RK3568B2, 22nm |
|
ARM Cortex-A55 cores (64-bit) with a clock speed of 1.4GHz in normal mode and up to 1.8GHz in overdrive mode. |
|
|
RK3568B2 clock speed 2.0GHz |
|
|
NPU: 1 TOPS Supports INT8/INT16/FP16/BFP16 Supports TensorFlow/PyTorch/Caffe/MXNet deep learning frameworks |
|
|
Encoder: Supports 4K@60fps H.265/H.264 video decoding |
|
|
|
Decoder: Supports 1080P@60fps H.265/H.264 video encoding |
|
ROM |
8/16/32GByte eMMC |
|
RAM |
1/2/4GByte LPDDR4X |
|
ETH |
RJ-45, 1~3, 3x10/100M, ESD Level 3, EFT Level 3 |
|
USB |
2x USB2.0 HOST(USB1, USB2), supports high-speed 480Mbps, ESD Level 3 |
|
HDMI |
1x HDMI2.0a, support 1080P@120fps, 4K@60fps |
|
I/O Slot |
X series I/O board slot: 1, support RS485, CAN, RS232, RS422, DI, DO, GPIO, etc; Y series I/O board slot: 2, support RS485, CAN, RS232, RS422, DI, DO, Relay output, AI, AO, PT100, PT1000, TC, etc. |
|
LED |
1x power indicator light |
|
2x user-programmable indicator light |
|
|
Mini PCIe |
1, Supports Bluetooth, Wi-Fi, 4G module, etc. |
|
SIM Slot |
1 slot, NANO |
|
Antenna |
2, For 4G/Wi-Fi/GPS |
|
Debug |
1x Micro USB debug port |
|
SD Slot |
1 |
|
Reset |
1 reset button |
|
Watchdog |
Onboard independent hardware watchdog |
|
Power |
Rated DC 24V, supports wide voltage range of 12-24VDC Equipped with reverse polarity protection and overcurrent protection 3-pin terminal block with screw terminals |
|
Grounding |
1-pin GND terminal |
|
Installation |
DIN35 rail mounting, wall mounting |
|
Material |
Aluminum alloy casing + stainless steel |
|
Dimension |
110*83*42mm or 110*83*48mm |
