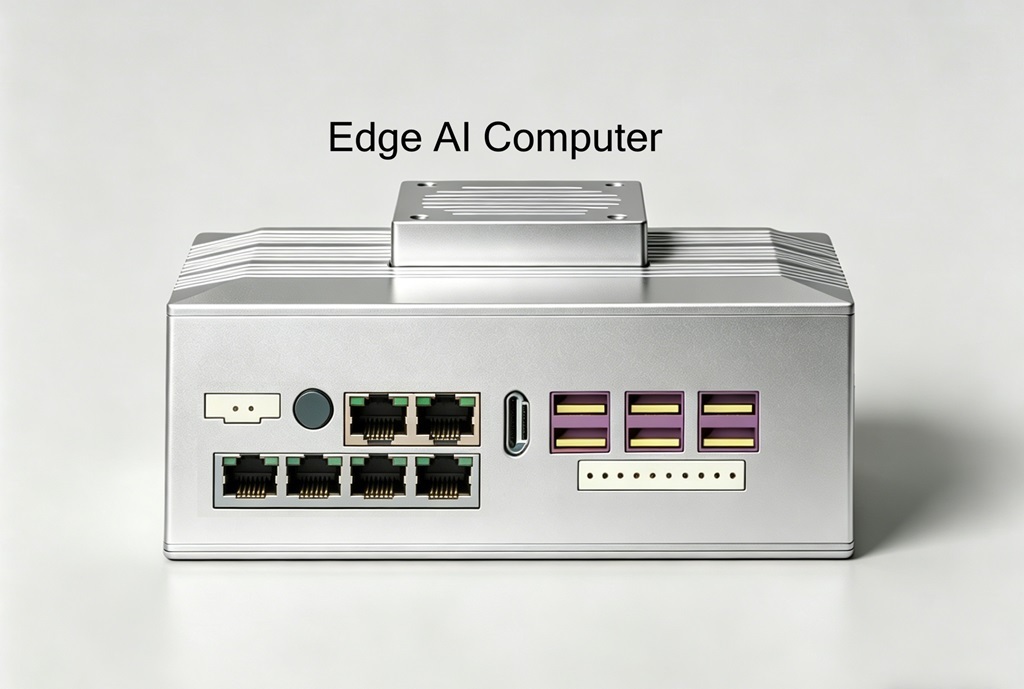

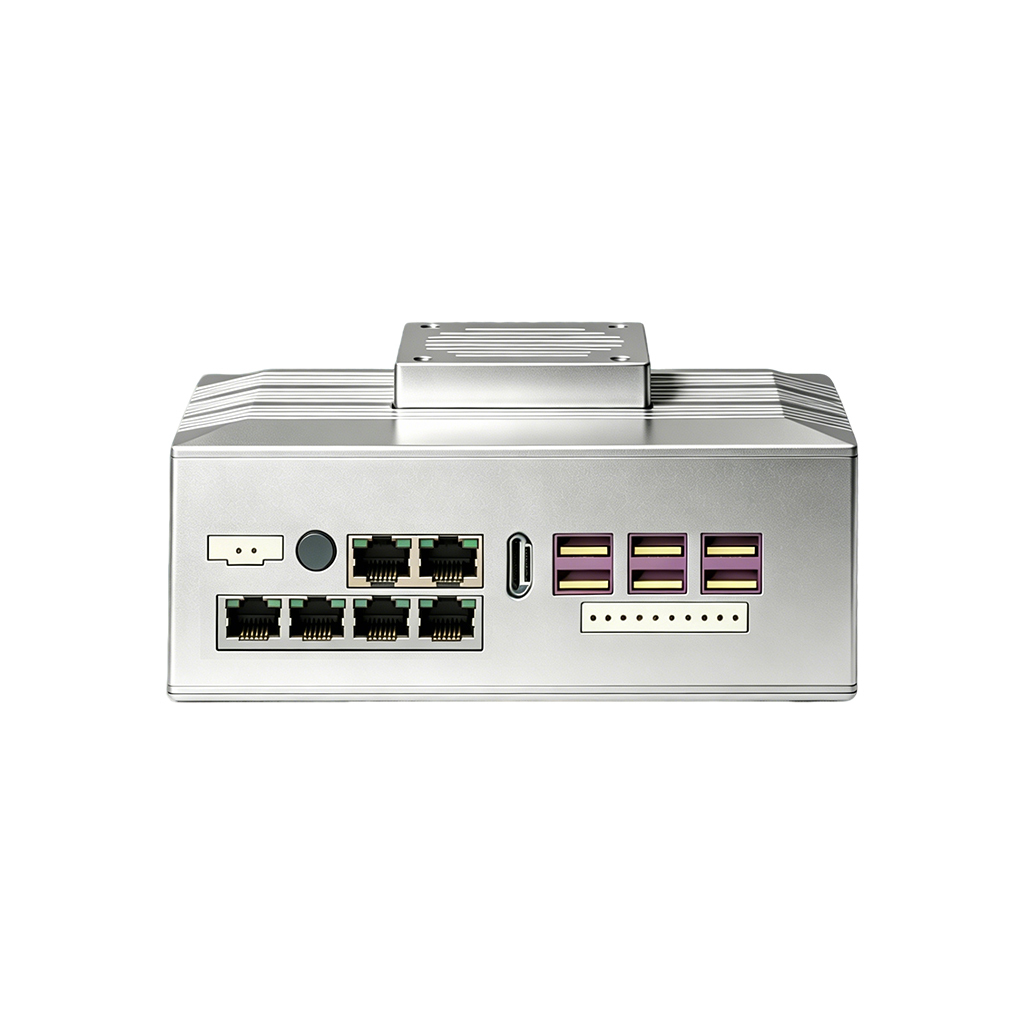

NVIDIA® Jetson Orin™ Nano Edge AI Computer EA230

Name: NVIDIA® Jetson Orin™ Nano Edge AI Computer EA230
Brand: Beilai Tech. Co., Ltd.
SKU: EA230 Series

No.EA230 Series

EA230 is a rugged industrial AI edge computer powered by NVIDIA Jetson Orin Nano, delivering up to 67 TOPS INT8 in a fanless aluminium chassis. It combines dual Ethernet (2.5GbE + 1GbE), 4× USB 3.1, isolated RS-485/RS-232, isolated CAN-FD and GPIO, 12–24V wide DC input, and -20°C to +75°C operation — so vision models, LLMs and control logic run reliably on-site, in real time.

Request Pricing

Description
Model Selection

NVIDIA® Jetson Orin™ Nano Platform

Edge AI that works
where your data is created

EA230 puts up to 67 TOPS of INT8 AI performance inside a rugged, all-aluminium industrial computer — so your vision models, LLMs and control logic run on-site, in real time, with no cloud round-trip and no data leaving the plant.

67 TOPSINT8 AI

-20 / +75 °COperating

2.5G + 1GDual Ethernet

12–24 VWide DC Input

Why EA230

Built for the decisions you can't send to the cloud

Six things our customers care about most — and how EA230 answers each one.

Answer in milliseconds, not round-trips

Up to 67 TOPS INT8 from 1024 CUDA cores and 32 fourth-generation Tensor Cores. Run YOLO detection, semantic segmentation, pose estimation or a lightweight LLM/VLM entirely on the device — no cloud latency, no recurring bandwidth cost.

6-core Arm Cortex-A78AE @ 1.7 GHz · 7–15 W typical

Keeps your data on your premises

Inference happens locally, so camera feeds, medical images and production data never leave the site. Privacy-sensitive footage can be anonymised at the edge before anything is uploaded — or simply never uploaded at all.

On-device inference · Local data anonymisation

Survives the factory floor, not the lab

A fanless all-aluminium chassis rated from -20 °C to +75 °C, fed by a 12–24 V wide DC input. Immunity tested to EMC level III: ESD ±6/±8 kV, EFT, surge, voltage dips and 30 A/m magnetic fields.

IP30 · CE / FCC · Optional active cooling

Connects every sensor and every bus

One 2.5 GbE and one 1 GbE port for high-bandwidth cameras and uplink, four USB 3.1 Gen1 ports at 5 Gbps, plus isolated RS-485/RS-232, isolated CAN-FD and isolated GPIO for the PLCs, drives and sensors already on your line.

2× Ethernet · 4× USB 3.1 · 2× USB 2.0 · HDMI 2.1 8K30

Configure once, scale across the fleet

Storage, connectivity and security are all modular: M.2 Key-M for NVMe, M.2 Key-E for Wi-Fi 6/Bluetooth, Mini PCIe for LTE/5G, plus optional firmware TPM 2.0. Buy only what each site needs and upgrade later.

M.2 Key-M / Key-E · Mini PCIe · fTPM 2.0

Service the fleet without sending a truck

An optional out-of-band management module lets you power-cycle or reboot any unit over Ethernet, Wi-Fi or 4G — even when the operating system is unresponsive. Ideal for cabinets in the field, on a pole, or hours away.

OOB power control · Ethernet / Wi-Fi / 4G

Applications

Where EA230 is deployed today

Robotics — AMR / AGV

Intelligent video analytics

Smart retail & unmanned stores

Industrial IoT & edge gateways

Medical imaging & healthcare

Smart cities & infrastructure

Vision-language models (VLM)

LLM & multimodal inference

Specifications

Core specifications

System block diagram

Core hardware parameters

CPU	NVIDIA® Jetson Orin™ Nano — 6-core Arm Cortex-A78AE, up to 1.7 GHz
GPU	1024 CUDA cores + 32 Tensor Cores (4th generation)
AI performance	Up to 67 TOPS (INT8) with the 8 GB module / up to 34 TOPS with the 4 GB module
Memory	4 GB or 8 GB LPDDR5
Video encode	1080p30, supports 1–2 CPU cores
Video decode	1× 8K30 / 2× 4K60 / 4× 4K30 / 9× 1080p60 (H.265)
Ethernet	2× RJ-45: 1× 1 Gb + 1× 2.5 Gb auto-negotiating; ESD level 3, EFT level 3
USB	2× USB 2.0 Type-A (480 Mbps) · 4× USB 3.1 Gen1 Type-A (5 Gbps)
Display	1× HDMI 2.1, up to 8K@30 Hz
Audio	1× audio out (headphone/line); APE and HDA support; I2S digital audio interface
Storage	1× M.2 Key-M (2280) with PCIe Gen3 x1 for NVMe SSD
Wireless expansion	1× M.2 Key-E (2230) for Wi-Fi 6 / Bluetooth, supporting PCIe, USB and UARTModule sold separately
Cellular	1× Mini PCIe for LTE/5G modem or Wi-Fi, USB 2.0 only — 4G and Wi-Fi are mutually exclusive
Security	Firmware-based TPM 2.0 (fTPM), compliant with the TPM 2.0 standard
Digital I/O	2× isolated GPI (5 V level) · 2× isolated GPO (5 V level)
Serial	1× isolated RS-485, pin-multiplexed with RS-232 (RS-485 by default, RS-232 on request) · 1× isolated CAN-FD
Out-of-band	Optional OOB management module with its own Ethernet, Wi-Fi and 4G interfaces (Mini PCIe, USB only)
Power input	12–24 V wide DC input via 2-pin terminal block
Operating temp.	-20 °C to +75 °C
Storage temp.	-40 °C to +85 °C
Dimensions	Standard: 166 × 107.6 × 52.5 mm · With fan: 166 × 107.6 × 60.1 mm
Certification	CE, FCC

Support

Development resources & services

Development resources

System image and root file system image
Kernel driver source code
Complete platform SDK
Getting-started guides and a library of demo programs

Value-added services

Second-development assistance
Custom R&D and manufacturing
Long-term after-sales support
