Name: NVIDIA Jetson Orin NX Industrial AI Edge Computer EA250
Brand: Beilai Tech. Co., Ltd.
SKU: EA250

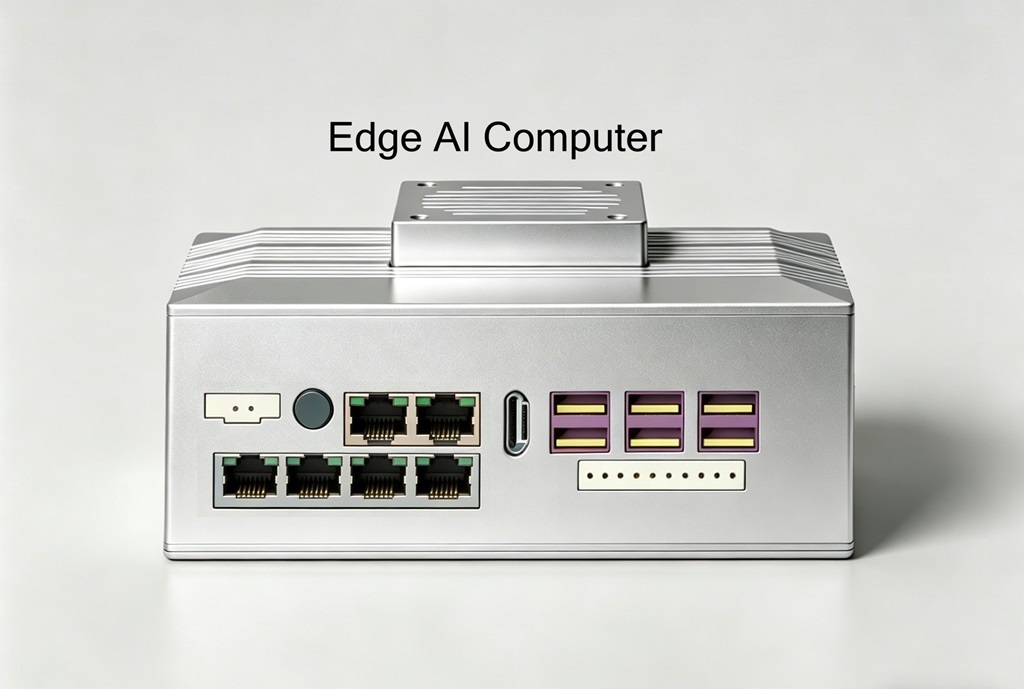

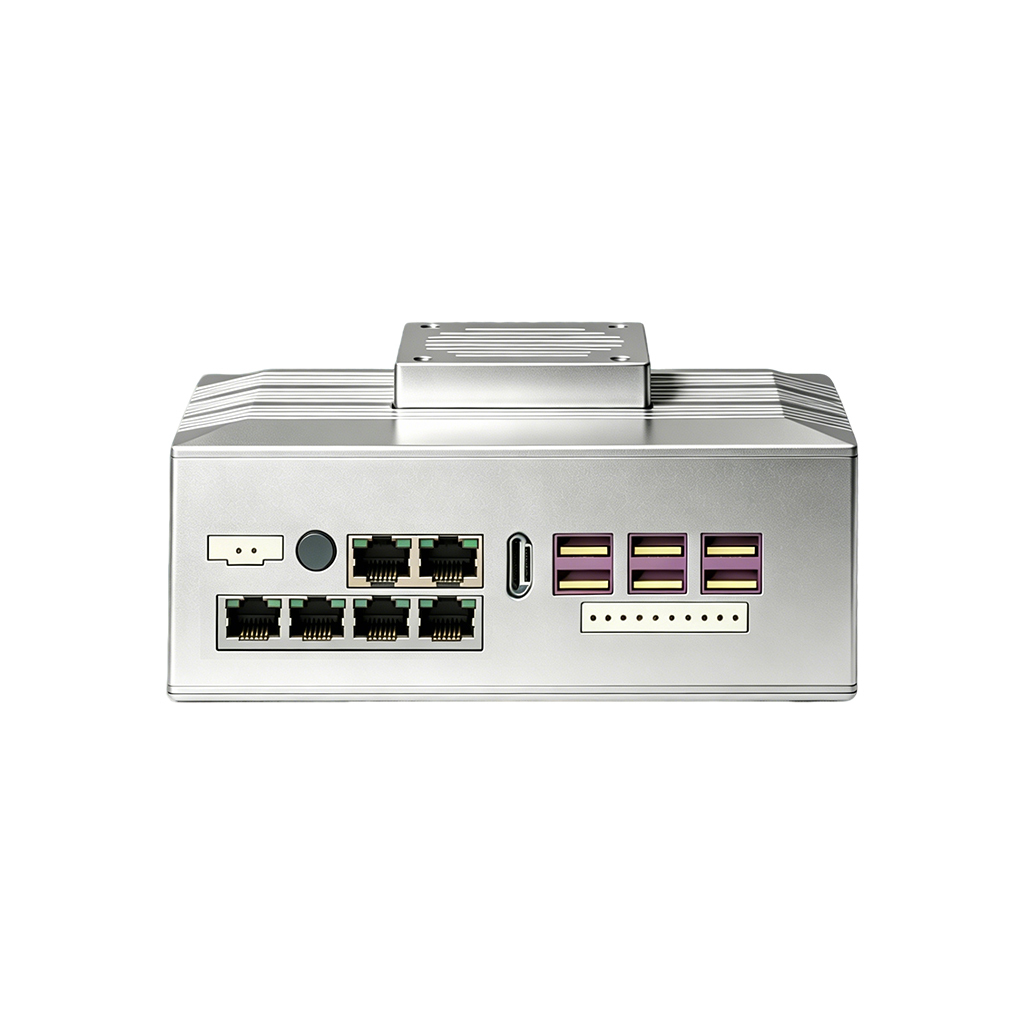

NVIDIA Jetson Orin NX Industrial AI Edge Computer EA250

No.EA250

EA250: rugged industrial edge AI computer with NVIDIA Jetson Orin NX, up to 157 TOPS INT8, 8-core Cortex-A78AE, 8K30 decode / 4K60 encode, dual Ethernet, isolated RS-485/CAN-FD, 12–24V input, -20 to +75°C.

High-performance edge AI,
built for demanding industrial workloads

EA250 delivers up to 157 TOPS of INT8 AI performance from an 8-core Arm Cortex-A78AE CPU and 1024 CUDA cores. With 8K30 decode, 4K60 encode and a rugged aluminium chassis, it runs complex vision, LLM and multimodal models on-site.

157 TOPSINT8 AI

8-coreCortex-A78AE @ 2.0 GHz

8K30 / 4K60Decode / Encode

-20 / +75 °COperating

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

CPU	NVIDIA® Jetson Orin™ NX — 8-core Arm Cortex-A78AE, up to 2.0 GHz
GPU	1024 CUDA cores + 32 Tensor Cores (4th generation)
AI performance	Up to 157 TOPS (INT8) with the 16 GB module / up to 117 TOPS with the 8 GB module
Memory	8 GB or 16 GB LPDDR5
Video encode	1× 4K60 / 3× 4K30 / 6× 1080p60 (H.265)
Video decode	1× 8K30 / 2× 4K60 / 4× 4K30 / 9× 1080p60 (H.265)
Ethernet	2× RJ-45: 1× 1 Gb + 1× 2.5 Gb auto-negotiating; ESD level 3, EFT level 3
USB	2× USB 2.0 Type-A (480 Mbps) · 4× USB 3.1 Gen1 Type-A (5 Gbps)
Display	1× HDMI 2.1, up to 8K@30 Hz
Audio	1× audio out (headphone/line); APE and HDA support; I2S digital audio interface
Storage	1× M.2 Key-M (2280) with PCIe Gen3 x1 for NVMe SSD
Wireless expansion	1× M.2 Key-E (2230) for Wi-Fi 6 / Bluetooth, supporting PCIe, USB and UARTModule sold separately
Cellular	1× Mini PCIe for LTE/5G modem or Wi-Fi, USB 2.0 only — 4G and Wi-Fi are mutually exclusive
Security	Firmware-based TPM 2.0 (fTPM), compliant with the TPM 2.0 standard
Digital I/O	2× isolated GPI (5 V level) · 2× isolated GPO (5 V level)
Serial	1× isolated RS-485, pin-multiplexed with RS-232 (RS-485 by default, RS-232 on request) · 1× isolated CAN-FD
Out-of-band	Optional OOB management module with its own Ethernet, Wi-Fi and 4G interfaces (Mini PCIe, USB only)
SIM	1× Micro-SIM slot
Debug / flashing	1× Console USB (USB-C) · 1× USB flashing port (USB-C)
Buttons	Reset · Flash · Power (with power LED)
Power input	12–24 V wide DC input via 2-pin terminal block
Operating temp.	-20 °C to +75 °C
Storage temp.	-40 °C to +85 °C
Dimensions	Standard: 166 × 107.6 × 52.5 mm · With fan: 166 × 107.6 × 60.1 mm
Cooling	Passive or active; externally speed-controlled fan for enhanced cooling (optional)
Mounting	Bracket mounting, aluminium alloy enclosure
Certification	CE, FCC
