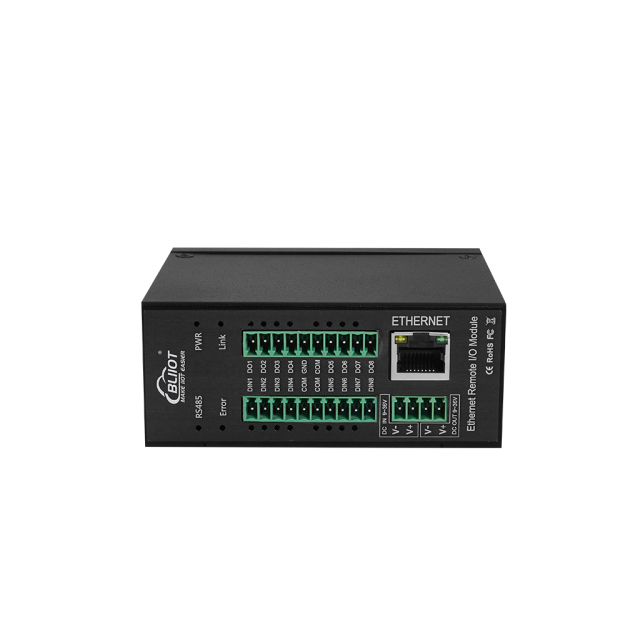

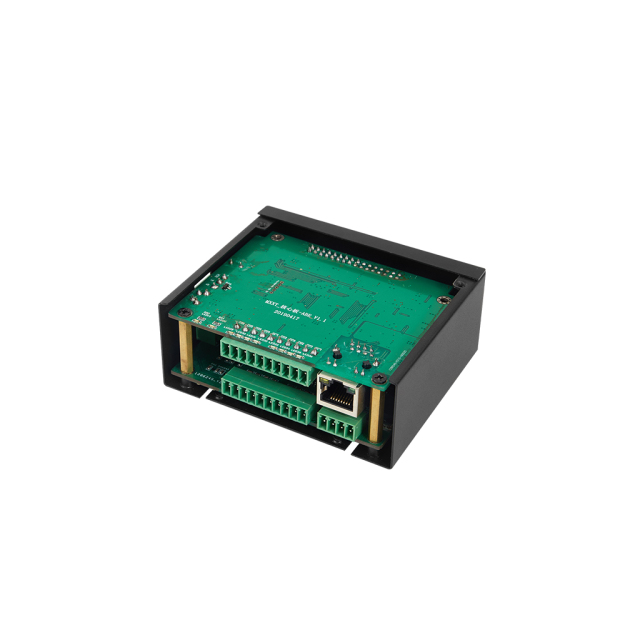

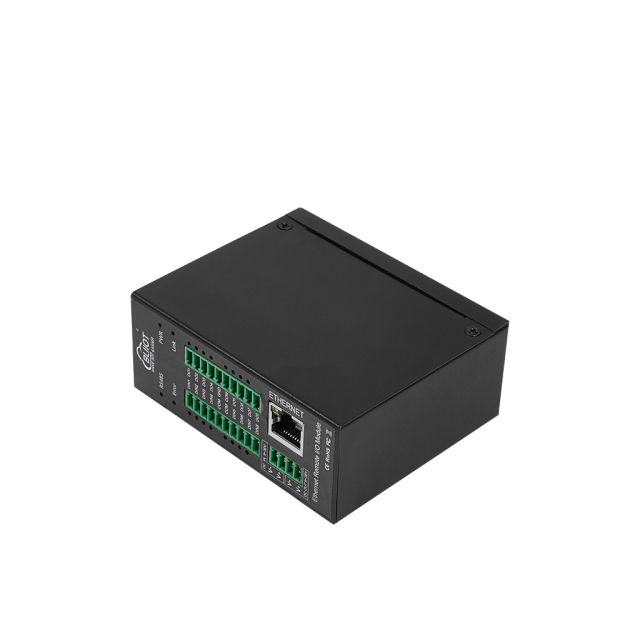

The M410T Industrial Control Module is designed for high-reliability, precision data acquisition in harsh industrial environments. It integrates a 32-bit microprocessor and a 10/100M adaptive Ethernet module, supporting Modbus TCP, Modbus RTU over TCP and MQTT protocols. This Industrial IoT IO module easily integrates with SCADA, OPC servers and automation systems.

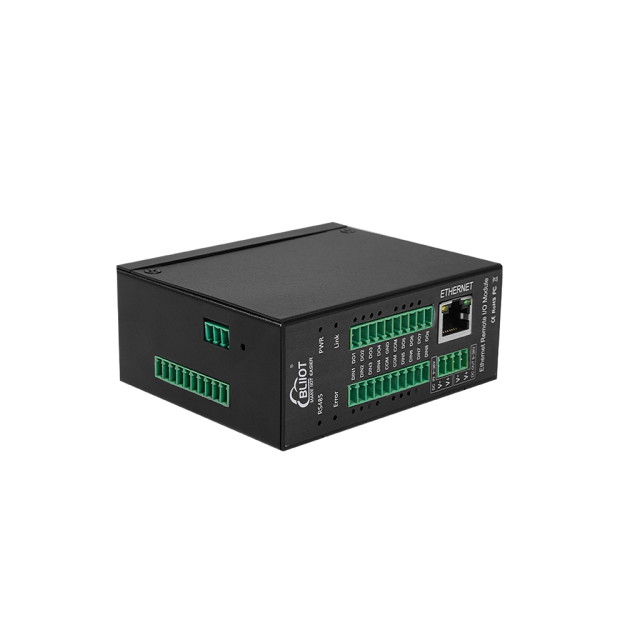

The M410T Ethernet Remote Control Module offers 16 digital input channels, supporting both dry and wet contact types. It includes an RS485 interface for cascading Modbus I/O devices. The register mapping function ensures fast data collection, optimizing real-time performance.
Operating with a 9~36VDC input and providing a 9~36VDC power output for external devices, the M410T also offers surge, ESD and reverse power protection. Its robust IP30 metal housing allows for DIN rail or wall mounting, ensuring reliable operation in industrial automation and control systems.
Typical Application
|
Item |
Parameter |
Description |
|
Power |
Input voltage |
Models without AO: 9~36VDC Models with AO: 24~36VDC |
|
Power consumption |
Typical standby power consumption: ≤ 2W |
|
|
Power Output |
1 channel Output voltage: 9～36V DC(Equal to the input voltage) Output current: 1500mA@12V(MAX) |
|
|
Ethernet |
Specification |
1 x RJ45, 10M/100Mbps |
|
Protocol |
Modbus RTU, Modbus TCP, MQTT |
|
|
Serial port |
Quantity |
1 x RS485 |
|
Baud Rate |
2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000 |
|
|
Protocol |
Modbus RTU(slave), Modbus RTU(master) |
|
|
Digital output |
Quantity |
16 channels(Max) |
|
Type |
SINK |
|
|
Software |
Protocols |
IPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT |
|
Protocol conversion |
Support Modbus TCP and RTU protocol conversion Support Modbus RTU to MQTT and Modbus TCP to MQTT |
|
|
Environment |
Working |
-20～70°C, 5～95%RH |
|
Storage |
-40～85°C, 5～95%RH |
|
|
Others |
Case |
Metal |
|
Dimension |
82mm×40mm×100mm |
|
|
Protection grade |
IP30 |
|
|
Net Weight |
350g |
|
|
Installation |
DIN rail mounted, Wall-mounted |
