Name: 2-channel RTD PT100 Input Module
Brand: Beilai Tech. Co., Ltd.
SKU: Y51
Availability: InStock
Rating: 5 (1 reviews)

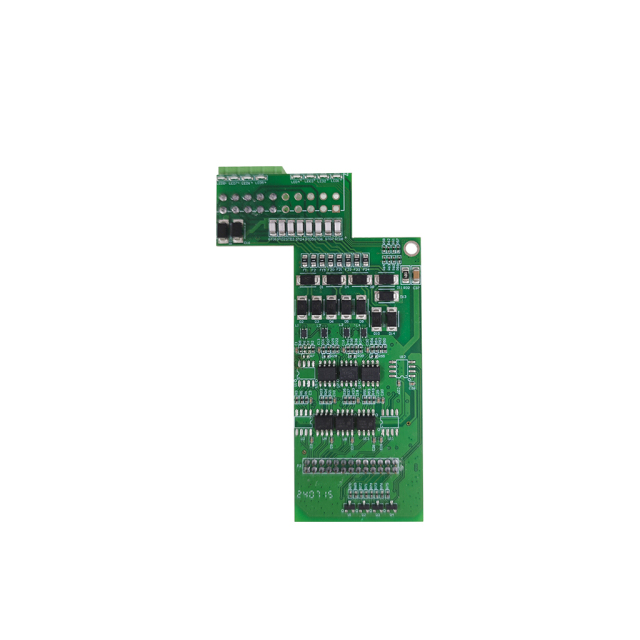

2-channel RTD PT100 Input Module

No.Y51

The Y51 2-channel RTD PT100 input module is one of the optional Y series I/O modules in the IOy series and ARMxy series products.

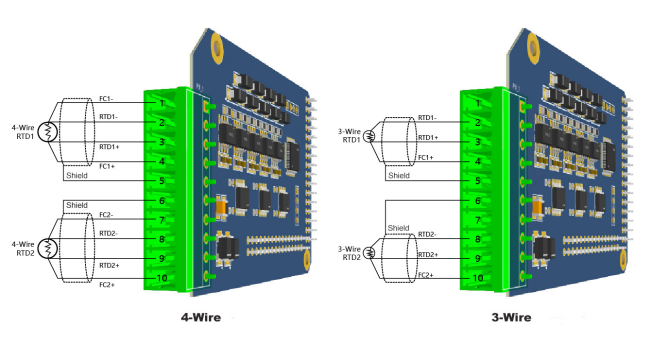

This module features 2 input channels, namely RTD1 and RTD2, which can connect to 3-wire PT100 sensors.

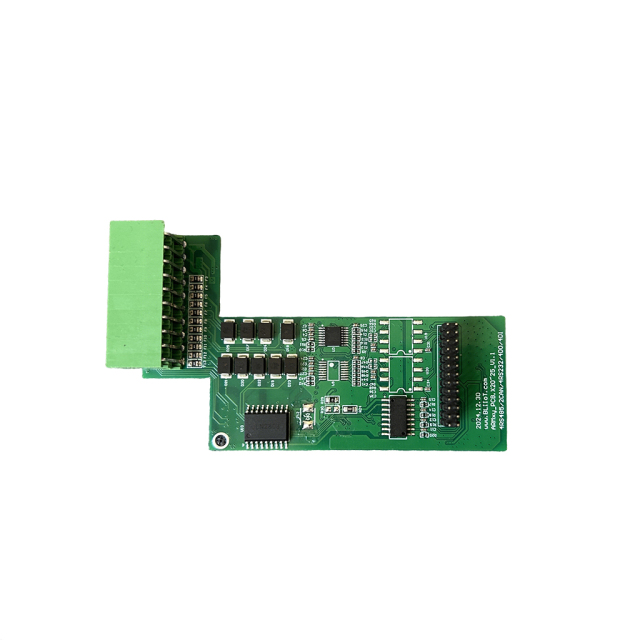

The input signal from each channel is electrically isolated, converted into a digital signal, and transmitted with 15-bit resolution.

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

Name	Parameter	Description
Power Supply	Operating Voltage	Internal Voltage
Power Supply	Power Consumption	0.168W
RTD Input	Channels	2 channels
	Input Type	3-wire, PT100
	Measurement Range	PT100 (-200~850°C)
	Resolution	15Bit
	Accuracy	±1°C (within 20m using AWG16 shielded cable)
	Conversion Rate	400 ms
Certifications	EMC	IEC 61000-4-2 (ESD) Level 3
		IEC 61000-4-4 (EFT) Level 3
		IEC 61000-4-5 (Surge)Level 3

No.	Name	Model	Channel	Signal Type
1	2-Channel 3-Wire PT100 Input Module	Y51	2	3-Wire PT100
2	2-Channel 3-Wire PT1000 Input Module	Y52	2	3-Wire PT1000
3	2-Channel 4-Wire PT100 Input Module	Y53	2	4-Wire PT100
4	2-Channel 4-Wire PT1000 Input Module	Y54	2	4-Wire PT1000
