4-channel Relay Output Module

No.Y24
The Y24 relay output module is one of the Y series I/O modules for IOy series and ARMxy series products.
The relay output module features 4 relay output channels, DO1 to DO4, designed for controlling automation equipment. All 4 channels are normally open outputs.
Request Pricing Download
Description
The Y24 relay output module is one of the Y series I/O modules for IOy series and ARMxy series products.
The relay output module features 4 relay output channels, DO1 to DO4, designed for controlling automation equipment. All 4 channels are normally open outputs.


Technical Specifications

Name

Parameter

Description

Power Supply

Operating Voltage

Internal Voltage

Power Consumption

0.85W

Relay Output

Channel

4 Channels

Output Type

Relay Output

Maximum switching voltage

250VAC/30VDC

Maximum switching current

2A

Switching Power

30W

Isolation Protection

2KVrms

Certifications

EMC

IEC 61000-4-2 (ESD) Level 3

IEC 61000-4-4 (EFT) Level 3

IEC 61000-4-5 (Surge)Level 3

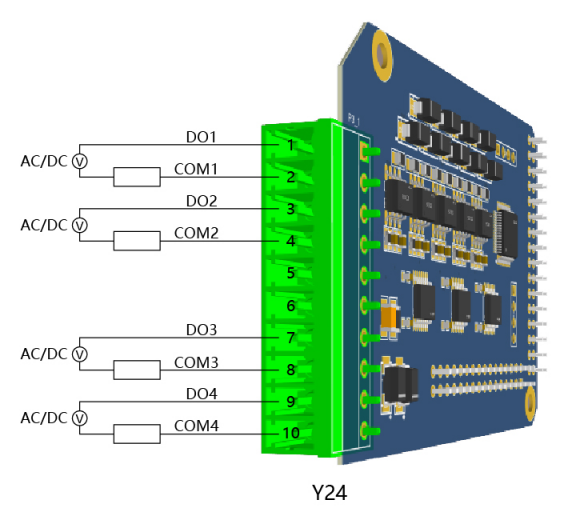

Connection Example
