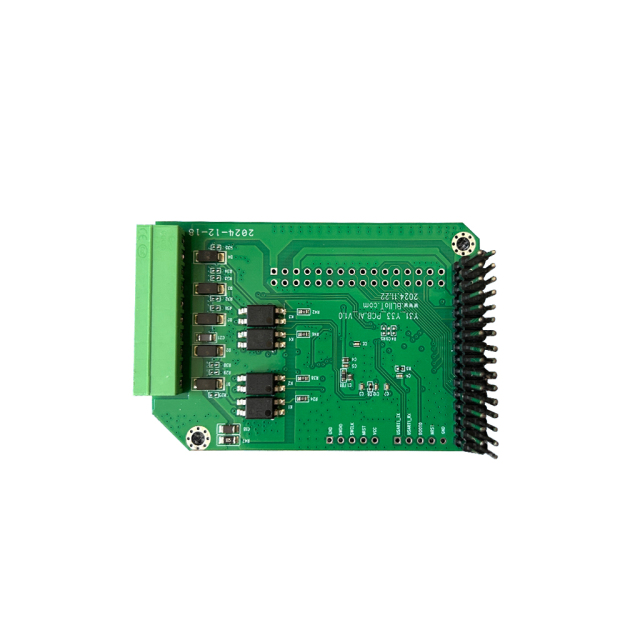

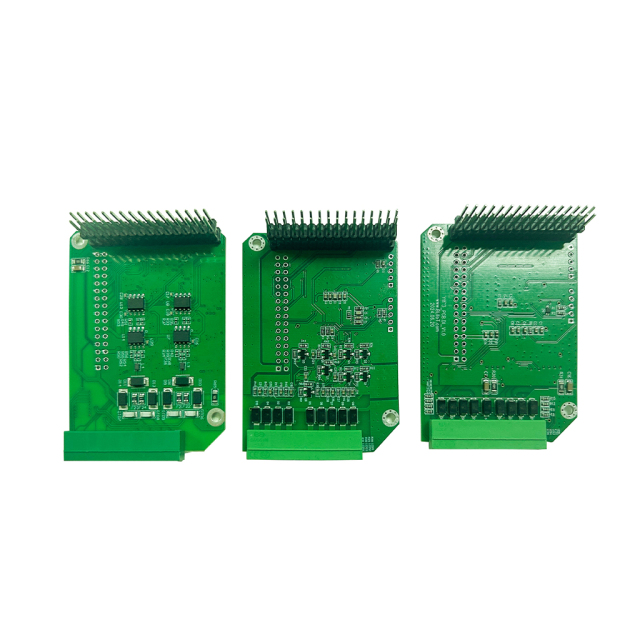

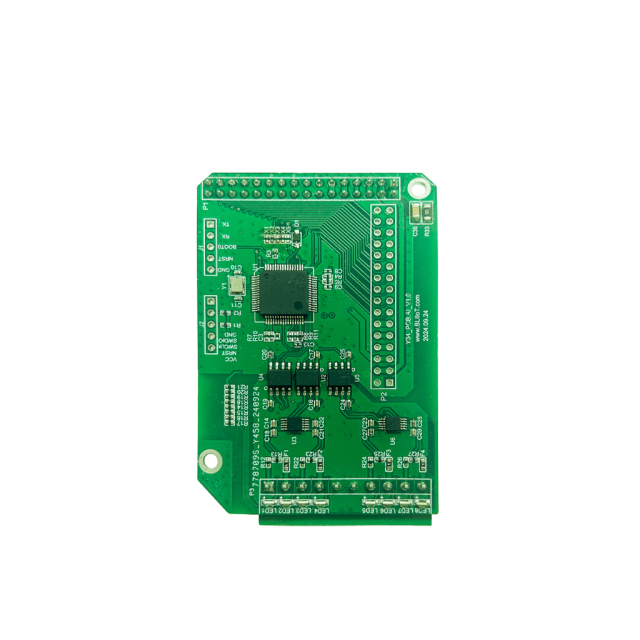

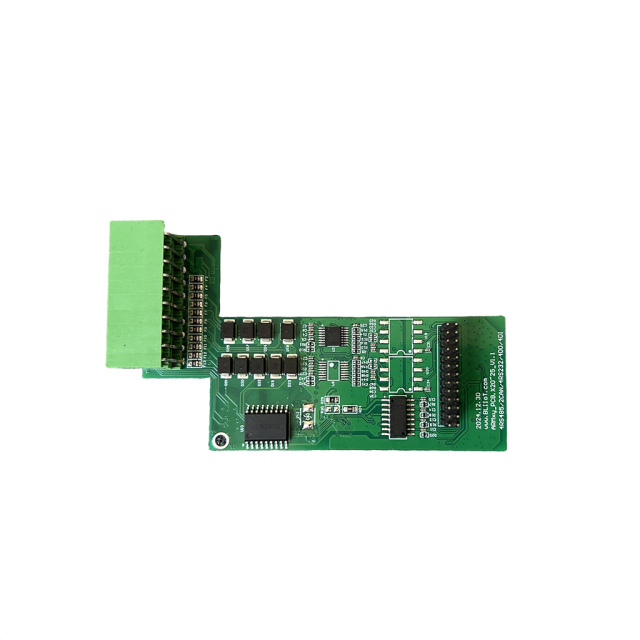

The thermocouple input module is one of the Y series I/O modules for IOy series and ARMxy series products.
This module features 4 input channels: TC1, TC2, TC3, and TC4, supporting the acquisition of J, K, E, T, S, R, B, and N-type thermocouple signals.
The input signals for each channel are electrically isolated, converted into digital signals, and transmitted with 16-bit resolution.
The thermocouple input module is one of the Y series I/O modules for IOy series and ARMxy series products.
This module features 4 input channels: TC1, TC2, TC3, and TC4, supporting the acquisition of J, K, E, T, S, R, B, and N-type thermocouple signals.
The input signals for each channel are electrically isolated, converted into digital signals, and transmitted with 16-bit resolution.
Technical Specifications
|
Name |
Parameter |
Description |
|
|
Power Supply |
Operating Voltage |
Internal Voltage |
|
|
Power Consumption |
0.192W |
||
|
Thermocouple Input |
Channels |
4CH |
|
|
Sensor Type |
J/K/E/T/S/R/B/N type thermocouple |
||
|
Resolution |
16Bit |
||
|
Accuracy |
±0.5% @25℃ |
||
|
Conversion Rate |
400 ms |
||
|
Measurement range: |
J |
-210~1200℃ |
|
|
K |
-200~1372℃ |
||
|
E |
-200~1000℃ |
||
|
T |
-200~400℃ |
||
|
S |
-50~1768℃ |
||
|
R |
-50~1768℃ |
||
|
B |
250~1820℃ |
||
|
N |
-200~1300℃ |
||
|
Certifications |
EMC |
IEC 61000-4-2 (ESD) Level 3 |
|
|
IEC 61000-4-4 (EFT) Level 3 |
|||
|
IEC 61000-4-5 (Surge)Level 3 |
|||

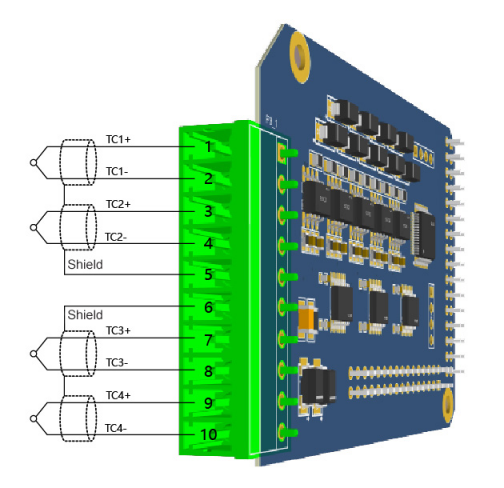

Connection Example
