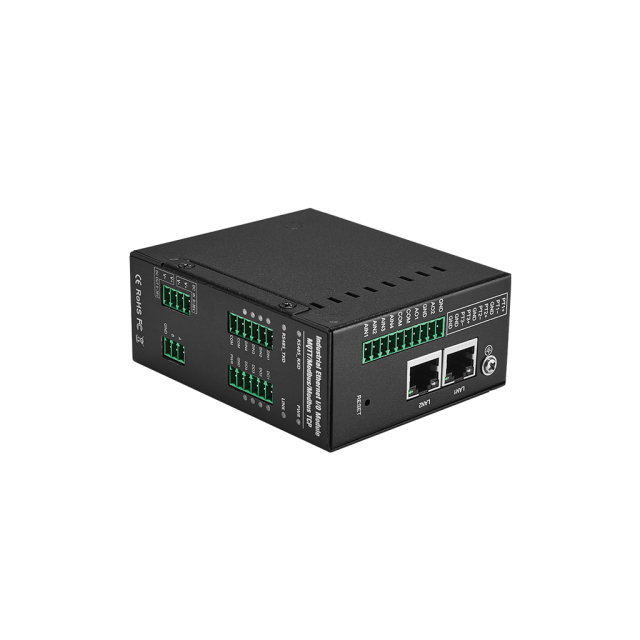

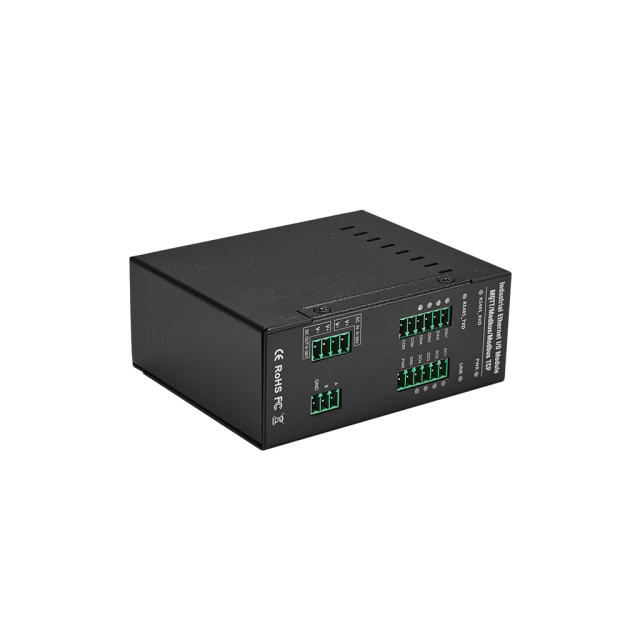

The M230E Industrial Ethernet IO Module is an industrial-grade data acquisition module designed for robust performance in demanding industrial environments. It features 8 channels of Analog Input (AI) with 12-bit resolution, supporting various signal types including 0~5V, 0~10V, 4~20mA and 0~20mA. The module is equipped with a 32-bit high-performance microprocessor and dual 10/100M adaptive Ethernet interfaces, ensuring reliable communication through Modbus TCP, Modbus RTU over TCP and MQTT protocols.
With a wide operating voltage range of 9~36VDC and built-in surge, ESD and reverse power protection, the M230E is designed for stability in harsh conditions. It also includes a power output port (9~36VDC) to supply external devices, simplifying field wiring. The module supports register mapping for efficient data collection from slave devices, making it ideal for integration with SCADA systems, PLCs and other industrial automation platforms.

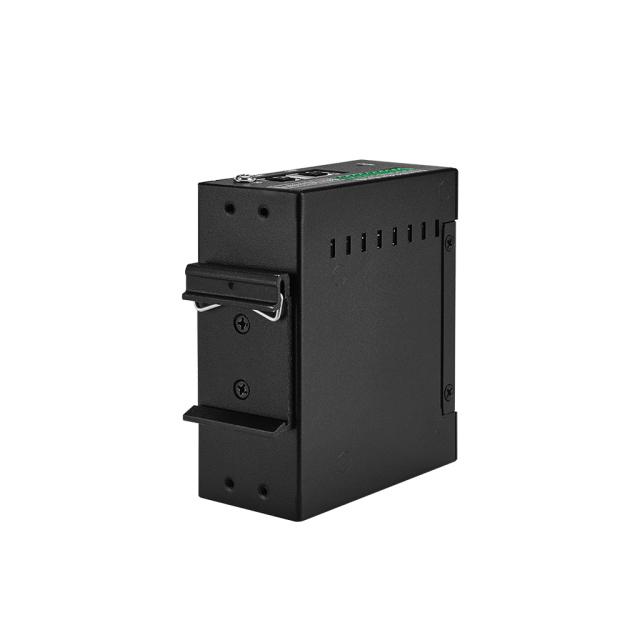

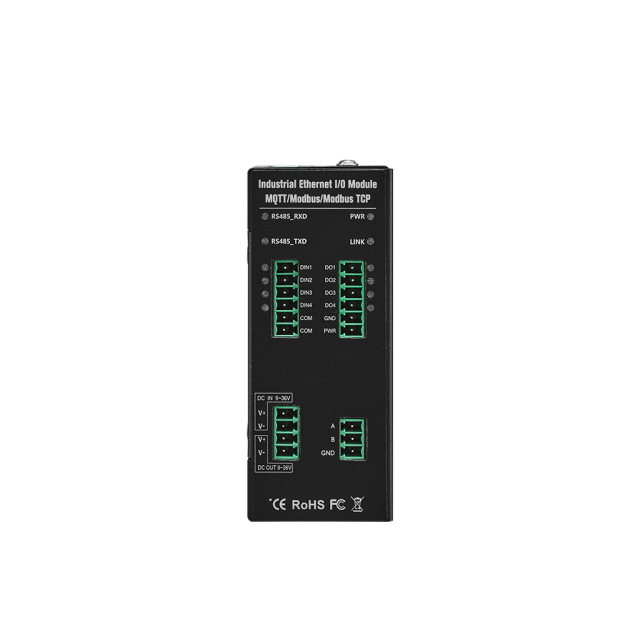

The M230E is housed in a compact metal enclosure with IP30 protection, suitable for DIN rail or wall mounting. Its industrial-grade design ensures long-term reliability, making it a versatile solution for applications such as smart grids, environmental monitoring and industrial automation.

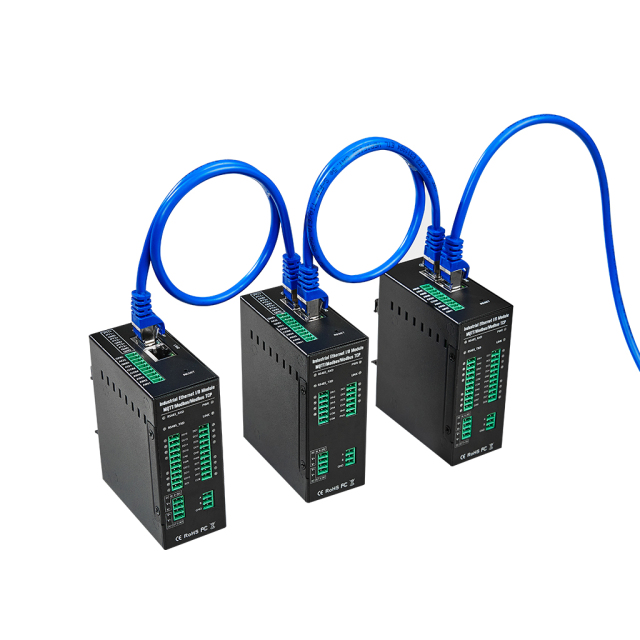

Typical Application
|
Item |
Parameter |
Description |
|
Power |
Input voltage |
Models without AO: 9~36VDC Models with AO: 24~36VDC |
|
Power consumption |
Typical standby power consumption: ≤ 2W |
|
|
Power Output |
1 channel Output voltage: 9～36V DC(Equal to the input voltage) Output current: 1500mA@12V(MAX) |
|
|
Ethernet |
Specification |
2 x RJ45, 10M/100Mbps |
|
Protocol |
Modbus RTU, Modbus TCP, MQTT |
|
|
Serial port |
Quantity |
1 x RS485 |
|
Baud Rate |
2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000 |
|
|
Protocol |
Modbus RTU(slave), Modbus RTU(master) |
|
|
Analog input |
Quantity |
4 channels |
|
Method |
Differential input |
|
|
Type |
4-20mA, 0-20mA, 0-5V, 0-10V |
|
|
Software |
Protocols |
IPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT |
|
Protocol conversion |
Support Modbus TCP and RTU protocol conversion Support Modbus RTU to MQTT and Modbus TCP to MQTT |
|
|
Environment |
Working |
-20～70°C, 5～95%RH |
|
Storage |
-40～85°C, 5～95%RH |
|
|
Others |
Case |
Metal |
|
Dimension |
82mm×40mm×100mm |
|
|
Protection grade |
IP30 |
|
|
Net Weight |
350g |
|
|
Installation |
DIN rail mounted, Wall-mounted |
