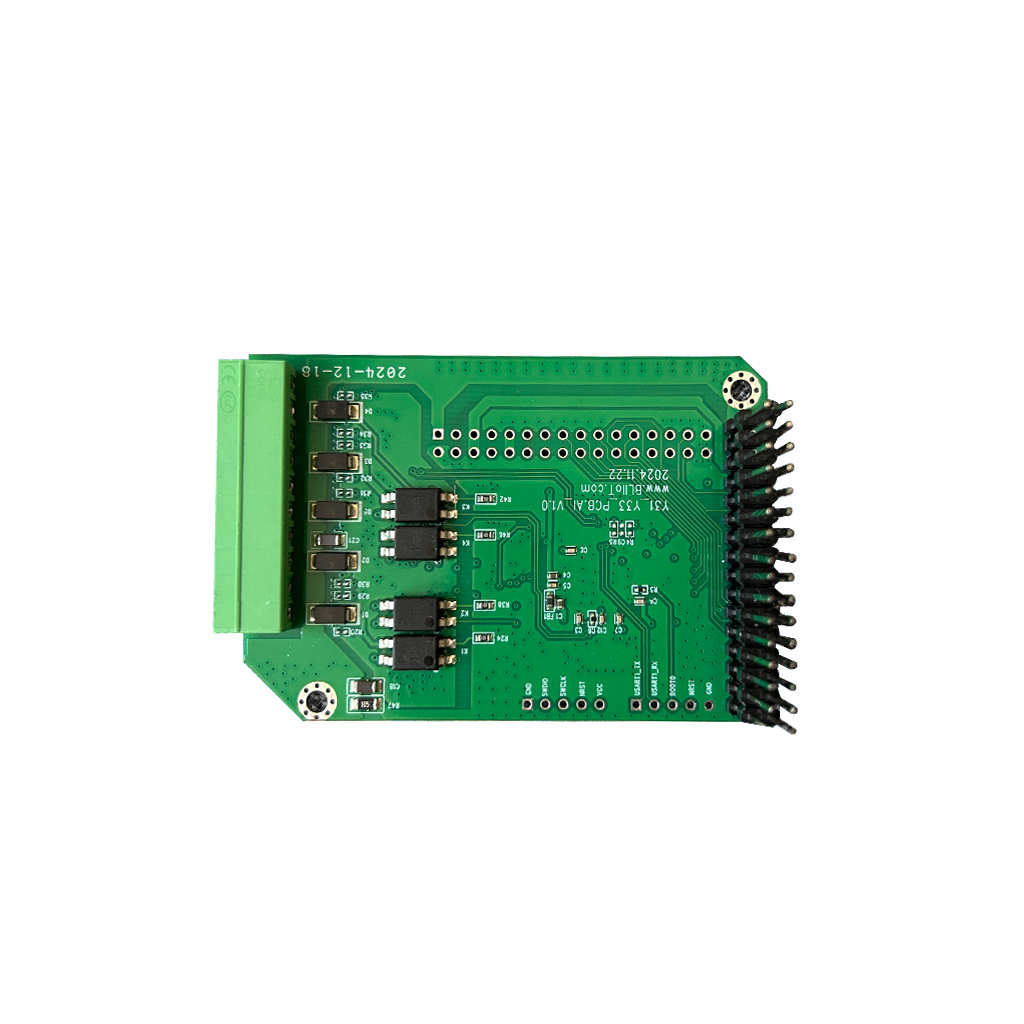

The Y33 analog input modules are among the Y series I/O modules for IOy series and ARMxy series products.

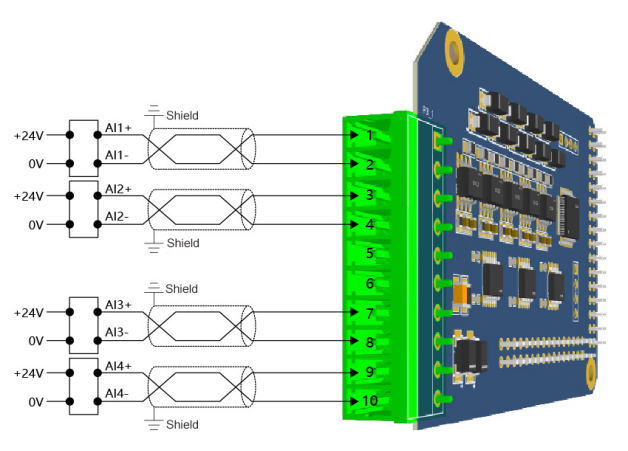

This module has 4 input channels, namely AI1, AI2, AI3, and AI4, which can receive 0-5V / 0-10V voltage control signals from field devices (such as 4-wire voltage-type sensors).
|
Name |
Parameter |
Description |
|
Power Supply |
Operating Voltage |
Internal Voltage |
|
Power Consumption |
0.25W |
|
|
Analog Input |
Channels |
4 channels |
|
Input Mode |
Single-ended input |
|
|
Input Type |
0-5V / 0-10V (4-wire) |
|
|
Resolution |
16Bit |
|
|
Accuracy |
±0.1 % FSR @ 25 ℃ |
|
|
Sampling Rate |
300 ms |
|
|
Input Impedance |
≥249Ω |
|
|
Certifications |
EMC |
IEC 61000-4-2 (ESD) Level 3 |
|
IEC 61000-4-4 (EFT) Level 3 |
||
|
IEC 61000-4-5 (Surge)Level 3 |
|
No. |
Name |
Model |
Channel |
Signal Type |
|
1 |
4-Channel Analog Input Module |
Y31 |
4 |
0…20mA / 4…20mA |
|
2 |
4-Channel Analog Input Module |
Y33 |
4 |
0-5V/0-10V |
