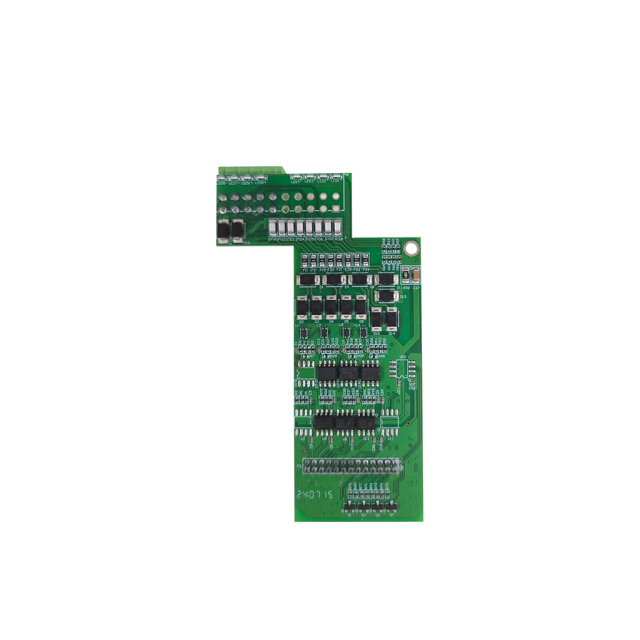

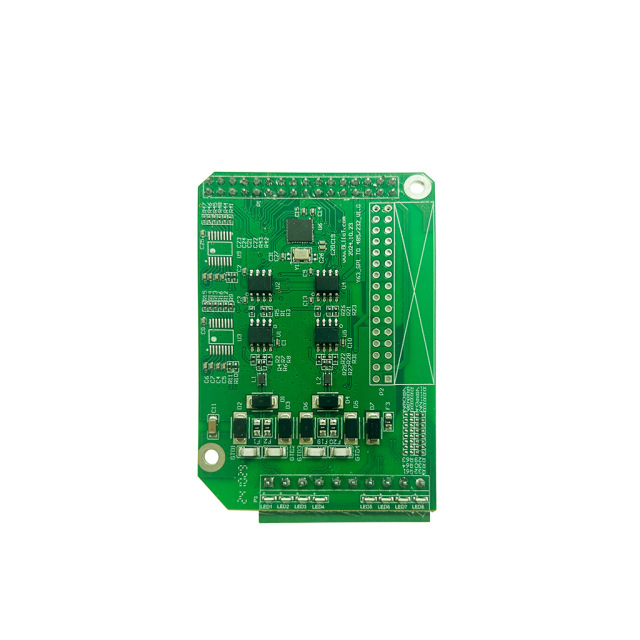

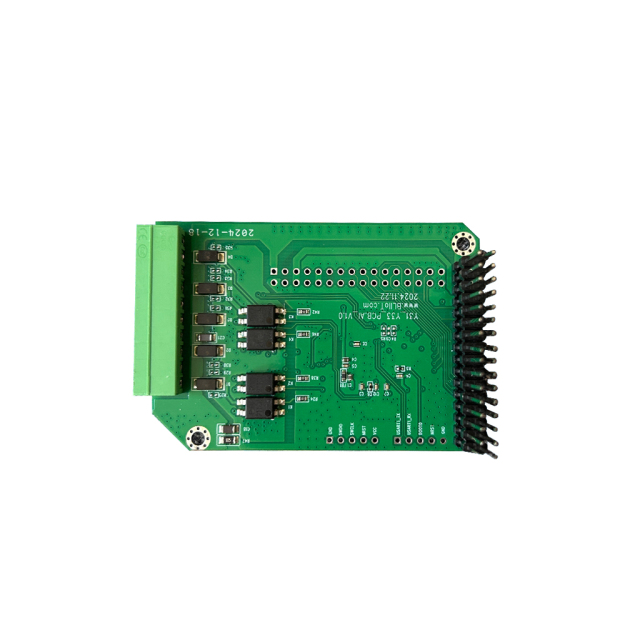

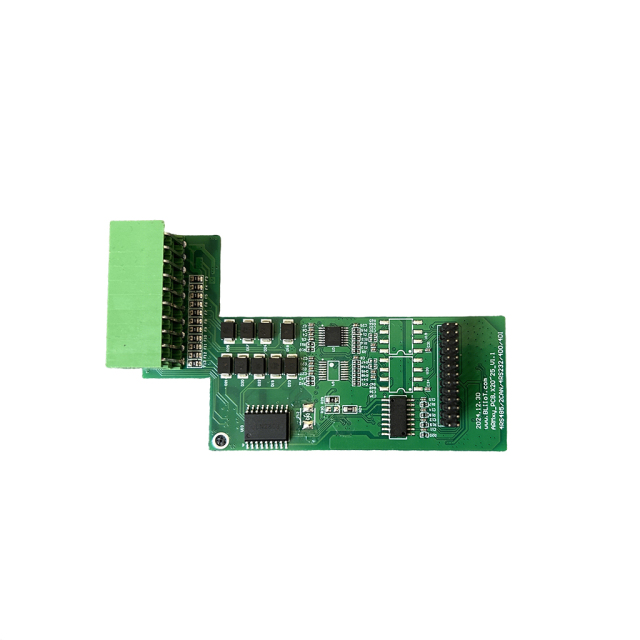

The Y96 pulse output and counting module is one of the Y series I/O modules for IOy series and ARMxy series products.
The pulse output and counting module features 4 pulse outputs and 4 counting channels, namely PWM1…PWM4 and C1…C4. The pulse output supports a maximum frequency of 20kHz, while the pulse counting can handle up to 50kHz. It is widely used in industrial automation and control systems.
To enhance the system's reliability and stability, the pulse output and counting module employs effective isolation technology, which prevents interference between different signals, thereby protecting the integrity of both the equipment and the data.
Technical Specifications
|
Name |
Parameter |
Description |
|
Power Supply |
Operating Voltage |
Internal Voltage |
|
Power Consumption |
0.48W |
|
|
Pulse Output |
Channels |
4CH |
|
Output Delay |
＜1ms |
|
|
Duty Cycle |
0~100 duty cycle range allows for customizable settings. |
|
|
Maximum switching frequency |
20KHz |
|
|
Isolation Protection |
2KVrms |
|
|
Pulse Counting |
Channels |
1 high-speed counting channel + 3 low-speed counting channels |
|
Maximum switching frequency |
High-speed: up to 50kHz, Low-speed: up to 5kHz |
|
|
Counting Range |
32-bit unsigned |
|
|
Isolation Protection |
2KVrms |
|
|
Certifications |
EMC |
IEC 61000-4-2 (ESD) Level 3 |
|
IEC 61000-4-4 (EFT) Level 3 |
||
|
IEC 61000-4-5 (Surge)Level 3 |

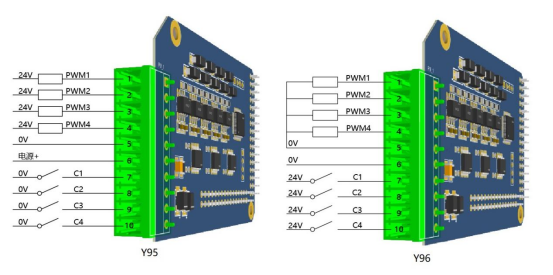

Model Selection
|
No. |
Name |
Model |
Channel |
Signal Type |
|
1 |
Pulse Output and Counting Module |
Y95 |
4 |
NPN(Low level effective) |
|
2 |
Pulse Output and Counting Module |
Y96 |
4 |
PNP(High level effective) |
