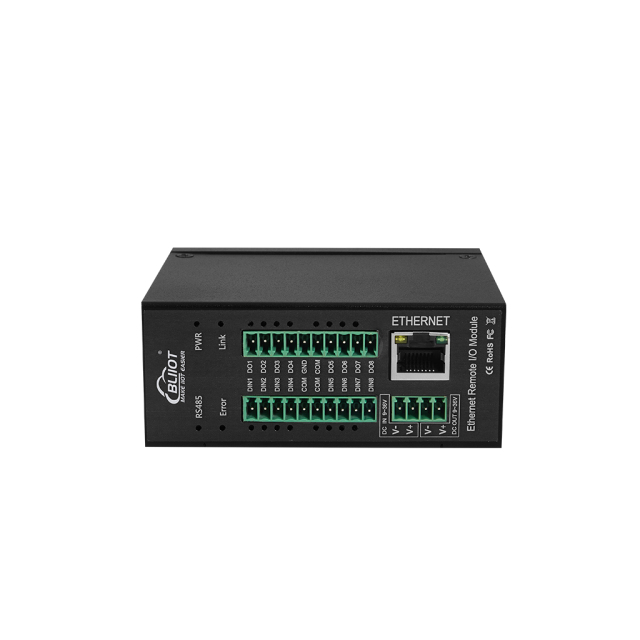

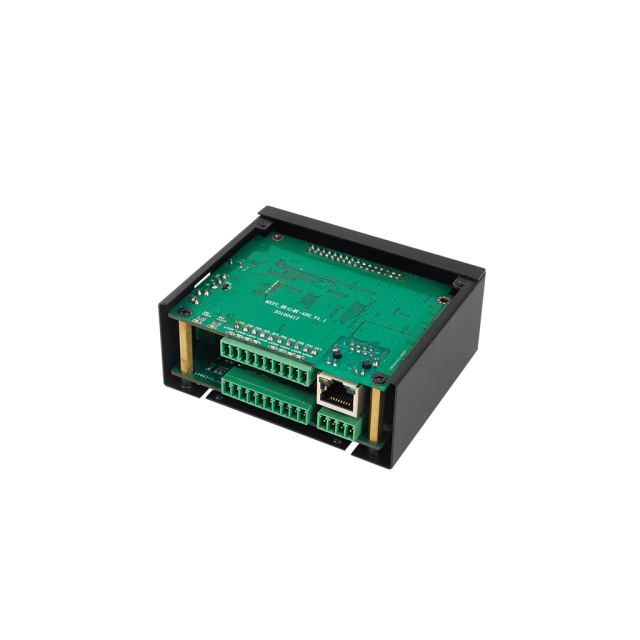

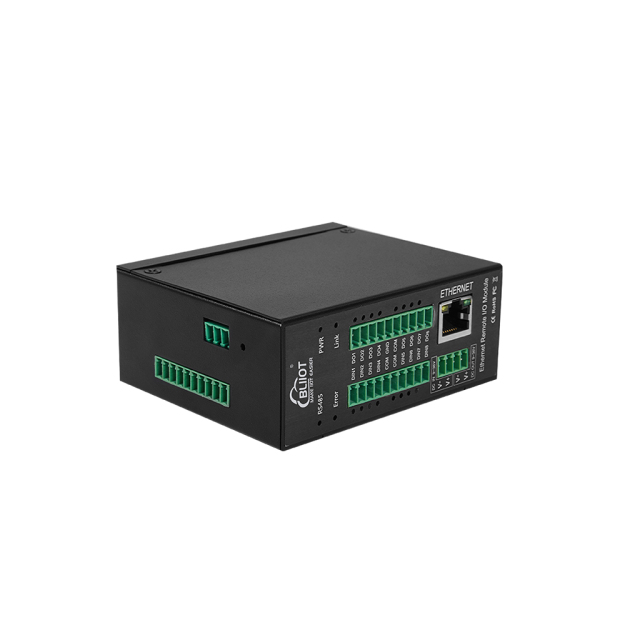

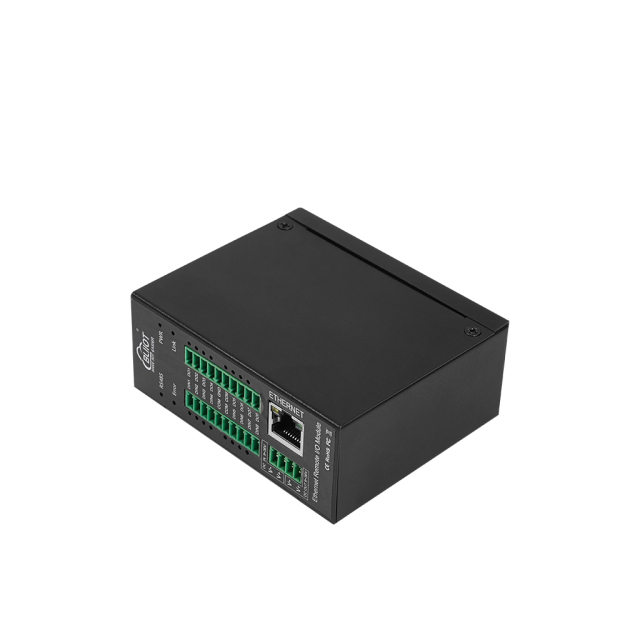

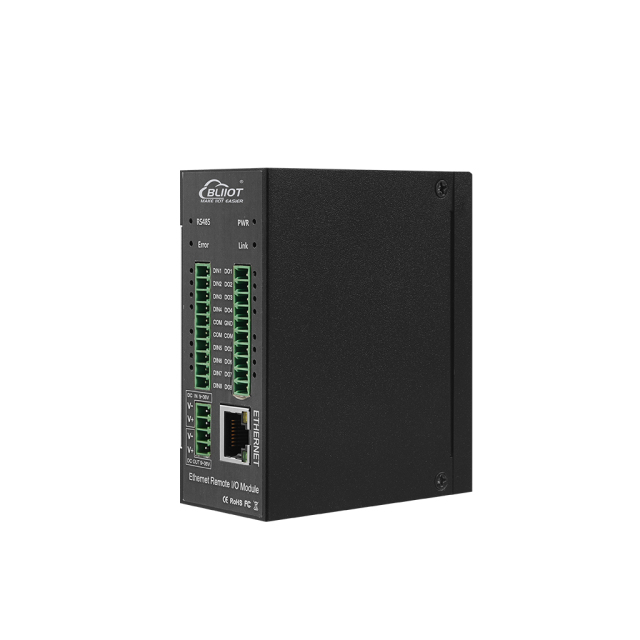

The M220T Ethernet Remote I/O Module is an industrial-grade Digital Output Module designed for high-precision data acquisition in harsh industrial environments. It integrates a 32-bit high-performance microprocessor and an embedded 10/100M adaptive Ethernet interface, supporting Modbus TCP, Modbus RTU over TCP and MQTT protocols. This module is widely used in industrial automation systems and can be easily integrated into SCADA, OPC servers and other automation systems.
The M220T provides 4-channel Digital Output capability, where DO1 supports high-speed pulse output (10Hz ~ 300KHz). The module’s built-in register mapping function ensures quick data collection, meeting the real-time demands of industrial applications. The default output type is SINK. As a Digital Output Module, it can be seamlessly integrated into industrial Ethernet digital output module setups.
Operating within a wide voltage range of 9~36VDC, the M220T also provides a 9~36VDC power output for external devices. Designed with high protection industrial I/O module features, it provides surge, ESD and reverse power protection, ensuring reliable operation in demanding environments.
Typical Application
|
Item |
Parameter |
Description |
|
Power |
Input voltage |
Models without AO: 9~36VDC Models with AO: 24~36VDC |
|
Power consumption |
Typical standby power consumption: ≤ 2W |
|
|
Power Output |
1 channel Output voltage: 9～36V DC(Equal to the input voltage) Output current: 1500mA@12V(MAX) |
|
|
Ethernet |
Specification |
1 x RJ45, 10M/100Mbps |
|
Protocol |
Modbus RTU, Modbus TCP, MQTT |
|
|
Serial port |
Quantity |
1 x RS485 |
|
Baud Rate |
2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000 |
|
|
Protocol |
Modbus RTU(slave), Modbus RTU(master) |
|
|
Digital output |
Quantity |
4 channels |
|
Type |
SINK |
|
|
Software |
Protocols |
IPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT |
|
Protocol conversion |
Support Modbus TCP and RTU protocol conversion Support Modbus RTU to MQTT and Modbus TCP to MQTT |
|
|
Environment |
Working |
-20～70°C, 5～95%RH |
|
Storage |
-40～85°C, 5～95%RH |
|
|
Others |
Case |
Metal |
|
Dimension |
82mm×40mm×100mm |
|
|
Protection grade |
IP30 |
|
|
Net Weight |
350g |
|
|
Installation |
DIN rail mounted, Wall-mounted |
