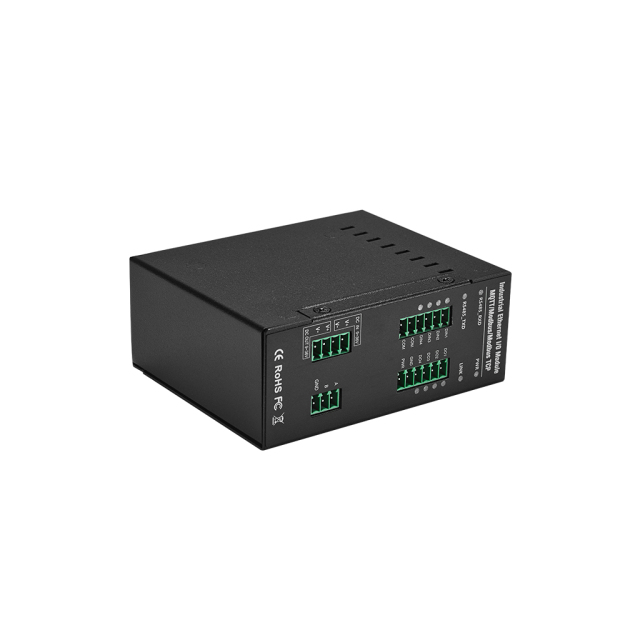

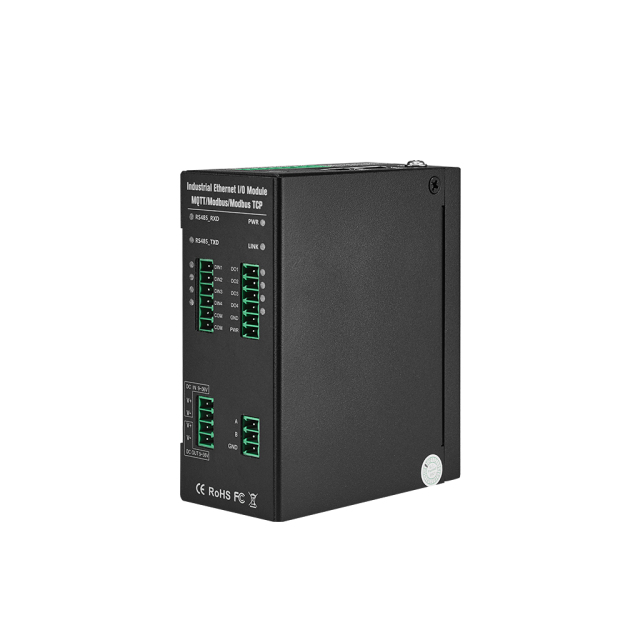

The M120E Rugged Ethernet I/O Module is an industrial-grade Remote IO Module designed for high-precision data acquisition and control. Featuring 4DI, 4AI, 4DO and 2AO, this versatile module supports Modbus TCP, Modbus RTU and MQTT protocols, making it ideal for industrial automation, smart grids and IoT applications.

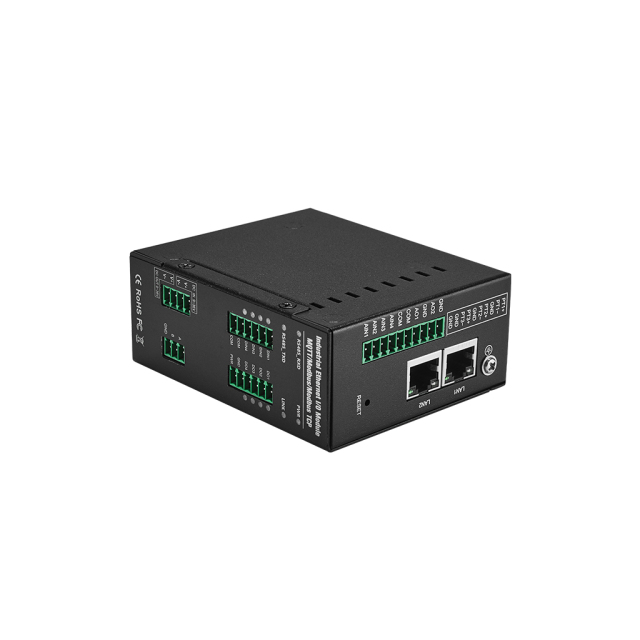

The BLIIoT M120E Rugged Ethernet I/O Module is an industrial-grade data acquisition device built for reliable remote monitoring and control. It features a 32-bit MCU, dual 10/100M Ethernet ports and an RS485 interface, supporting Modbus TCP, Modbus RTU over TCP and MQTT for seamless integration with SCADA, PLCs and IoT platforms.

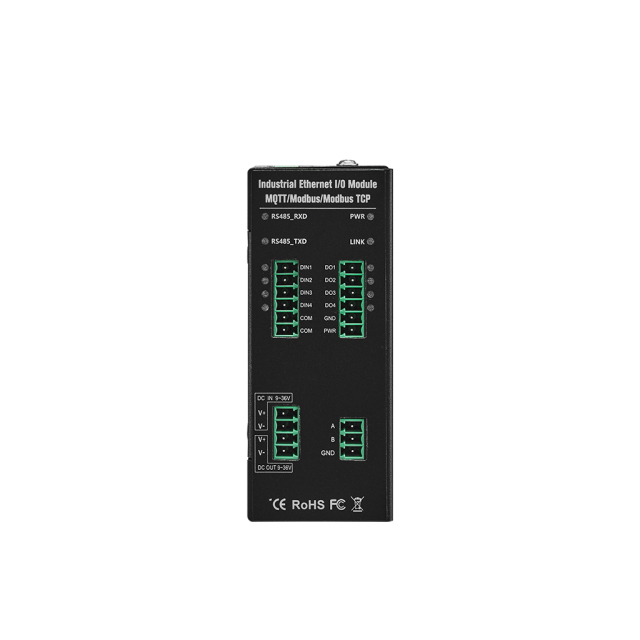

This Industrial Remote I/O Module includes 4 digital inputs, 4 digital outputs, 4 analog inputs and 2 analog outputs. DI supports dry/wet contacts and 700kHz high-speed pulse counting, while DO features sink output with one channel capable of 300kHz pulse generation. AI supports 0-5V, 0-10V, 0-20mA and 4-20mA signals with 12-bit resolution and AO delivers 0-10VDC output with a 1000mA max load.
The M120E supports register mapping for cascading Modbus RTU devices via RS485, ensuring fast TCP polling. It operates on 9-36VDC with reverse polarity protection and provides an additional DC output (up to 1500mA) for external sensors. With a metal enclosure, IP30 rating and DIN rail/wall-mounting options, it’s ideal for industrial automation, smart agriculture and energy monitoring applications.

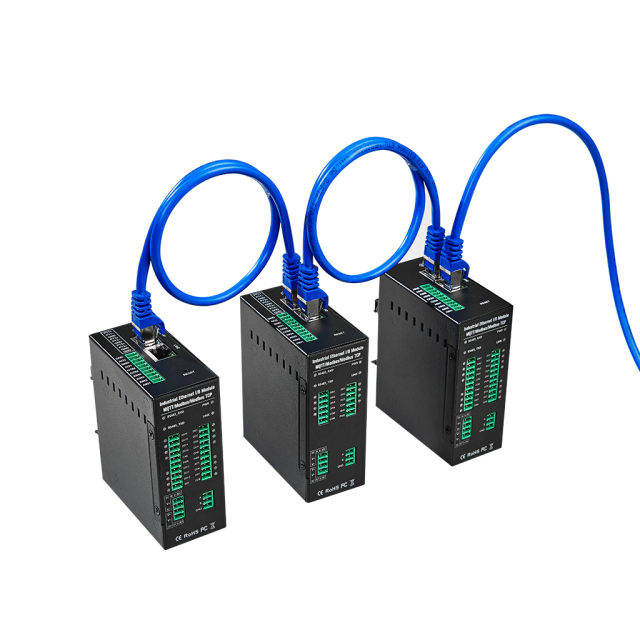

Typical Application
|
Item |
Parameter |
Description |
|
|
Input voltage |
Models without AO: 9~36VDC Models with AO: 24~36VDC |
|
Power consumption |
Typical standby power consumption: ≤ 2W |
|
|
Power Output |
1 channel Output voltage: 9～36V DC(Equal to the input voltage) Output current: 1500mA@12V(MAX) |
|
|
Ethernet |
Specification |
2 x RJ45, 10M/100Mbps |
|
Protocol |
Modbus RTU, Modbus TCP, MQTT |
|
|
Serial port |
Quantity |
1 x RS485 |
|
Baud Rate |
2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000 |
|
|
Protocol |
Modbus RTU(slave), Modbus RTU(master) |
|
|
Digital input |
Quantity |
4 channels |
|
Type |
Support Wet contact(NPN, PNP) and Dry contact. Default: Wet contact |
|
|
Digital output |
Quantity |
4 channels |
|
Type |
SINK |
|
|
Analog input |
Quantity |
4 channels |
|
Method |
Differential input |
|
|
Type |
4-20mA, 0-20mA, 0-5V, 0-10V |
|
|
Analog output |
Quantity |
2 channels |
|
Method |
Single-ended to ground |
|
|
Type |
0~10VDC |
|
|
Software |
Protocols |
IPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT |
|
Protocol conversion |
Support Modbus TCP and RTU protocol conversion Support Modbus RTU to MQTT and Modbus TCP to MQTT |
|
|
Environment |
Working |
-20～70°C, 5～95%RH |
|
Storage |
-40～85°C, 5～95%RH |
|
|
Others |
Case |
Metal |
|
Dimension |
82mm×40mm×100mm |
|
|
Protection grade |
IP30 |
|
|
Net Weight |
350g |
|
|
Installation |

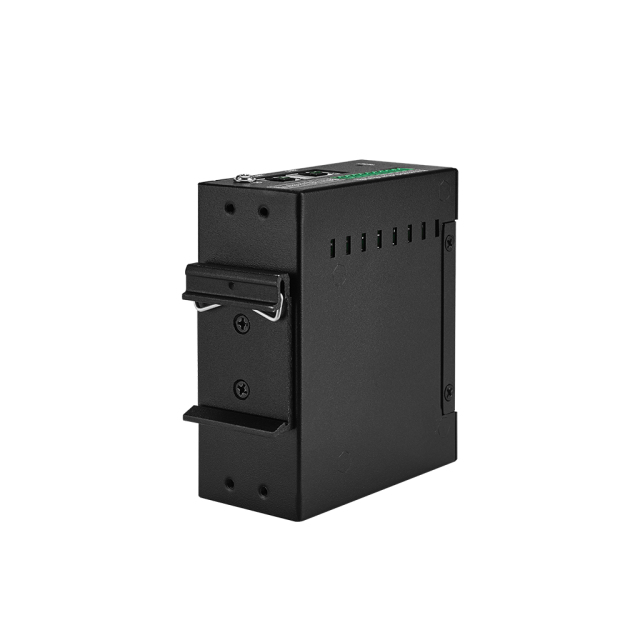

DIN rail mounted, Wall-mounted |
