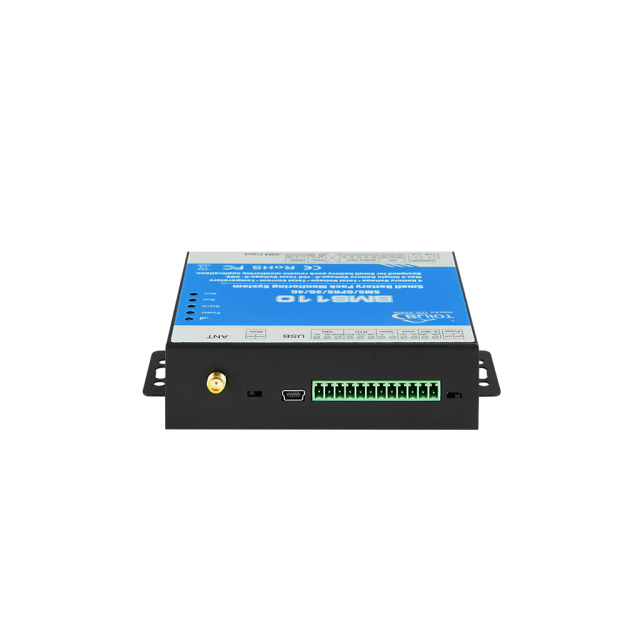

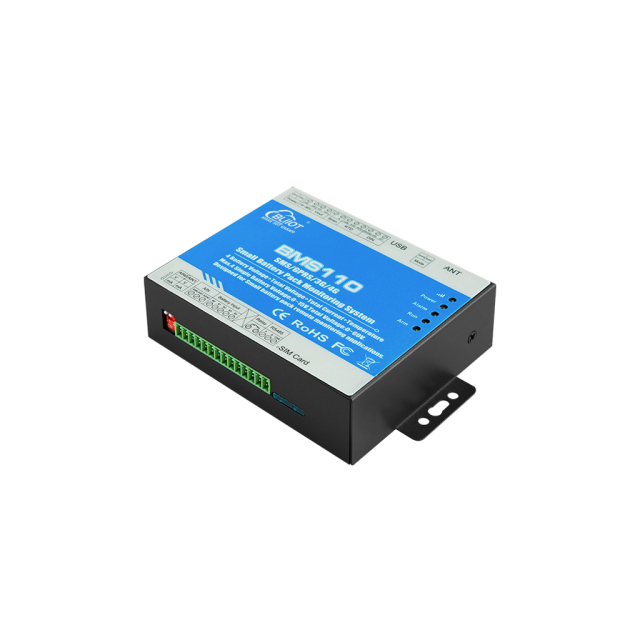

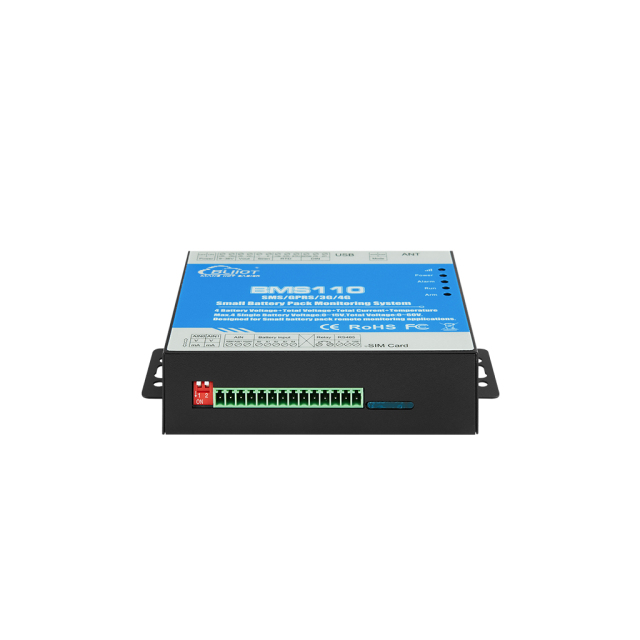

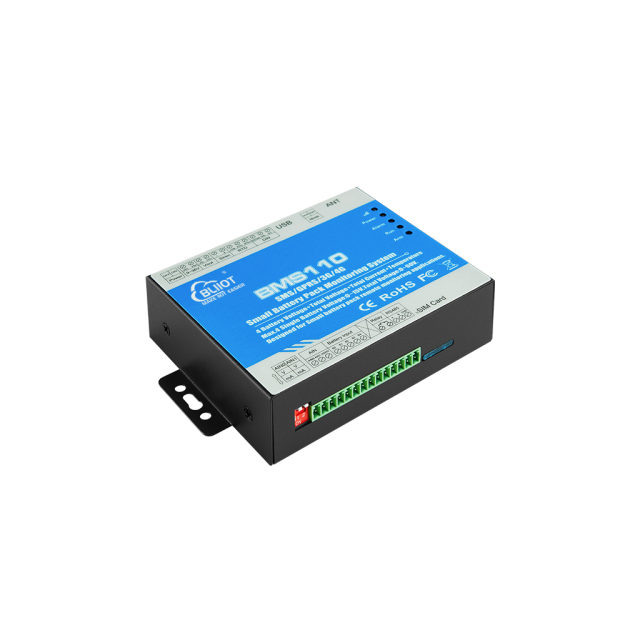

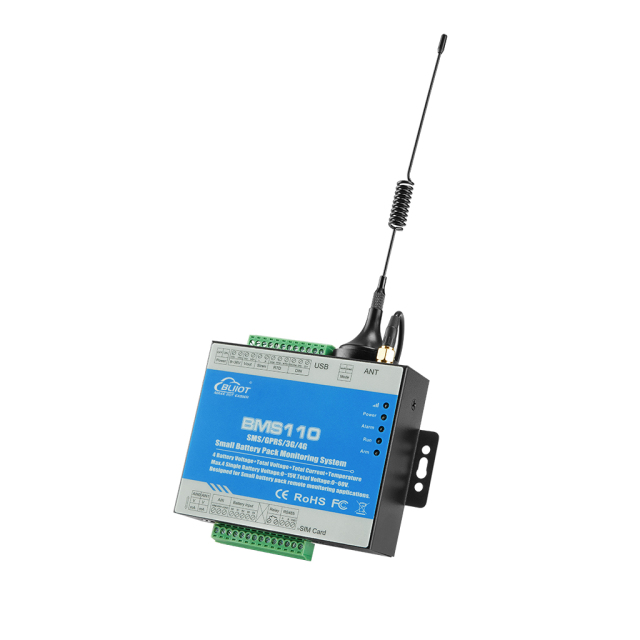

The 4G Battery Monitoring System BMS110 suitable for Solar Power System, Telecom Tower Battery System, Computer Room Backup Power System real-time monitoring applications. When any battery voltage lower or total voltage lower, will alarm and upload data to cloud platform, SMS notification.
The 4G Battery Monitoring System IoT Gateway BMS110 is special designed for remote monitoring onisite battery groups, it can monitoring upto 4CH 0-15V battery voltages, and total upto 60V voltage, current, temperature, diesel oil level, water leakage, burglarproof, and remote control inverters, equipments, etc.
Key Features
Typical Application Scenarios
Technical Specifications
|
Item |
Parameter |
Description |
|
Power |
Power supply voltage |
9～36V DC，Power Requirements：DC12V@1A |
|
Power Consumption |
Standby 80mA@12V |
|
|
Output |
l 1 channel l voltage：9～36V DC（=input voltage） l Current：1500mA@12V(Max) |
|
|
Power Protection |
Anti-reverse connection, ESD air: 15KV, surge: 4KV |
|
|
Battery |
3.7V/900mA |
|
|
USB |
|
1*Mini USB |
|
Digital input |
Qty |
1 |
|
Type |
Dry contact and wet contact(NPN) |
|
|
Dry contact |
l Close: short circuit l Open: open end |
|
|
Wet contact |
l Close：0-0.5VDC l Open：3-30VDC |
|
|
Other |
Support DI0 as a high-speed pulse counter, sampling frequency: 1MHz; Support DI1 as a low-speed pulse counter, and the anti-shake time can be set from 1 to 2000ms; |
|
|
Isolation protection |
2KVrms |
|
|
Digital output |
Qty |
1 |
|
Type |
Relay output, normally open, action output normally closed |
|
|
capacity |
5A@250VAC or 5A@30VDC |
|
|
other |
Support DO can be controlled calling Support custom setting closing and opening time |
|
|
Isolation protection |
2KVrms |
|
|
Siren |
Qty |
1 |
|
Type |
12V DC |
|
|
Max output |
500mA@12V |
|
|
other |
Support custom setting closing and opening time |
|
|
Analog Input |
Qty |
2 Channel |
|
Input way |
Differential input |
|
|
Input type |
4-20mA/0-20mA/0-5V |
|
|
Resolution |
12Bit |
|
|
Accuracy |
±0.1% FSR @ 25 ℃ |
|
|
±0.3% FSR @ -10 and 60 ℃ |
||
|
±0.5% FSR @ -40 and 75 ℃ |
||
|
Sampling frequency |
200ms |
|
|
Input resistance |
>1M ohms |
|
|
RTD |
Qty |
1 Channel |
|
Input way |
2/3 wire |
|
|
Measure range |
-50~300℃ |
|
|
Resolution |
12Bit |
|
|
Accuracy |
l ±0.1% FSR @ 25℃ l ±0.3% FSR @ -10 and 60℃ l ±0.5% FSR @ -40 and 75℃ |
|
|
Sampling frequency |
200ms |
|
|
Battery input |
Qty |
4 |
|
Input way |
Differential input |
|
|
Measure range |
0~15V DC |
|
|
Resolution |
12Bit |
|
|
Accuracy |
±0.2%FSR@25℃ |
|
|
Sampling frequency |
200ms |
|
|
Cellular network |
2G |
GSM/EDGE：850,900,1800,1900MHz |
|
3G |
GSM/EDGE：850,900,1800,1900MHz UMTS：850,900,2100MHz |
|
|
4G（L-E） |
GSM/EDGE：900,1800MHz WCDMA：B1,B5,B8 FDD：B1,B3,B5,B7,B8,B20 TDD：B38,B40,B41 |
|
|
4G（L-AU） |
GSM/EDGE：850,900,1800MHz WCDMA：B1,B2,B5,B8 FDD：B1,B2,B3,B4,B5,B7,B8,B28 TDD：B40 |
|
|
4G（L-A） |
WCDMA：B2,B4,B5 FDD：B2,B4,B12 |
|
|
4G（L-V） |
FDD：B4,B13 |
|
|
4G（L-J） |
WCDMA：B1,B3,B8,B18,B19，B26 FDD：B2,B4,B12 TDD: B41 |
|
|
4G（L-CE） |
GSM/EDGE：900,1800MHz WCDMA：B1,B8 TD-SCDMA：B34,B39 FDD：B1,B3,B8 TDD：B38,B39,B40,B41 |
|
|
SIM/UIM |
Standard drawer interface, support 1.8V/3V SIM/UIM card, built-in 15KV ESD protection |
|
|
Certification |
MTBF |
≥100,000 hours |
|
EMC |
EN 55022: 2006/A1: 2007 (CE &RE) Class B |
|
|
IEC 61000-4-2 (ESD) Level 4 |
||
|
IEC 61000-4-3 (RS) Level 4 |
||
|
IEC 61000-4-4 (EFT) Level 4 |
||
|
IEC 61000-4-5 (Surge)Level 3 |
||
|
IEC 61000-4-6 (CS)Level 4 |
||
|
IEC 61000-4-8 (M/S) Level 4 |
||
|
Other |
CE,FCC,ROHS |
|
|
Environment |
Working temp& humi |
-45～85℃,5～95% RH |
|
Storge temp& humi |
-45～105℃,5～95% RH |
|
|
Others |
Shell |
metal |
|
Size |
105mm×88mm×30mm |
|
|
Protection level |
IP30 |
|
|
Net weight |
250g |
|
|
Installation method |
Wall-mounted, rail-mounted |

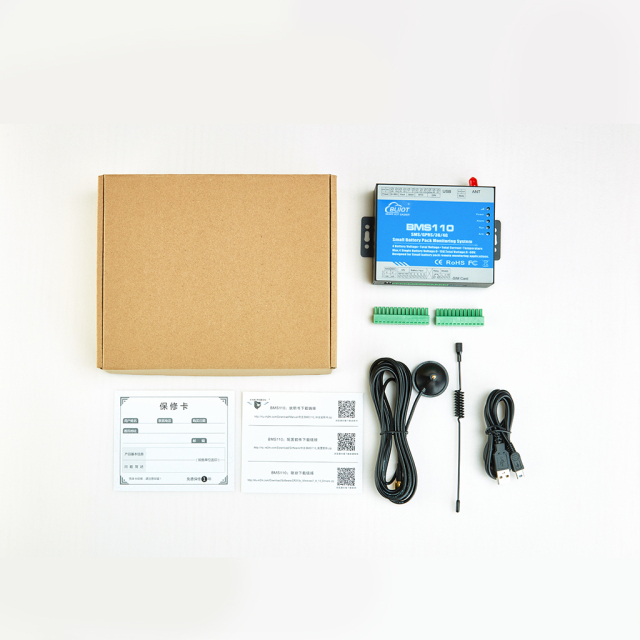

Packaging
Optional:DIN35mm rail mounting bracket
Note: If the above items are missing or damaged, please contact Beilai sales.
