8 Channel Digital Output Module (NPN)

No.Y22

The Y22 digital output module is part of the Y series I/O modules designed for IOy and ARMxy series systems. It provides 8 digital output channels (DO1 to DO8) for controlling various automation equipment. Each output is single-ended, with two shared ground potentials, and features built-in digital isolation for enhanced reliability and safety in industrial environments. The Y22 is well-suited for applications requiring precise and stable digital control.

Technical Specifications

Name	Parameter	Description
Power Supply	Operating Voltage	Internal Voltage
Power Supply	Power Consumption	1.5W
Digital Output	Channels	8 Channels
	Output Mode	Single-ended output
	Output Type	Low-level output is effective, with an output of 0VDC.
	Maximum output current per channel	200mA
	Isolation protection	2KVrms
Certifications	EMC	IEC 61000-4-2 (ESD) Level 3
		IEC 61000-4-4 (EFT) Level 3
		IEC 61000-4-5 (Surge)Level 3

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

No.	Name	Model	Channel	Signal Type
1	8-channel digital output module	Y21	8	PNP (High-level Output)
2	8-channel digital output module	Y22	8	NPN (Low-level Output)

8 Channel Digital Output Module (NPN)

Technical Specifications

Model Selection

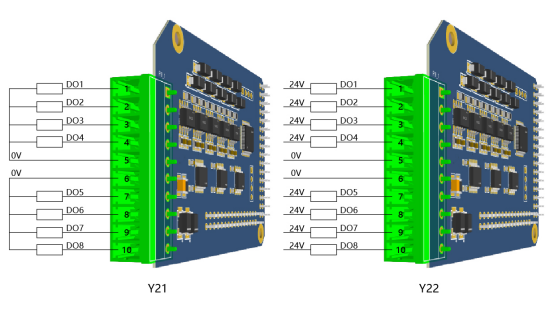

Connection Example
