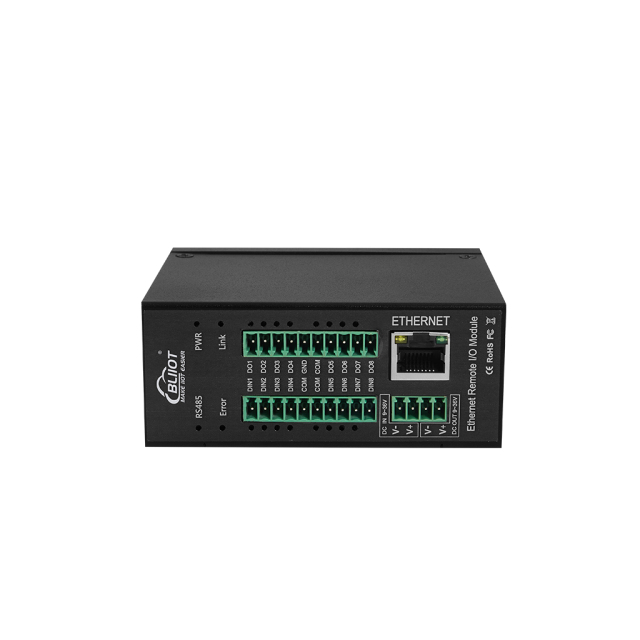

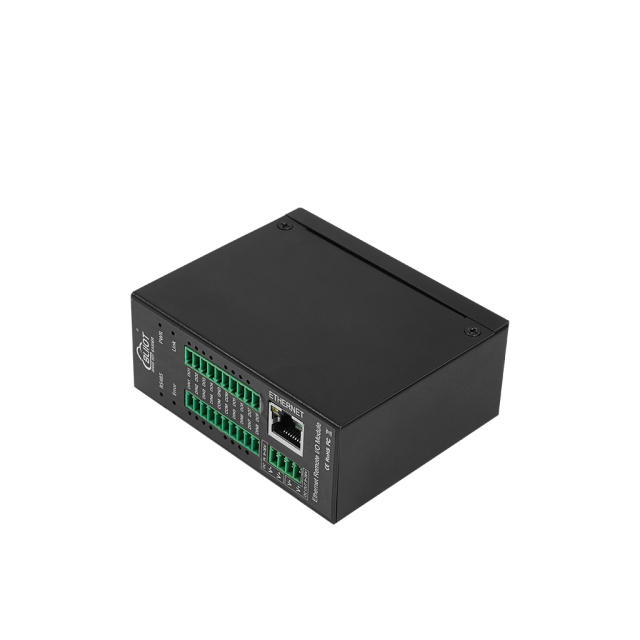

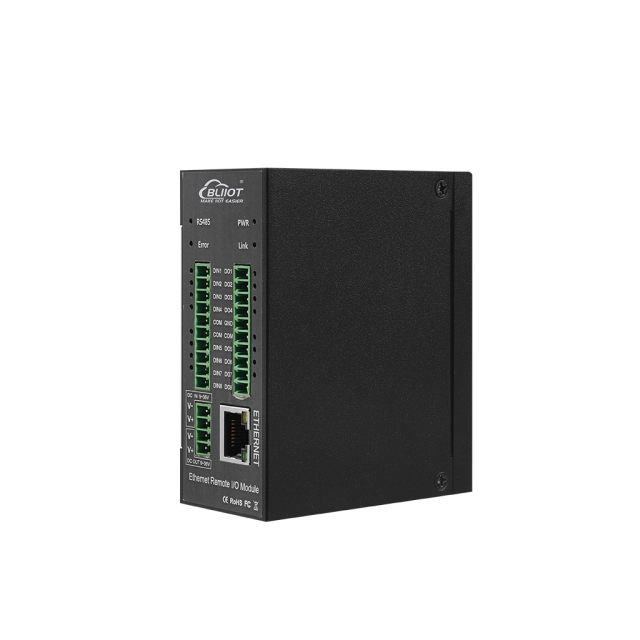

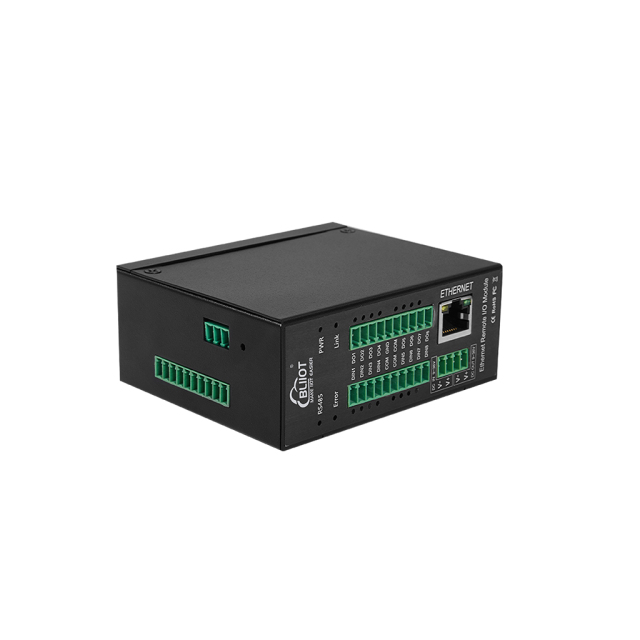

The M330T Ethernet Remote I/O Module is an industrial-grade Automation Control Module designed for high reliability, stability and precision data acquisition in harsh industrial environments. It integrates a 32-bit high-performance microprocessor and an embedded 10/100M adaptive Ethernet interface, supporting Modbus TCP, Modbus RTU over TCP and MQTT protocols. This Automation Control Module can be seamlessly integrated into SCADA, OPC servers and other automation systems, making it ideal for various industrial automation applications, security monitoring systems and automated measurement and control systems.
The M330T Ethernet Remote I/O Module provides 8analog input channels, supporting high-precision 16-bit resolution and handling a variety of analog signals, including 0~5V, 0~10V, 4~20mA and 0~20mA. It includes an RS485 communication interface module, enabling the cascading of Modbus I/O devices and saving installation costs. The built-in register mapping function ensures quick data collection and real-time processing, ideal for demanding industrial applications.
Operating within a wide voltage range of 9~36VDC, the M330T also provides a 9~36VDC power output for external devices, reducing wiring costs. Designed with high protection industrial I/O module features, it offers surge, ESD and reverse power protection, ensuring reliable performance in challenging environments.
Typical Application
|
Item |
Parameter |
Description |
|
Power |
Input voltage |
Models without AO: 9~36VDC Models with AO: 24~36VDC |
|
Power consumption |
Typical standby power consumption: ≤ 2W |
|
|
Power Output |
1 channel Output voltage: 9～36V DC(Equal to the input voltage) Output current: 1500mA@12V(MAX) |
|
|
Ethernet |
Specification |
1 x RJ45, 10M/100Mbps |
|
Protocol |
Modbus RTU, Modbus TCP, MQTT |
|
|
Serial port |
Quantity |
1 x RS485 |
|
Baud Rate |
2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000 |
|
|
Protocol |
Modbus RTU(slave), Modbus RTU(master) |
|
|
Analog input |
Quantity |
8 channels(Max) |
|
Method |
Single-ended input |
|
|
Type |
4-20mA, 0-20mA, 0-5V, 0-10V |
|
|
Resolution |
16Bit |
|
|
Software |
Protocols |
IPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT |
|
Protocol conversion |
Support Modbus TCP and RTU protocol conversion Support Modbus RTU to MQTT and Modbus TCP to MQTT |
|
|
Environment |
Working |
-20～70°C, 5～95%RH |
|
Storage |
-40～85°C, 5～95%RH |
|
|
Others |
Case |
Metal |
|
Dimension |
82mm×40mm×100mm |
|
|
Protection grade |
IP30 |
|
|
Net Weight |
350g |
|
|
Installation |
DIN rail mounted, Wall-mounted |
