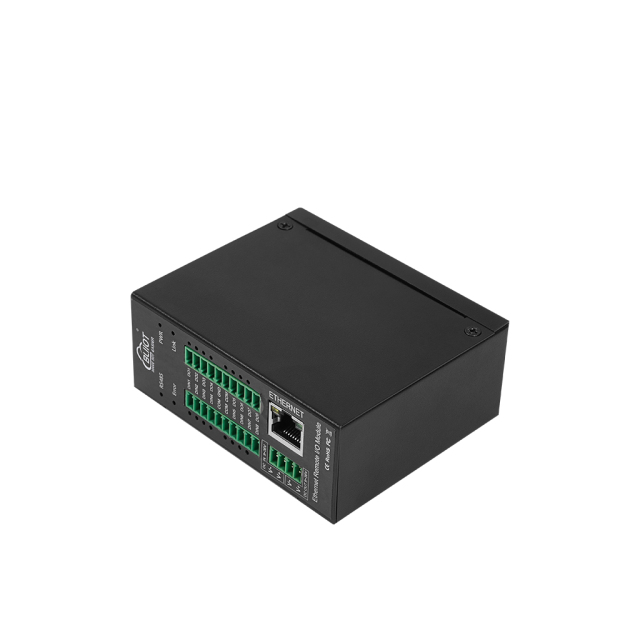

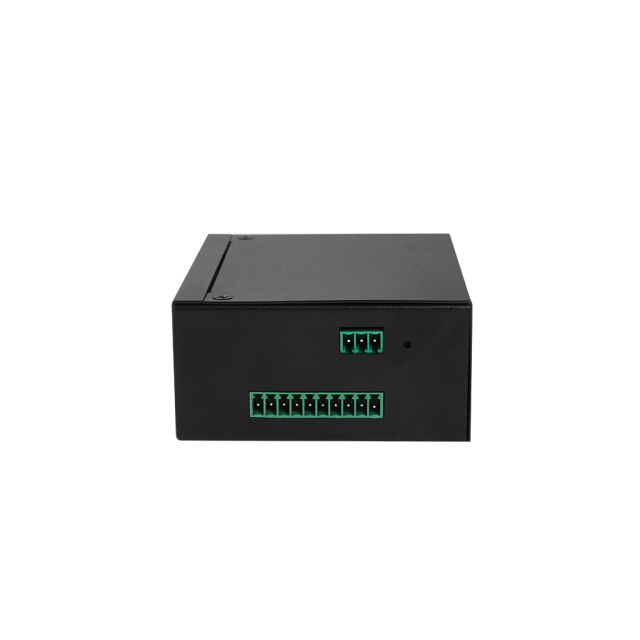

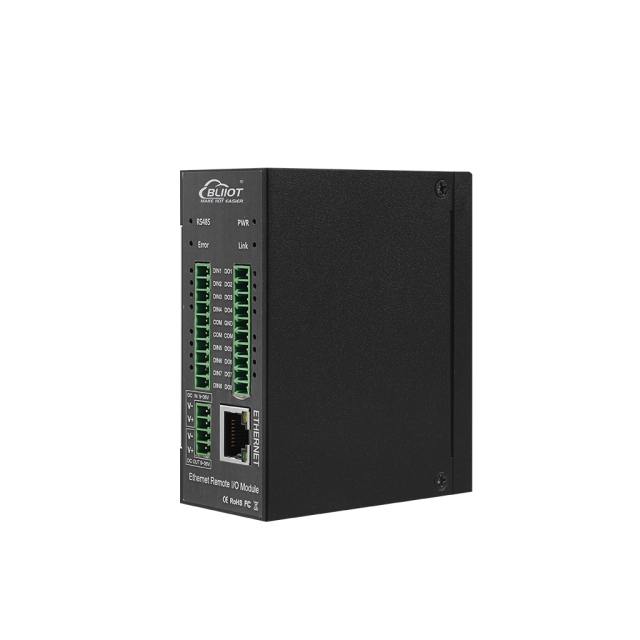

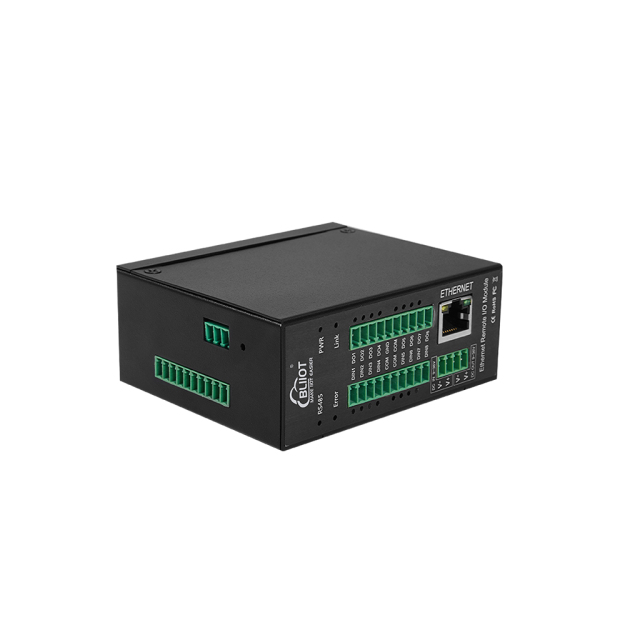

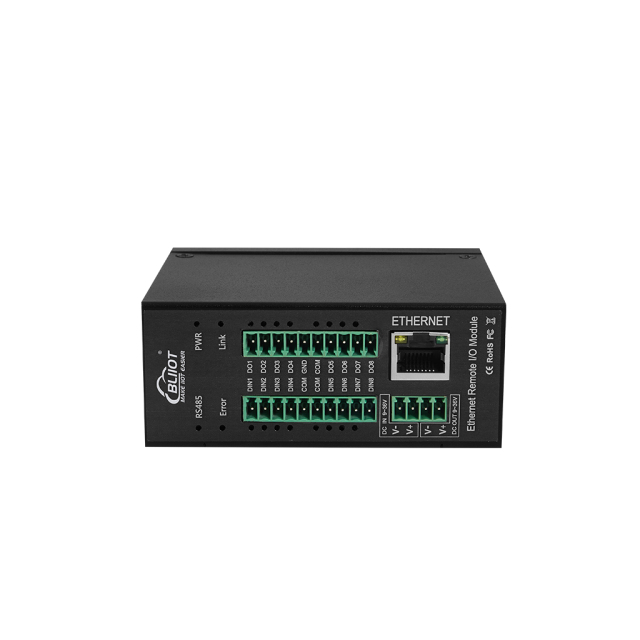

The M310T Ethernet Remote I/O Module is an industrial-grade Ethernet Remote I/O Module designed for high-precision data acquisition in harsh industrial environments. It integrates a 32-bit high-performance microprocessor and an embedded 10/100M adaptive Ethernet interface, supporting Modbus TCP, Modbus RTU over TCP and MQTT protocols. This module is widely used in industrial automation systems and can be seamlessly integrated into SCADA, OPC servers and other automation systems.
The M310T Ethernet Remote I/O Module provides 8 digital input channels, supporting both dry and wet contact types. It also includes an RS485 communication interface module, enabling the connection of Modbus I/O devices when configured as the Modbus master. The built-in register mapping function ensures fast data collection from cascading devices, meeting the real-time demands of industrial applications.
Operating within a wide voltage range of 9~36VDC, the M310T also provides a 9~36VDC power output for external devices, reducing wiring costs. The module is designed with high protection industrial I/O module features, including surge, ESD and reverse power protection, ensuring reliable operation in demanding environments.
Typical Application
|
Item |
Parameter |
Description |
|
Power |
Input voltage |
Models without AO: 9~36VDC Models with AO: 24~36VDC |
|
Power consumption |
Typical standby power consumption: ≤ 2W |
|
|
Power Output |
1 channel Output voltage: 9～36V DC(Equal to the input voltage) Output current: 1500mA@12V(MAX) |
|
|
Ethernet |
Specification |
1 x RJ45, 10M/100Mbps |
|
Protocol |
Modbus RTU, Modbus TCP, MQTT |
|
|
Serial port |
Quantity |
1 x RS485 |
|
Baud Rate |
2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000 |
|
|
Protocol |
Modbus RTU(slave), Modbus RTU(master) |
|
|
Digital input |
Quantity |
8 channels |
|
Type |
Support Wet contact(NPN, PNP) and Dry contact. Default: Wet contact |
|
|
Software |
Protocols |
IPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT |
|
Protocol conversion |
Support Modbus TCP and RTU protocol conversion Support Modbus RTU to MQTT and Modbus TCP to MQTT |
|
|
Environment |
Working |
-20～70°C, 5～95%RH |
|
Storage |
-40～85°C, 5～95%RH |
|
|
Others |
Case |
Metal |
|
Dimension |
82mm×40mm×100mm |
|
|
Protection grade |
IP30 |
|
|
Net Weight |
350g |
|
|
Installation |
DIN rail mounted, Wall-mounted |
