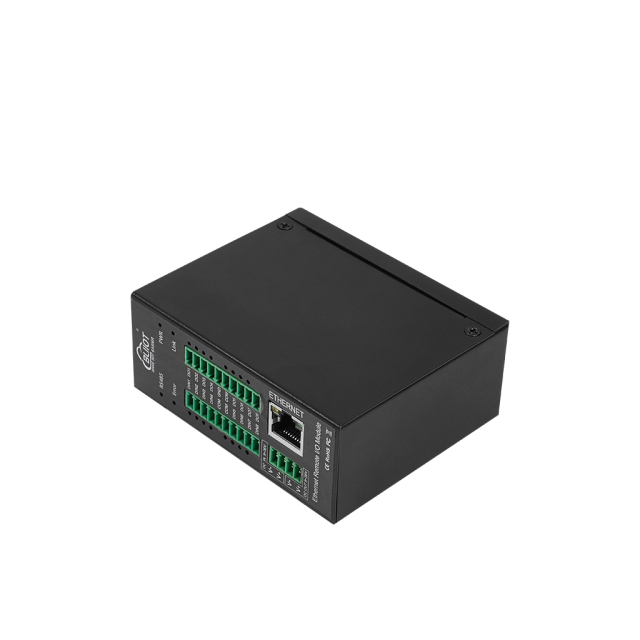

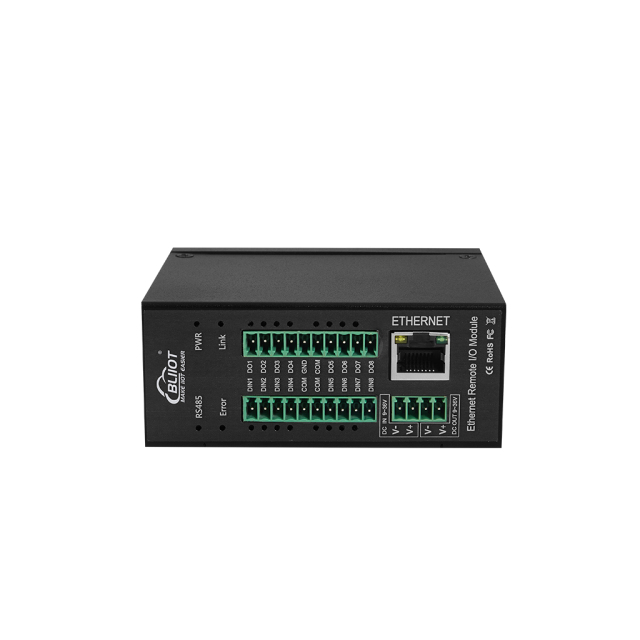

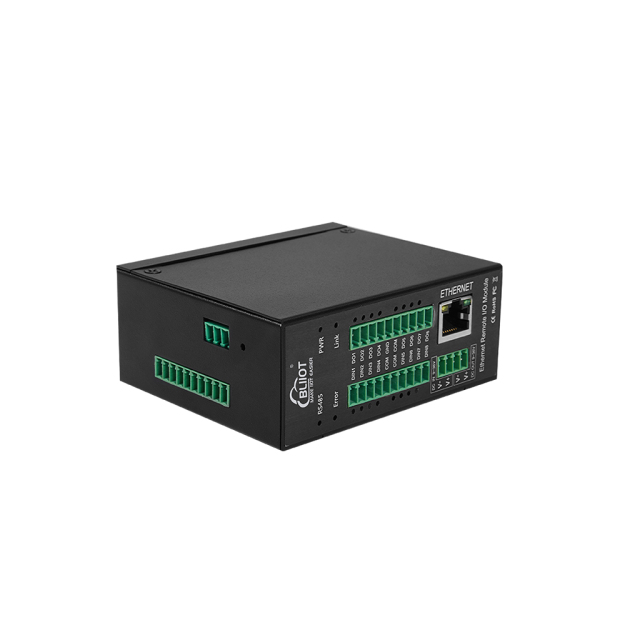

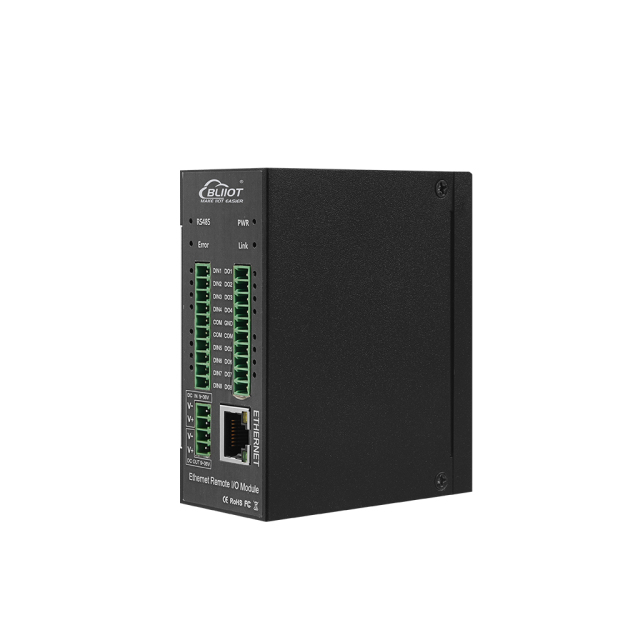

The M150T Data Acquisition Module is a compact, industrial-grade remote I/O device designed for accurate and stable signal monitoring in harsh automation environments. Powered by a 32-bit high-performance MCU and integrated with a 10/100M adaptive Ethernet port, it supports Modbus TCP (master/slave), Modbus RTU over TCP and MQTT protocols, enabling easy integration into SCADA systems, OPC servers and other industrial platforms.

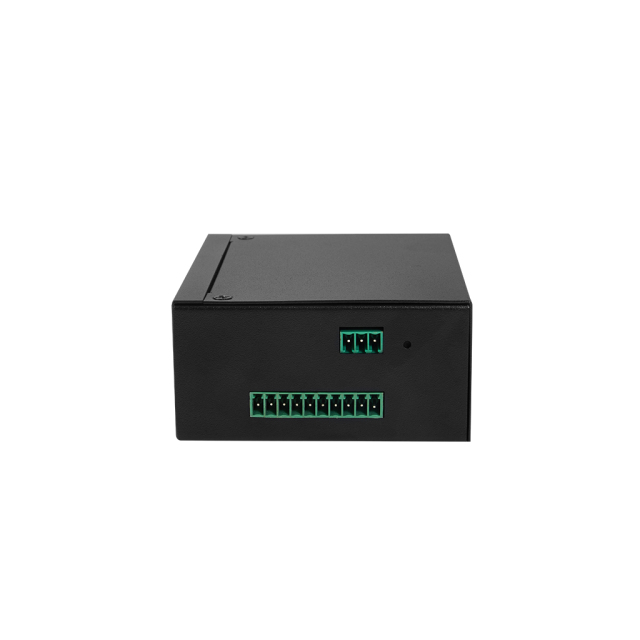

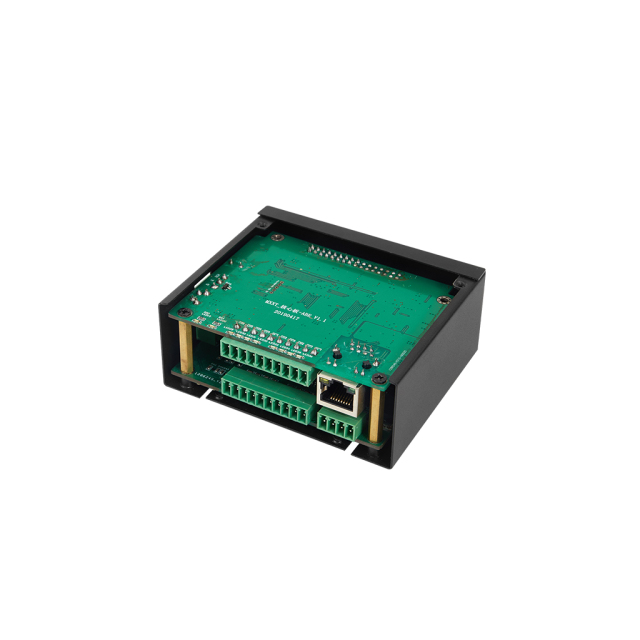

The Remote I/O Module M150T features 8 digital inputs, 4 analog inputs and 4 digital outputs. DI1 supports high-speed pulse counting up to 700kHz, while DI2 through DI8 support low-speed pulse counting up to 1kHz. The AI channels offer 16-bit resolution and support 0-5V, 0-10V, 0-20mA and 4-20mA signals. DO1 supports pulse output from 10Hz to 300kHz, DO2 can be used for direction control. The RS485 interface enables cascading of Modbus RTU I/O devices and the internal register mapping (300 bit + 300 16-bit) ensures fast and efficient TCP polling.
Operating with a 9~36VDC input and built-in reverse polarity protection, the M150T also provides one DC power output equal to the input voltage (up to 1500mA @12V) for external device power supply. Its rugged metal enclosure offers IP30 protection and supports both DIN rail and wall mounting. As a reliable and high-performance Data Acquisition Module, the M150T is ideal for distributed industrial automation and remote monitoring systems.
Typical Application
|
Item |
Parameter |
Description |
|
Power |
Input voltage |
Models without AO: 9~36VDC Models with AO: 24~36VDC |
|
Power consumption |
Typical standby power consumption: ≤ 2W |
|
|
Power Output |
1 channel Output voltage: 9～36V DC(Equal to the input voltage) Output current: 1500mA@12V(MAX) |
|
|
Ethernet |
Specification |
1 x RJ45, 10M/100Mbps |
|
Protocol |
Modbus RTU, Modbus TCP, MQTT |
|
|
Serial port |
Quantity |
1 x RS485 |
|
Baud Rate |
2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000 |
|
|
Protocol |
Modbus RTU(slave), Modbus RTU(master) |
|
|
Digital input |
Quantity |
8 channels |
|
Type |
Support Wet contact(NPN, PNP) and Dry contact. Default: Wet contact |
|
|
Digital output |
Quantity |
4 channels |
|
Type |
SINK |
|
|
Analog input |
Quantity |
4 channels |
|
Method |
Single-ended input |
|
|
Type |
4-20mA, 0-20mA, 0-5V, 0-10V |
|
|
Software |
Protocols |
IPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT |
|
Protocol conversion |
Support Modbus TCP and RTU protocol conversion Support Modbus RTU to MQTT and Modbus TCP to MQTT |
|
|
Environment |
Working |
-20～70°C, 5～95%RH |
|
Storage |
-40～85°C, 5～95%RH |
|
|
Others |
Case |
Metal |
|
Dimension |
82mm×40mm×100mm |
|
|
Protection grade |
IP30 |
|
|
Net Weight |
350g |
|
|
Installation |
DIN rail mounted, Wall-mounted |
