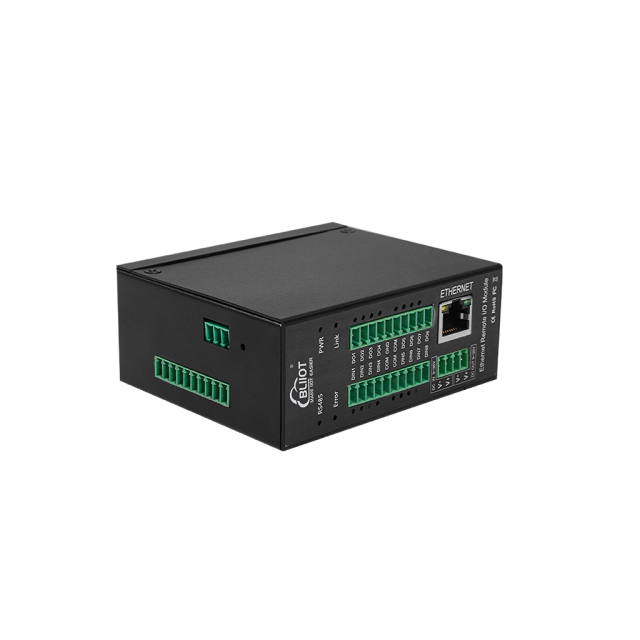

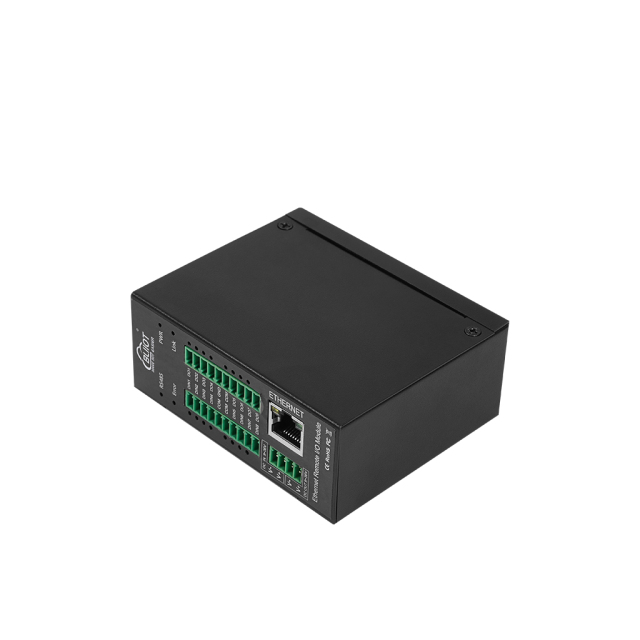

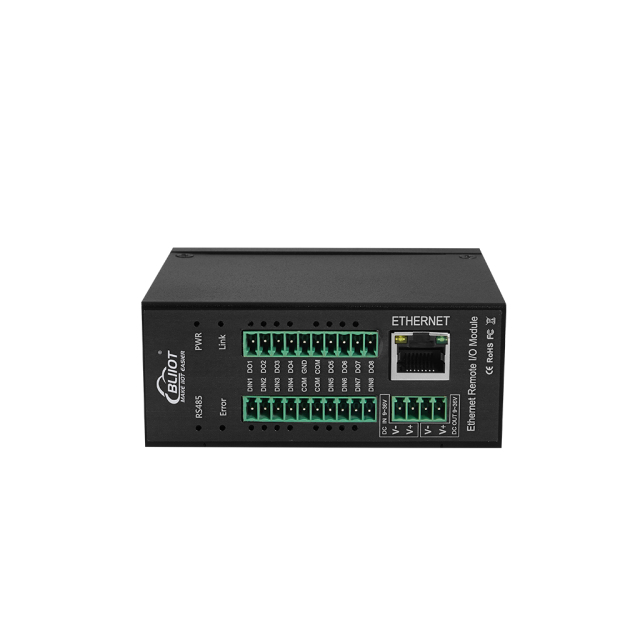

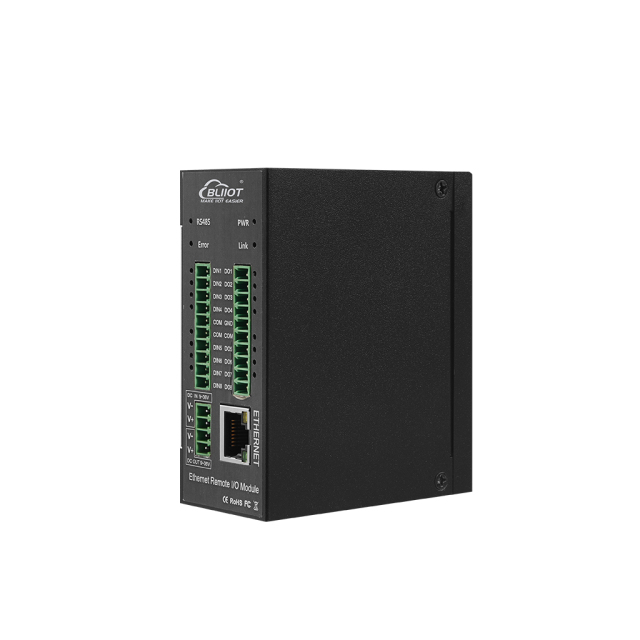

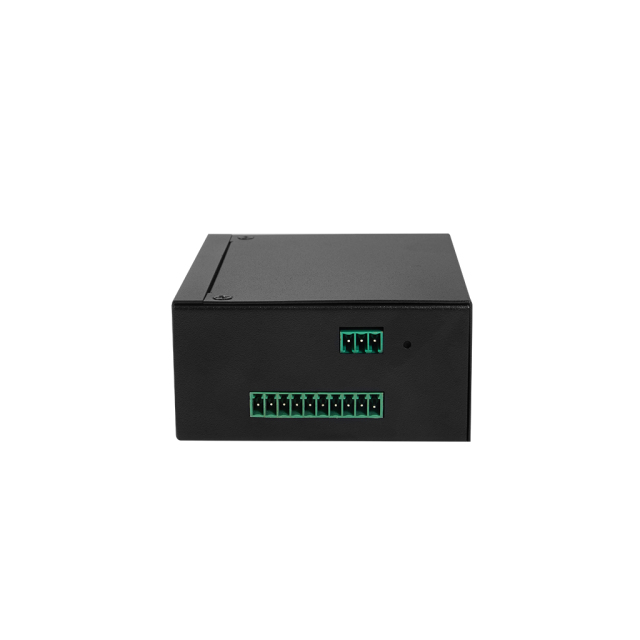

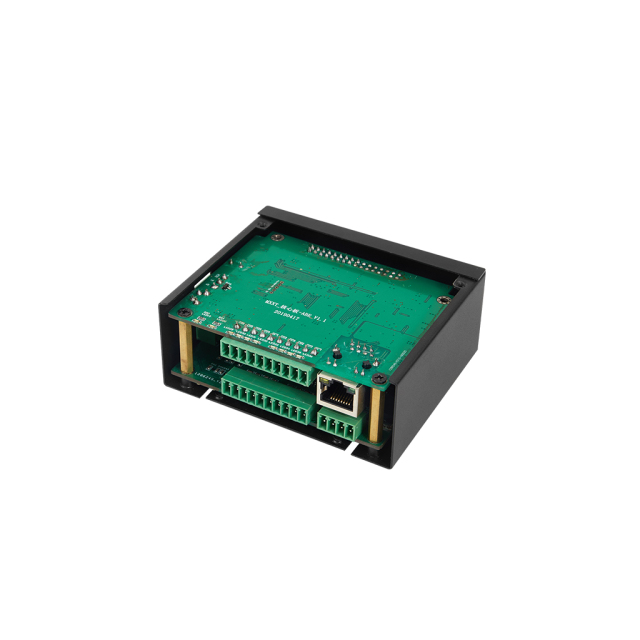

The BLIIoT M130T Industrial Ethernet I/O Module is a compact and reliable Remote IO Data Acquisition Module designed for industrial automation. It features a 32-bit MCU, 10/100M Ethernet port and RS485 interface, supporting Modbus TCP (master/slave), Modbus RTU over TCP and MQTT, with optional cloud access via BLIIoT Cloud 2.0. It operates on 9~36VDC with reverse polarity protection and provides a 936VDC/1500mA output for external devices.
This High-Speed Pulse Counting Module includes 8 digital inputs and 4 digital outputs, functioning as Digital Input/Output Modules. DIN1 supports 700kHz high-speed pulse counting by default. DO1 supports 10Hz–300kHz pulse output and DO2 can serve as direction control. Pulse mode selection is done via onboard jumper settings.
The Industrial Ethernet I/O Module supports cascading Modbus RTU slave devices via RS485 and offers 300 BIT and 300 16-bit register mappings to reduce TCP polling delay. With a rugged metal enclosure, IP30 rating and support for DIN rail or wall mounting, the M130T is ideal for distributed control and high-frequency digital signal applications.
Typical Application
|
Item |
Parameter |
Description |
|
Power |
Input voltage |
Models without AO: 9~36VDC Models with AO: 24~36VDC |
|
Power consumption |
Typical standby power consumption: ≤ 2W |
|
|
Power Output |
1 channel Output voltage: 9～36V DC(Equal to the input voltage) Output current: 1500mA@12V(MAX) |
|
|
Ethernet |
Specification |
1 x RJ45, 10M/100Mbps |
|
Protocol |
Modbus RTU, Modbus TCP, MQTT |
|
|
Serial port |
Quantity |
1 x RS485 |
|
Baud Rate |
2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000 |
|
|
Protocol |
Modbus RTU(slave), Modbus RTU(master) |
|
|
Digital input |
Quantity |
8 channels |
|
Type |
Support Wet contact(NPN, PNP) and Dry contact. Default: Wet contact |
|
|
Digital output |
Quantity |
4 channels |
|
Type |
SINK |
|
|
Software |
Protocols |
IPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT |
|
Protocol conversion |
Support Modbus TCP and RTU protocol conversion Support Modbus RTU to MQTT and Modbus TCP to MQTT |
|
|
Environment |
Working |
-20～70°C, 5～95%RH |
|
Storage |
-40～85°C, 5～95%RH |
|
|
Others |
Case |
Metal |
|
Dimension |
82mm×40mm×100mm |
|
|
Protection grade |
IP30 |
|
|
Net Weight |
350g |
|
|
Installation |
DIN rail mounted, Wall-mounted |
