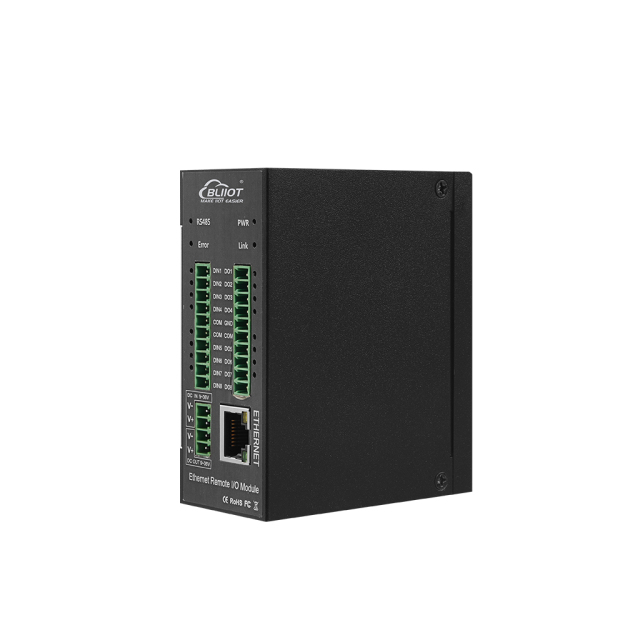

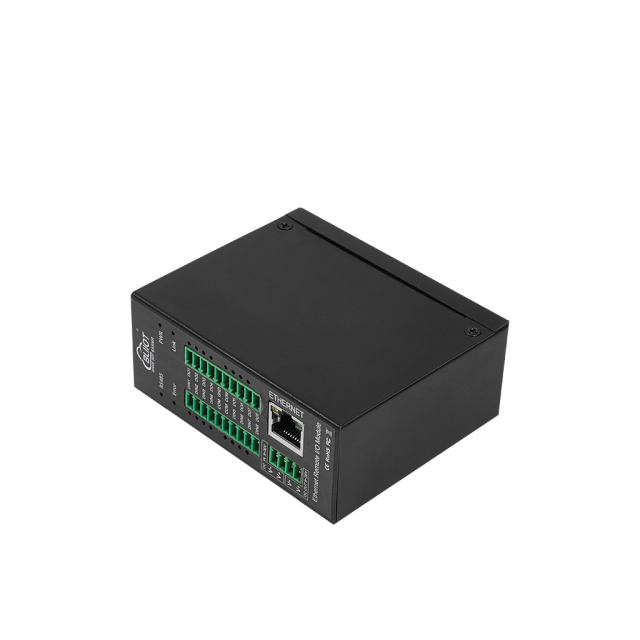

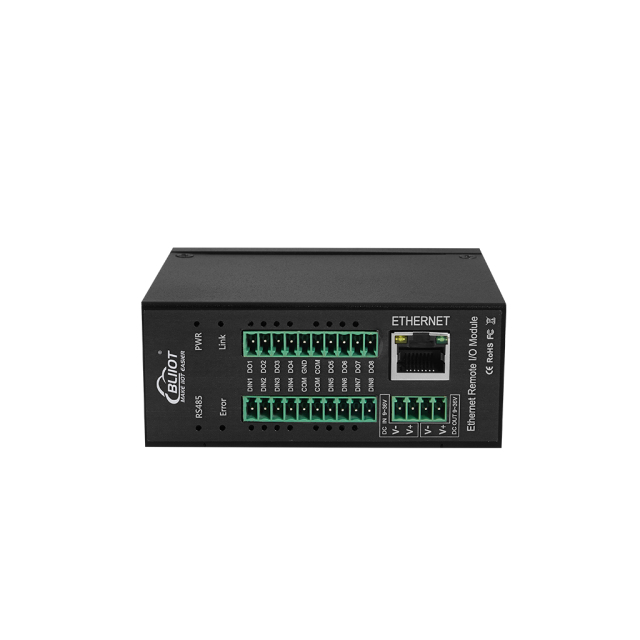

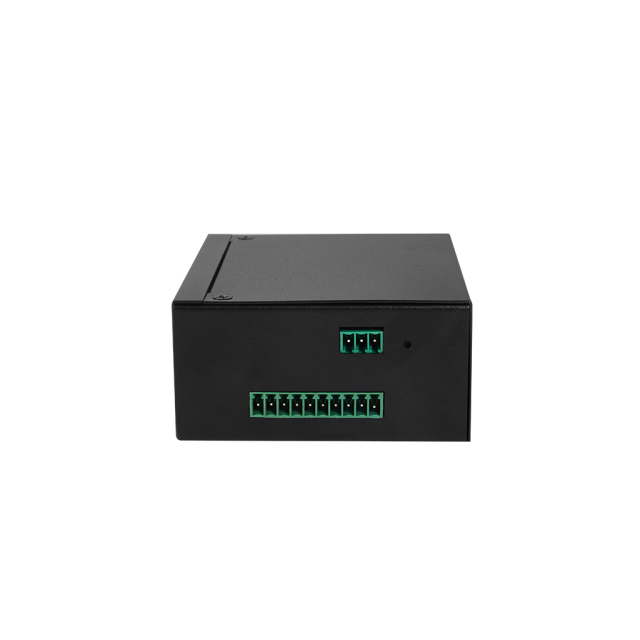

The BLIIoT M140T Industrial Remote I/O Module is designed for industrial automation and remote control. It features a 32-bit MCU, 10/100M Ethernet port and RS485 interface, supporting Modbus TCP (master/slave), Modbus RTU over TCP and MQTT for seamless integration with SCADA, PLCs and IoT systems. It operates on 9~36VDC and provides one 9~36VDC/1.5A output for external devices.
This High Speed Pulse Output Module Industrial Remote I/O Module includes 8 digital inputs and 8 digital outputs. DI supports dry/wet contacts and pulse counting up to 1kHz. The DO channels use SINK output, with DO1 supporting pulse output (10Hz~300kHz).
The Industrial Remote I/O Module M140T supports cascading Modbus RTU slave devices via RS485 and offers 300 BIT + 300 16-bit register mappings for fast TCP polling. With a compact metal housing, IP30 protection and DIN rail or wall mounting, it’s ideal for digital I/O applications in demanding industrial environments.
Typical Application
|
Item |
Parameter |
Description |
|
Power |
Input voltage |
Models without AO: 9~36VDC |
|
Power consumption |
Typical standby power consumption: ≤ 2W |
|
|
Power Output |
1 channel Output voltage: 9～36V DC(Equal to the input voltage) Output current: 1500mA@12V(MAX) |
|
|
Ethernet |
Specification |
1 x RJ45, 10M/100Mbps |
|
Protocol |
Modbus RTU, Modbus TCP, MQTT |
|
|
Serial port |
Quantity |
1 x RS485 |
|
Baud Rate |
2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000 |
|
|
Protocol |
Modbus RTU(slave), Modbus RTU(master) |
|
|
Digital input |
Quantity |
8 channels |
|
Type |
Support Wet contact(NPN, PNP) and Dry contact. Default: Wet contact |
|
|
Digital output |
Quantity |
8 channels |
|
Type |
SINK |
|
|
Software |
Protocols |
IPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT |
|
Protocol conversion |
Support Modbus TCP and RTU protocol conversion Support Modbus RTU to MQTT and Modbus TCP to MQTT |
|
|
Environment |
Working |
-20～70°C, 5～95%RH |
|
Storage |
-40～85°C, 5～95%RH |
|
|
Others |
Case |
Metal |
|
Dimension |
82mm×40mm×100mm |
|
|
Protection grade |
IP30 |
|
|
Net Weight |
350g |
|
|
Installation |
DIN rail mounted, Wall-mounted |
