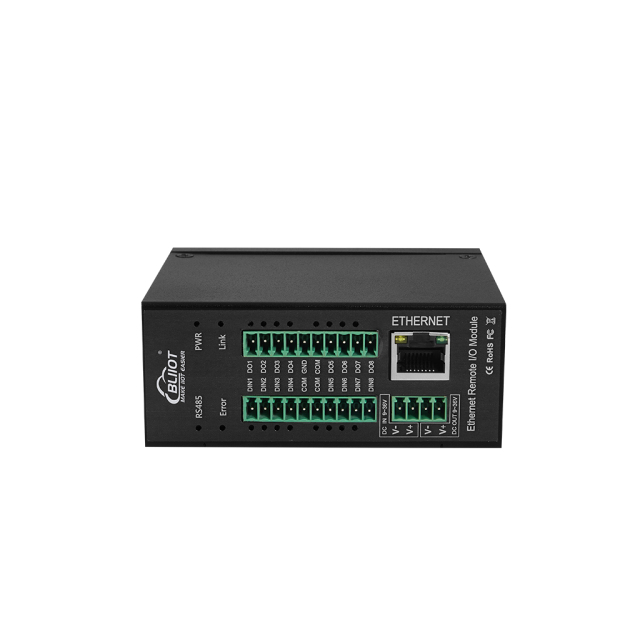

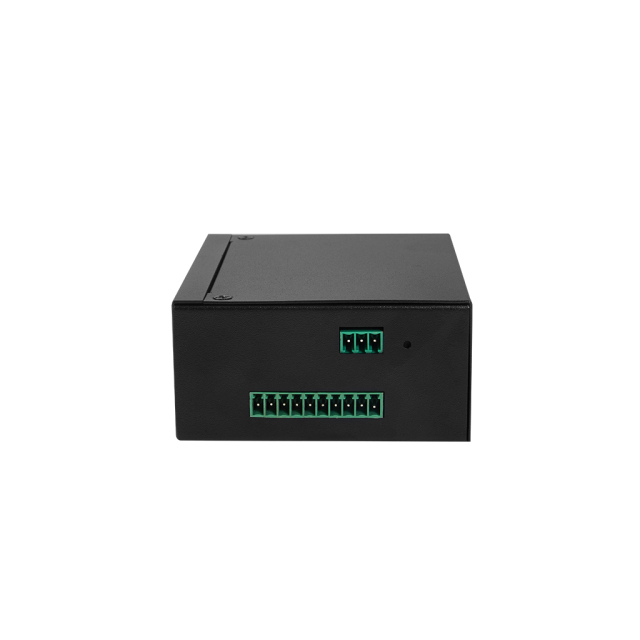

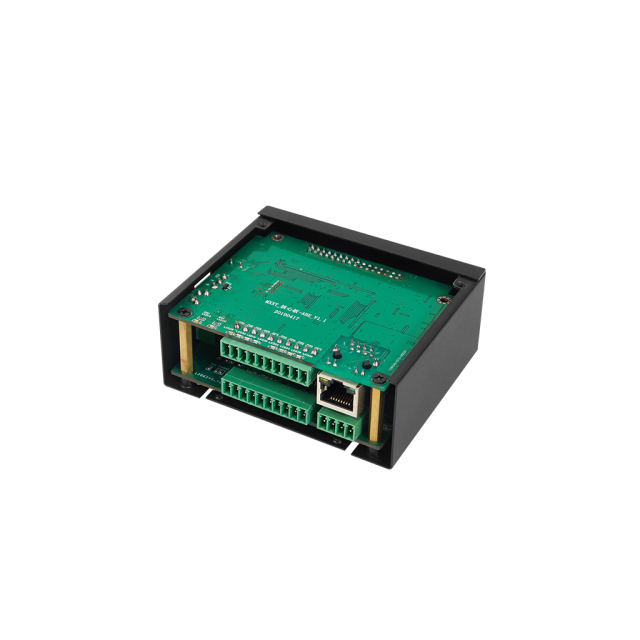

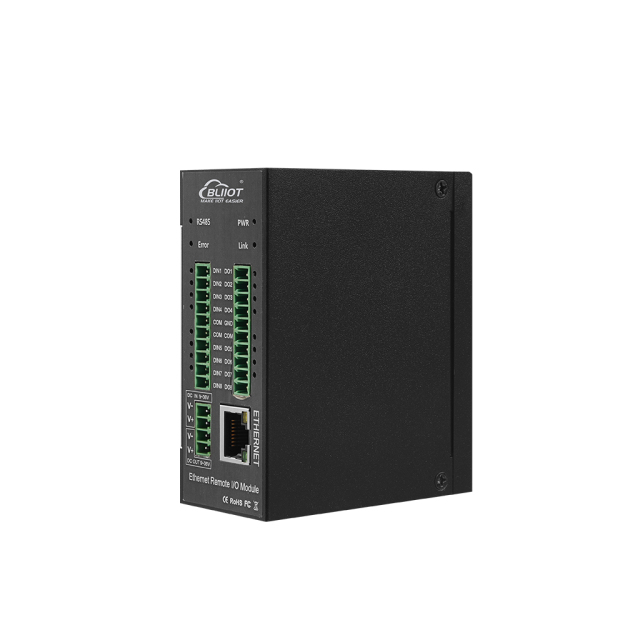

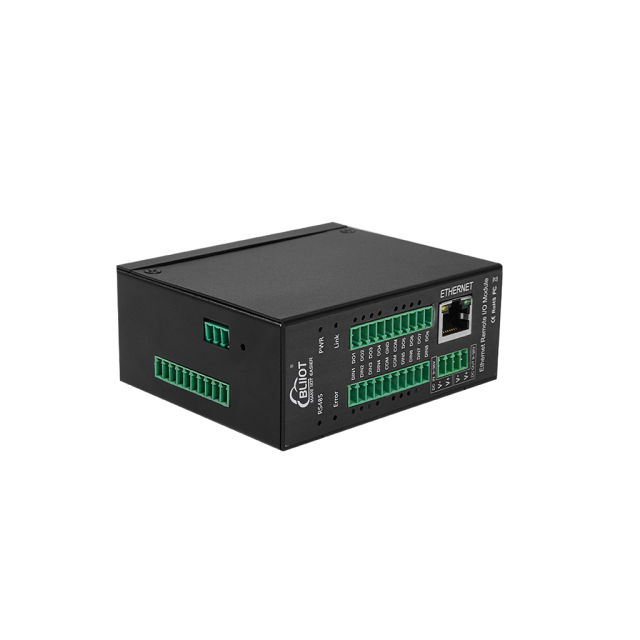

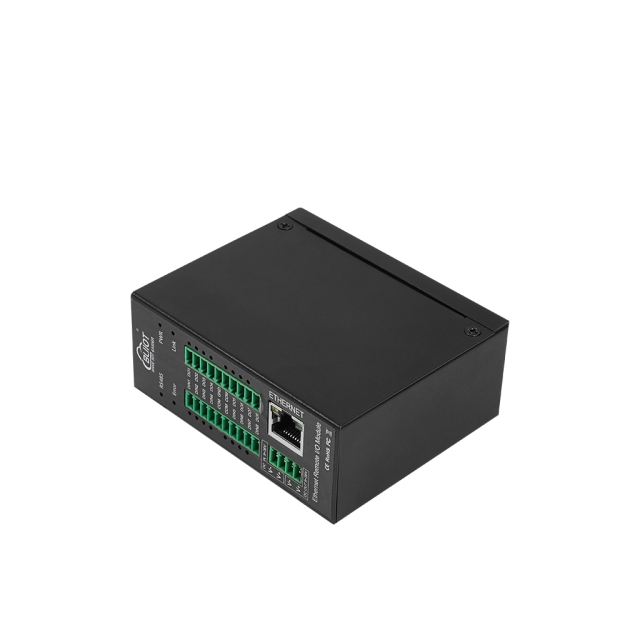

The M320R Digital Output Module integrates a 32-bit high-performance microprocessor and an embedded 10/100M adaptive Ethernet module, supporting Modbus TCP, Modbus RTU over TCP and MQTT protocols. As an IoT Communication Module, it can be easily integrated into SCADA, PLCs, OPC servers and other automation systems.
The M320R Digital Output Module provides 8 digital output channels and 8 relay output channels, supporting high-speed pulse output and reliable relay control. It also features an RS485 communication interface for cascading Modbus I/O devices. The built-in register mapping function ensures efficient data collection, optimizing real-time performance for Relay Output Module and control applications.
Operating with a wide voltage range of 9~36VDC, the M320R also provides a 9~36VDC power output for external devices, reducing wiring costs. Designed with high protection industrial I/O module features, it offers surge, ESD, and reverse power protection. Its robust IP30 metal housing supports DIN rail or wall mounting, ensuring reliable operation in industrial automation and control systems.
Typical Application
|
Item |
Parameter |
Description |
|
Power |
Input voltage |
Models without AO: 9~36VDC Models with AO: 24~36VDC |
|
Power consumption |
Typical standby power consumption: ≤ 2W |
|
|
Power Output |
1 channel Output voltage: 9～36V DC(Equal to the input voltage) Output current: 1500mA@12V(MAX) |
|
|
Ethernet |
Specification |
1 x RJ45, 10M/100Mbps |
|
Protocol |
Modbus RTU, Modbus TCP, MQTT |
|
|
Serial port |
Quantity |
1 x RS485 |
|
Baud Rate |
2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 128000 |
|
|
Protocol |
Modbus RTU(slave), Modbus RTU(master) |
|
|
Digital output |
Quantity |
8 channels |
|
Type |
SINK |
|
|
Relay |
Specification |
5A 250VAC/3A 30VDC |
|
Software |
Protocols |
IPV4, TCP/UDP, DNS, Modbus RTU, Modbus TCP, MQTT |
|
Protocol conversion |
Support Modbus TCP and RTU protocol conversion Support Modbus RTU to MQTT and Modbus TCP to MQTT |
|
|
Environment |
Working |
-20～70°C, 5～95%RH |
|
Storage |
-40～85°C, 5～95%RH |
|
|
Others |
Case |
Metal |
|
Dimension |
82mm×40mm×100mm |
|
|
Protection grade |
IP30 |
|
|
Net Weight |
350g |
|
|
Installation |
DIN rail mounted, Wall-mounted |
