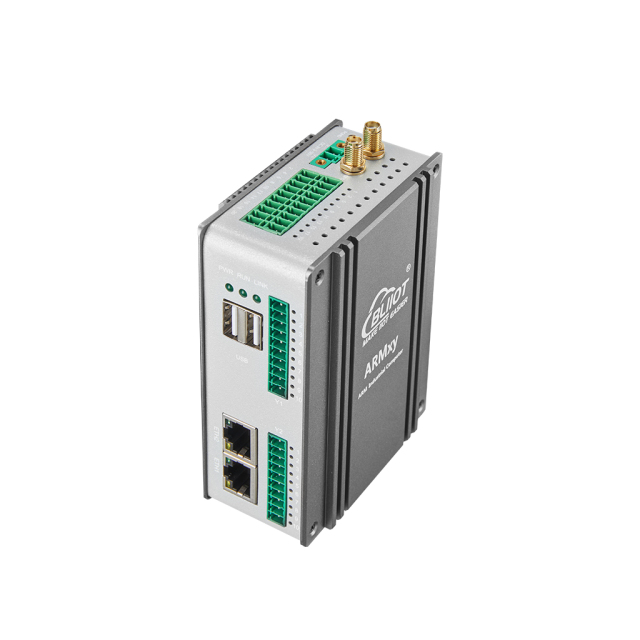

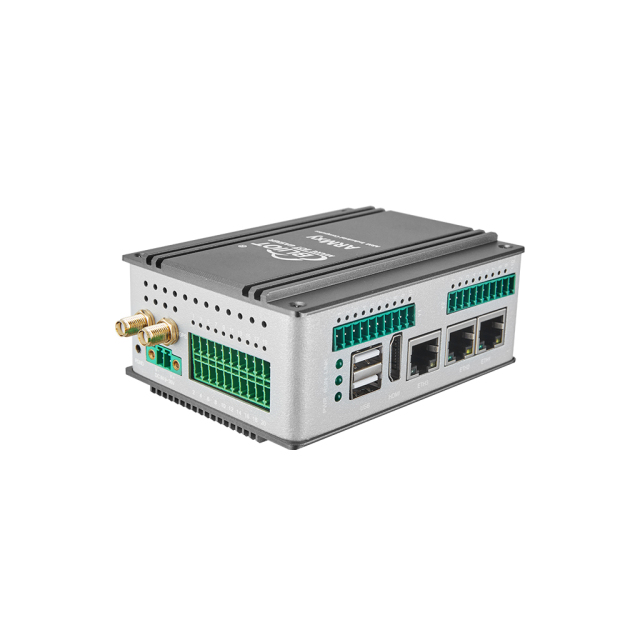

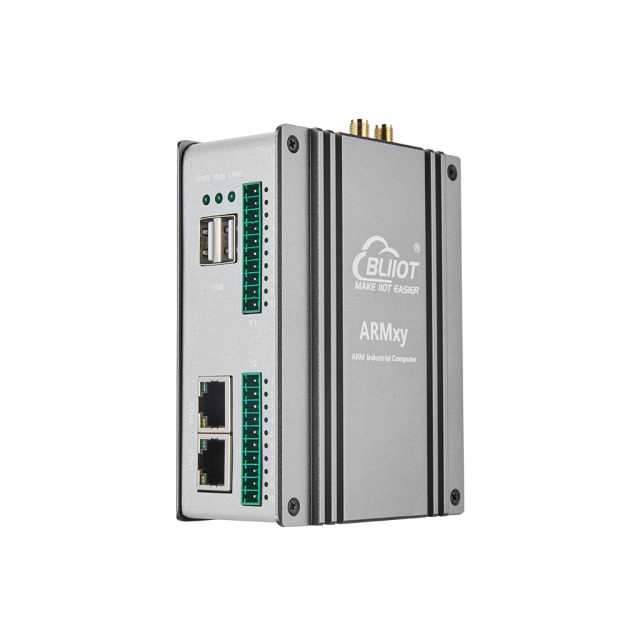

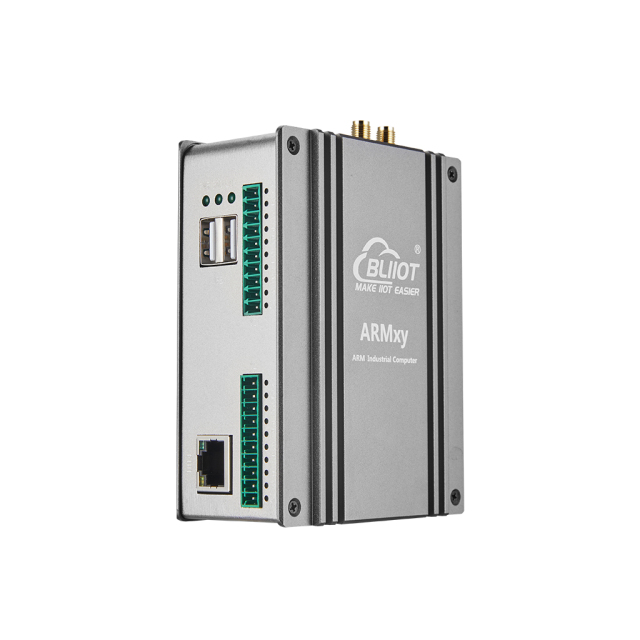

Model |
ETH |
USB |
HDMI |
X board I/O Slot |
Y board I/O Slot |
Dimension |
|
BL340 |
1x10/100M |
2 |
X |
1x6PIN |
X |
42x83x110mm |
|
BL340A |
1x10/100M |
2 |
X |
1x20PIN |
X |
42x83x110mm |
|
BL340B |
1x10/100M |
2 |
X |
1x20PIN |
2 |
48x83x110mm |
|
BL340C |
1x10/100M |
2 |
X |
1x10PIN |
X |
42x83x110mm |
|
BL341 |
2x10/100M |
2 |
X |
1x6PIN |
X |
42x83x110mm |
|
BL341A |
2x10/100M |
2 |
X |
1x20PIN |
X |
42x83x110mm |
|
BL341B |
2x10/100M |
2 |
X |
1x20PIN |
2 |
48x83x110mm |
|
BL342 |
3x10/100M |
2 |
1 |
1x6PIN |
X |
42x83x110mm |
|
BL342A |
3x10/100M |
2 |
1 |
1x20PIN |
X |
42x83x110mm |
|
BL342B |
3x10/100M |
2 |
1 |
1x20PIN |
2 |
48x83x110mm |
|
Model |
MCU |
Clock Speed |
Kernel |
eMMC |
DDR4 |
Temperature |
|
SOM340 |
T507-H |
1.4GHz |
4 x A53 |
8GByte |
1GByte |
-40~85°C |
|
SOM341 |
T507-H |
1.4GHz |
4 x A53 |
16GByte |
2GByte |
-40~85°C |
|
SOM342 |
T507-H |
1.4GHz |
4 x A53 |
8GByte |
1GByte |
0~70°C |
|
SOM343 |
T507-H |
1.4GHz |
4 x A53 |
16GByte |
2GByte |
0~70°C |
|
Model |
RS232/RS485 |
DI |
DO |
GPIO |
PIN |
|
X10 |
2 |
x |
x |
x |
6PIN |
|
X13 |
x |
2 |
2 |
x |
6PIN |
|
X14 |
x |
4 |
x |
x |
6PIN |
|
X15 |
x |
x |
4 |
x |
6PIN |
|
X16 |
x |
x |
x |
4 |
6PIN |
|
X20 |
4 |
x |
x |
x |
10PIN |
|
X23 |
4 |
4 |
4 |
x |
20PIN |
|
X26 |
2 |
8 |
4 |
x |
20PIN |
|
X28 |
2 |
12 |
x |
x |
20PIN |
|
X30 |
x |
x |
x |
16 |
20PIN |
|
Model |
Description |
|
Model |
Description |
|
Y01 |
4xDI+4xDO(NPN) |
Y41 |
4xAO, 0~20mA/4~20mA |
|
|
Y02 |
4xDI+4xDO(PNP) |
Y43 |
4xAO, 0~5V/0~10V |
|
|
Y11 |
8xDI(NPN) |
Y46 |
4xAO, ±5V/±10V |
|
|
Y12 |
8xDI(PNP) |
Y51 |
2xRTD, 3-Wire PT100 |
|
|
Y13 |
8xDI(Dry Contact) |
Y52 |
2xRTD, 3-Wire PT1000 |
|
|
Y21 |
8xDO(PNP) |
Y53 |
2xRTD, 4-Wire PT100 |
|
|
Y22 |
8xDO(NPN) |
Y54 |
2xRTD, 4-Wire PT1000 |
|
|
Y24 |
4xDO(Relay) |
Y56 |
Resistance Measurement |
|
|
Y31 |
4xAI, Single-ended, 0~20mA/4~20mA |
Y57 |
Voltage Measurement |
|
|
Y33 |
4xAI, Single-ended, 0~5V/0~10V |
Y58 |
4xTC |
|
|
Y34 |
4xAI, Differential, 0~5V/0~10V |
Y63 |
4xRS485 or RS232 |
|
|
Y36 |
4xAI, Differential, ±5V/±10V |
|
Y95 |
4xPWM Output(NPN) + 4xPulse Counter Input |
|
Y37 |
4xIEPE |
|
Y96 |
4xPWM Output(PNP) + 4xPulse Counter Input |
|
Hardware |
Parameters |
|
CPU |
Allwinner T507-H, 64bit, 28nm |
|
4x ARM Cortex-A53 cores, with a clock speed up to 1.416GHz. |
|
|
GPU: G31 MP2, supporting OpenGL ES 1.0/2.0/3.2, Vulkan 1.1, and OpenCL2.0 |
|
|
Encoder: Supports hardware encoding of 4K@25fps H.264 video. |
|
|
Decoder: Supports hardware decoding of 4K@30fps H.265 video. |
|
|
ROM |
eMMC 8/16GByte |
|
RAM |
DDR4 1/2GByte |
|
ETH |
RJ-45, 1~3, 3x10/100M, ESD Level 3, EFT Level 3 |
|
USB |
2xUSB2.0 HOST(USB1, USB2), supports high-speed 480Mbps, full-speed 12Mbps, and low-speed 1.5Mbps modes, ESD Level 3 |
|
HDMI |
1xHDMI2.0a, compatible with HDCP2.2, HDCP1.4 standard, supports up to 4K@30fps |
|
I/O Slot |
X series I/O board slot: 1, support RS485, RS232, DI, DO, GPIO, etc; Y series I/O board slot: 2, support RS485, RS232, DI, DO, Relay output, AI, AO, PT100, PT1000, TC, etc. |
|
LED |
1xpower indicator light |
|
2xuser-programmable indicator light |
|
|
Mini PCIe |
1, Supports Bluetooth, Wi-Fi, 4G module, etc. |
|
SIM Slot |
1 slot, NANO |
|
Antenna |
2, For 4G/Wi-Fi/GPS |
|
Debug |
1x Micro USB debug port |
|
SD Slot |
1 |
|
Reset |
1 reset button |
|
Watchdog |
Onboard independent hardware watchdog |
|
Power |
Rated DC 24V, supports wide voltage range of 12-24VDC Equipped with reverse polarity protection and overcurrent protection 3-pin terminal block with screw terminals |
|
Grounding |
1-pin GND terminal |
|
Installation |
DIN35 rail mounting, wall mounting |
|
Material |
Aluminum alloy casing + stainless steel |
|
Dimensions |
110x83x42mm or 110x83x48mm |
