Name: 4*A53 i.MX8M Mini Industrial ARM Embedded Computer
Brand: Beilai Tech. Co., Ltd.
SKU: BL360
Availability: InStock
Rating: 5 (1 reviews)

4*A53 i.MX8M Mini Industrial ARM Embedded Computer

No.BL360

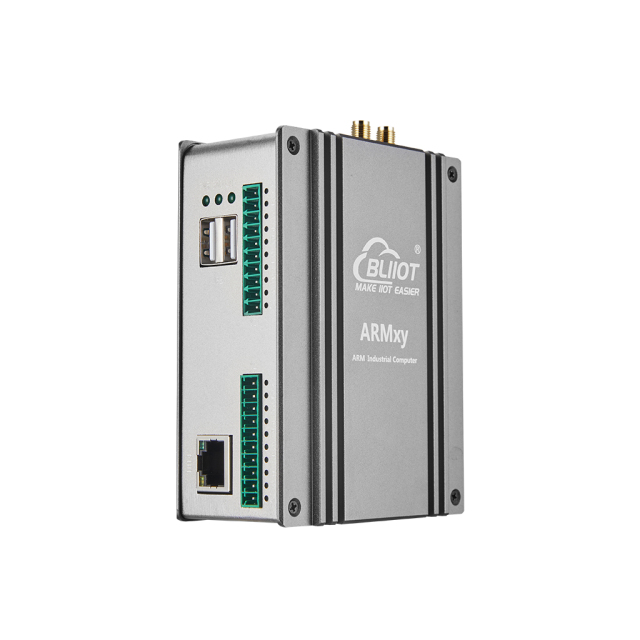

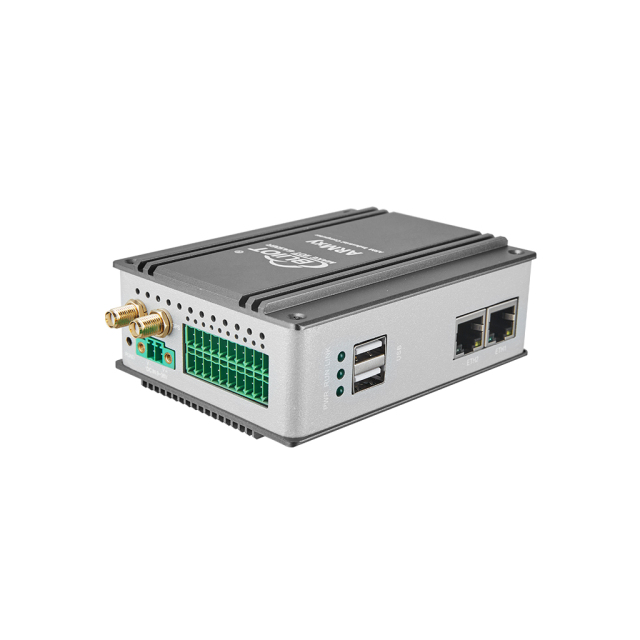

BL360 Industrial ARM Computers built on NXP i.MX8M Mini with quad-core Cortex-A53+M4. As a Industrial ARM embedded computer, it supports flexible I/O expansion. Running Linux, Yocto, or Ubuntu, it supports Docker, Node-RED, Qt. With optional WiFi/4G and remote access via BLRAT, BL360 is ideal for embedded computing in industrial control, edge gateways, and smart automation.

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

Model	ETH	USB	HDMI	X board I/O Slot	Y board I/O Slot	Dimension
BL360	1x10/100M	2	X	1x6PIN	X	42x83x110mm
BL360A	1x10/100M	2	X	1x20PIN	X	42x83x110mm
BL360B	1x10/100M	2	X	1x20PIN	2	48x83x110mm
BL360C	1x10/100M	2	X	1x10PIN	X	42x83x110mm

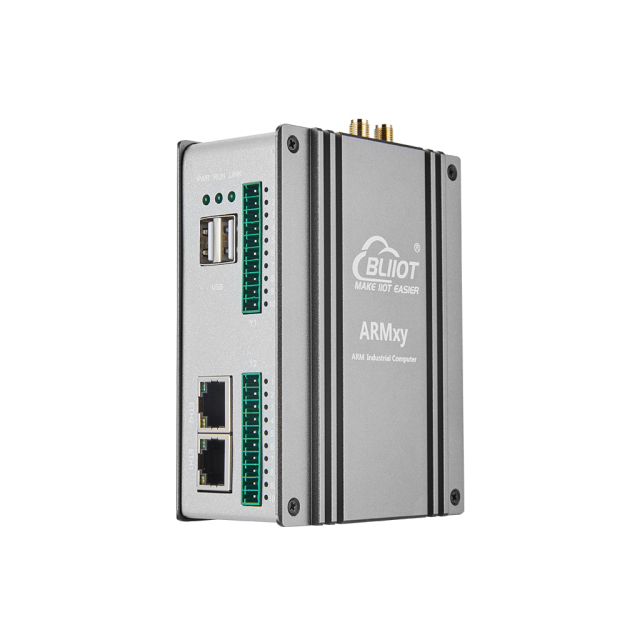

BL361	1x10/100/1000M,1x10/100M	2	X	1x6PIN	X	42x83x110mm
BL361A	1x10/100/1000M,1x10/100M	2	X	1x20PIN	X	42x83x110mm
BL361B	1x10/100/1000M,1x10/100M	2	X	1x20PIN	2	48x83x110mm

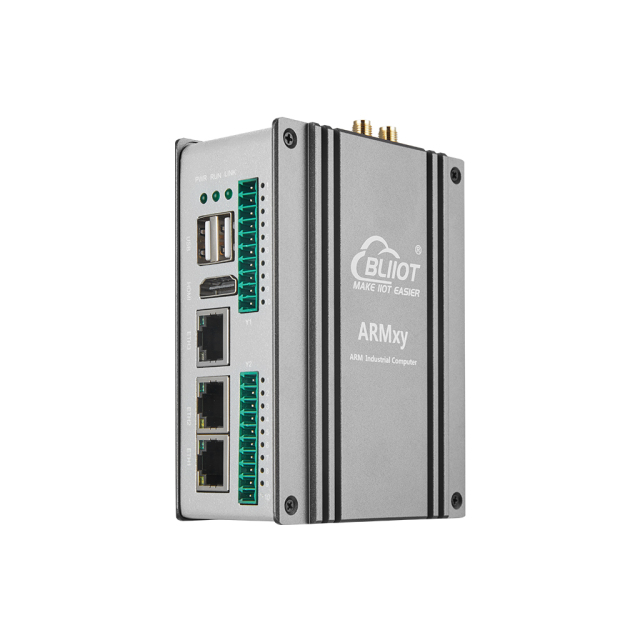

BL362	1x10/100/1000M,2x10/100M	2	1	1x6PIN	X	42x83x110mm
BL362A	1x10/100/1000M,2x10/100M	2	1	1x20PIN	X	42x83x110mm
BL362B	1x10/100/1000M,2x10/100M	2	1	1x20PIN	2	48x83x110mm

Model	MCU	Clock Speed	Kernel	eMMC	DDR4	Temperature
SOM360	i.MX8M Mini	1.6GHz	4 x A53 +M4	4GByte	1GByte	-40~85°C
SOM361	i.MX8M Mini	1.6GHz	4 x A53 +M4	8GByte	2GByte	-40~85°C

Model	RS232/RS485	CAN	DI	DO	GPIO	PIN
X10	2	x	x	x	x	6PIN
X11	x	2	x	x	x	6PIN
X12	1	1	x	x	x	6PIN
X13	x	x	2	2	x	6PIN
X14	x	x	4	x	x	6PIN
X15	x	x	x	4	x	6PIN
X16	x	x	x	x	4	6PIN
X20	4	x	x	x	x	10PIN
X21	3	1	x	x	x	10PIN
X22	2	2	x	x	x	10PIN
X23	4	x	4	4	x	20PIN
X24	3	1	4	4	x	20PIN
X25	2	2	4	4	x	20PIN
X26	2	x	8	4	x	20PIN
X27	1	1	8	4	x	20PIN
X28	2	x	12	x	x	20PIN
X29	1	1	12	x	x	20PIN
X30	x	x	x	x	16	20PIN

Model	Description	Model	Description
Y01	4xDI+4xDO(NPN)	Y41	4xAO, 0~20mA/4~20mA
Y02	4xDI+4xDO(PNP)	Y43	4xAO, 0~5V/0~10V
Y11	8xDI(NPN)	Y46	4xAO, ±5V/±10V
Y12	8xDI(PNP)	Y51	2xRTD, 3-Wire PT100
Y13	8xDI(Dry Contact)	Y52	2xRTD, 3-Wire PT1000
Y21	8xDO(PNP)	Y53	2xRTD, 4-Wire PT100
Y22	8xDO(NPN)	Y54	2xRTD, 4-Wire PT1000
Y24	4xDO(Relay)	Y56	Resistance Measurement
Y31	4xAI, Single-ended, 0~20mA/4~20mA	Y57	Voltage Measurement
Y33	4xAI, Single-ended, 0~5V/0~10V	Y58	4xTC
Y34	4xAI, Differential, 0~5V/0~10V	Y63	4xRS485 or RS232
Y36	4xAI, Differential, ±5V/±10V	Y95	4xPWM Output(NPN) + 4xPulse Counter Input
Y37	4xIEPE	Y96	4xPWM Output(PNP) + 4xPulse Counter Input

Hardware	Parameters
CPU	NXP i.MX 8M Mini Quad, 14nm FinFET Process
	4x ARM Cortex-A53 (64-bit), clock speed 1.6GHz, supports floating-point operations
	ARM Cortex-M4, dedicated real-time processing unit, clock speed 400MHz
	GPU: GC320 2D, GCNanoUltra 3D graphics accelerator, supports OpenGL ES 1.1/2.0, OpenVG 1.1
	Encoder: Supports 1080P@60fps H.264
	Decoder: Supports 1080P@60fps H.265, 1080P@60fps H.264
ROM	4/8GByte eMMC
RAM	1/2GByte DDR4
ETH	RJ-45, 1~3, 1x10/100/1000M and 2x10/100M adaptive, ESD Level 3, EFT Level 3
USB	2x USB 2.0 HOST (USB1, USB2), speed up to 480Mbps, ESD Level 3
HDMI	1x HDMI 2.0, supports 1080P@60fps
I/O Slot	X series I/O board slot: 1, support RS485, CAN, RS232, RS422, DI, DO, GPIO, etc; Y series I/O board slot: 2, support RS485, CAN, RS232, RS422, DI, DO, Relay output, AI, AO, PT100, PT1000, TC, etc.
LED	1xpower indicator light
LED	2xuser-programmable indicator light
Mini PCIe	1, Supports Bluetooth, Wi-Fi, 4G module, etc.
SIM Slot	1 slot, NANO
Antenna	2, For 4G/Wi-Fi/GPS
Debug	1x Micro USB debug port
SD Slot	1
Reset	1 reset button
Watchdog	Onboard independent hardware watchdog
Power	Rated DC 24V, supports wide voltage range of 12-24VDC Equipped with reverse polarity protection and overcurrent protection 2-pin terminal block with screw terminals
Grounding	1-pin GND terminal
Installation	DIN35 rail mounting, wall mounting
Material	Aluminum alloy casing + stainless steel
Dimension	110x83x42mm or 110x83x48mm
