Reliable field control
Control 16 discrete loads or automation devices through isolated digital output channels in one compact module.
BL335
N Series Distributed I/O
Switch. Isolate.
Control.

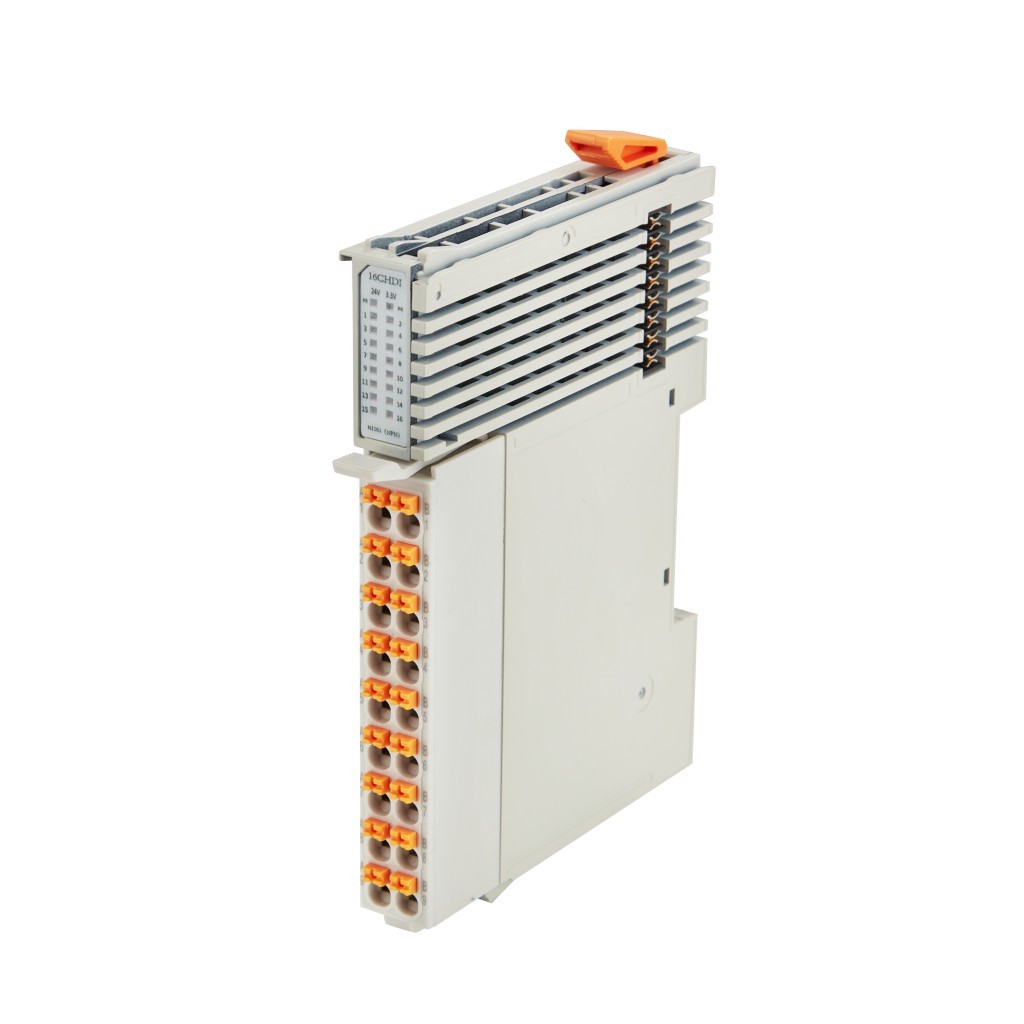

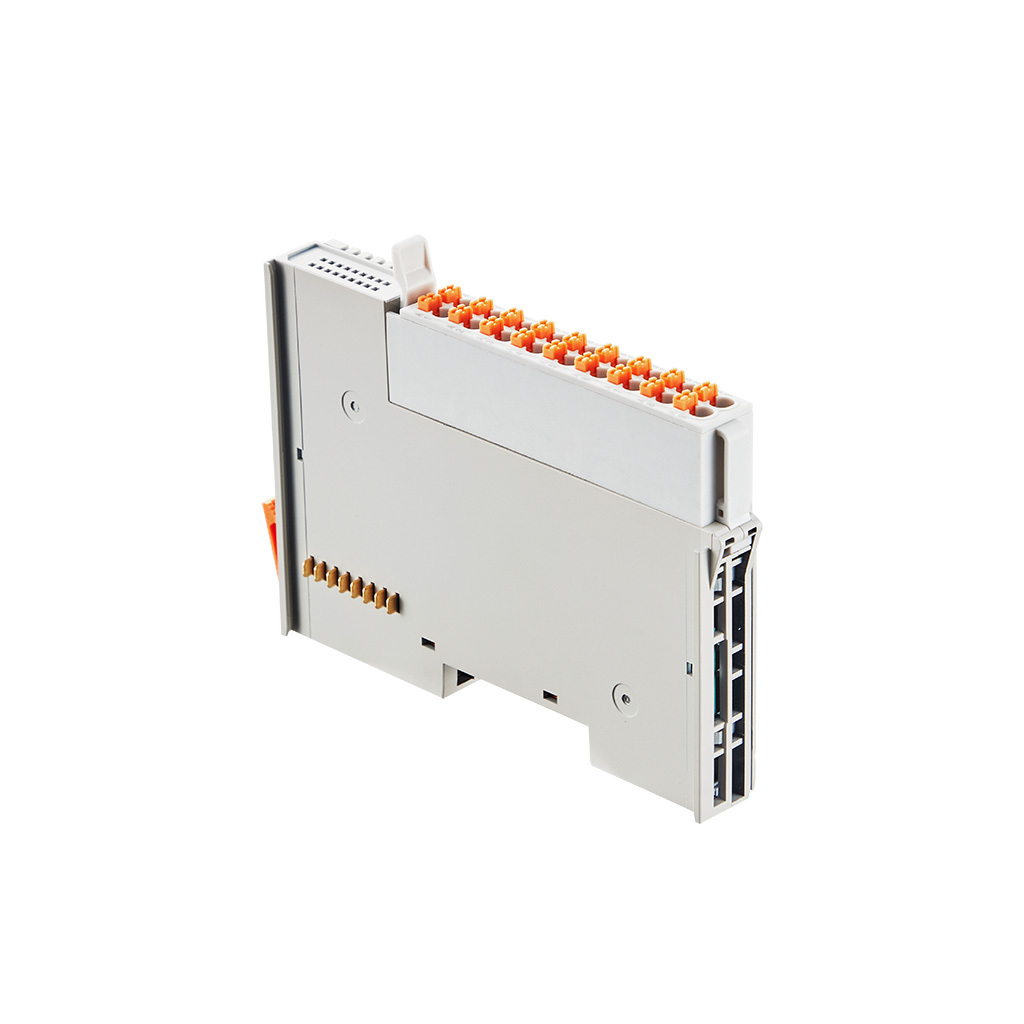

N216x digital output modules provide 16 isolated output channels. Select N2161 for PNP high-level active 24 VDC output or N2162 for NPN low-level active 0 VDC output.
Control industrial automation equipment with individual output LED indication and a maximum output current of 200 mA per channel.
16Digital output channels
2Output signal versions
200 mAMaximum per channel
15.4 mmCompact module width
16-channel outputDO1 to DO16 for discrete field control.
N2161 / N2162PNP high-level and NPN low-level output versions.
DIN-35 mountBuilt for distributed industrial I/O systems.
Technical specifications
N216x technical specifications.
Models, output characteristics, wiring requirements, electrical isolation, environmental ratings, dimensions, terminal assignment, and N-Series system compatibility.
16Digital output channels
200 mAMaximum output current per channel
2 kVrmsElectrical isolation
DIN-35Industrial rail installation
N2161 vs. N2162
N2161 provides PNP high-level active 24 VDC output. N2162 provides NPN low-level active 0 VDC output.
| Selection point | N2161 | N2162 |
|---|---|---|
| Output type | PNP / sourcing | NPN / sinking |
| Active level | High-level active | Low-level active |
| Active output | 24 VDC | 0 VDC |
| Channels | 16 channels | 16 channels |
| Maximum current | 200 mA per channel | 200 mA per channel |
Electrical specifications
Electrical and indication data for N2161 and N2162.
01
ModelsN2161 PNP high-level active / N2162 NPN low-level active
Digital output channels16 channels, DO1 to DO16
Active outputN2161: 24 VDC; N2162: 0 VDC
Maximum output current200 mA per channel
Internal bus power5 VDC, 23 mA at 5 VDC
Electrical isolation2 kVrms
Power indicationLeft P: 24 V power; right P: 3.3 V power; red LED on means normal
Channel indicationDO1 to DO16 green LEDs; on for logic 1 and off for logic 0
Wiring and installation
Connection and mounting data for panel integration.
02

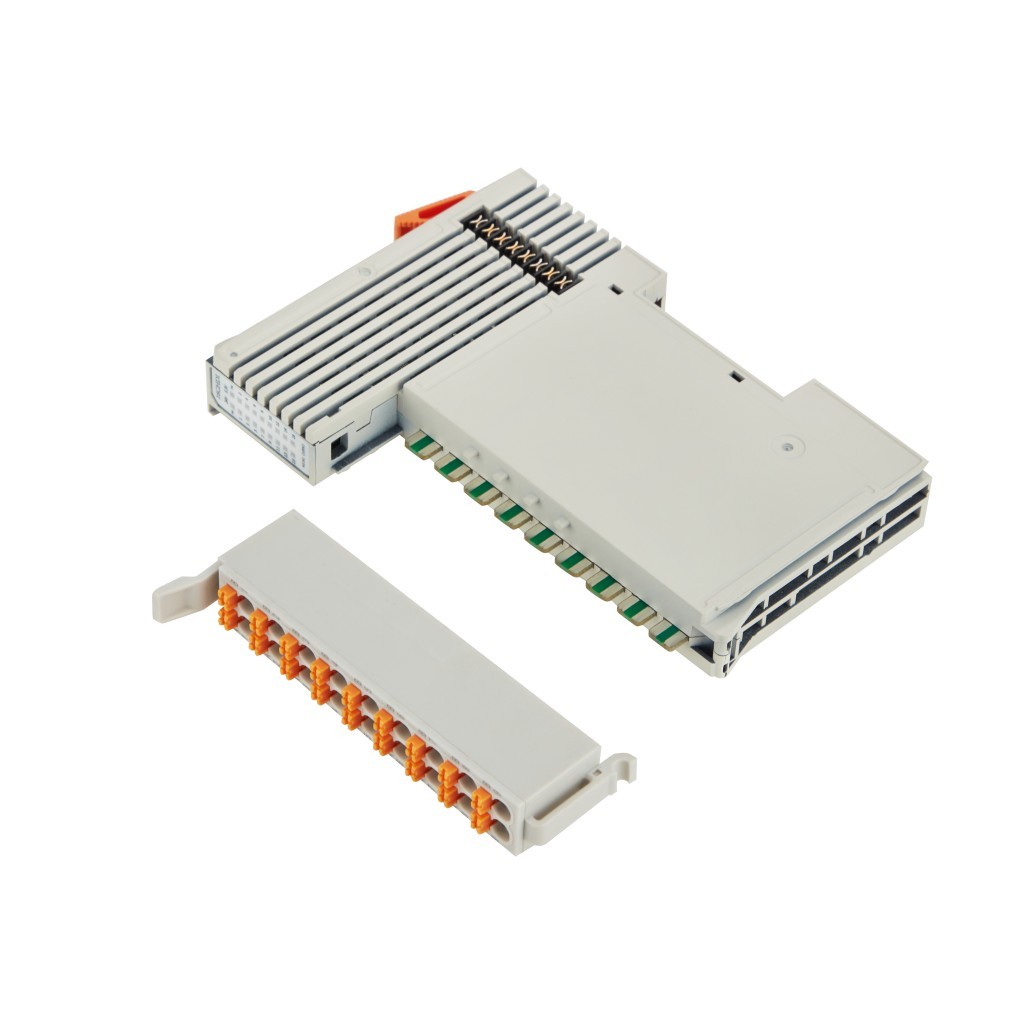

Terminal designSpring-cage terminals; one conductor per spring terminal
Supported conductor typesSolid, stranded, and fine-stranded wire
Multiple-conductor ruleJoin multiple conductors at one point before connection
Wire size0.3 to 2.5 mm² / AWG 22 to 14
Recommended stripping length8 to 9 mm / 0.33 in
Cable requirementUse shielded cable
Terminal assignmentA1/B1 DO1/DO2; A2/B2 DO3/DO4; A3/B3 DO5/DO6; A4/B4 DO7/DO8; A5/B5 DO9/DO10; A6/B6 DO11/DO12; A7/B7 DO13/DO14; A8/B8 DO15/DO16; A9/B9 COM/PE
InstallationIEC 60715 DIN-35 rail mounting
Environmental performance
Operating limits and industrial protection information.
03
Operating temperature-20°C to 55°C
Storage temperature-40°C to 70°C
Relative humidity5% to 95%, non-condensing
Operating altitude0 to 2,000 m
Protection ratingIP20
EMC protectionIEC 61000-4-2 (ESD) Level 2 and IEC 61000-4-5 (Surge) Level 2
Mechanical and system data
Physical dimensions and requirements for an N-Series station.
04
Dimensions15.4 × 104.6 × 74.9 mm
Weight71.2 g
Internal bus8 gold-plated data contacts; communication and system power are provided through the internal bus
Required couplerA suitable N-Series fieldbus coupler, such as a BL210 Series coupler
Station arrangementI/O modules may be combined in different sequences without grouping by module type
Installation sequenceInstall from the coupler left to right; align the module guides, press into position, lock the rail latch, and install an end cover on the final module
RemovalUnlock the rail latch with a flat-blade screwdriver and pull the module away from the DIN rail; data and power contact connections are then disconnected
Clear diagnostics

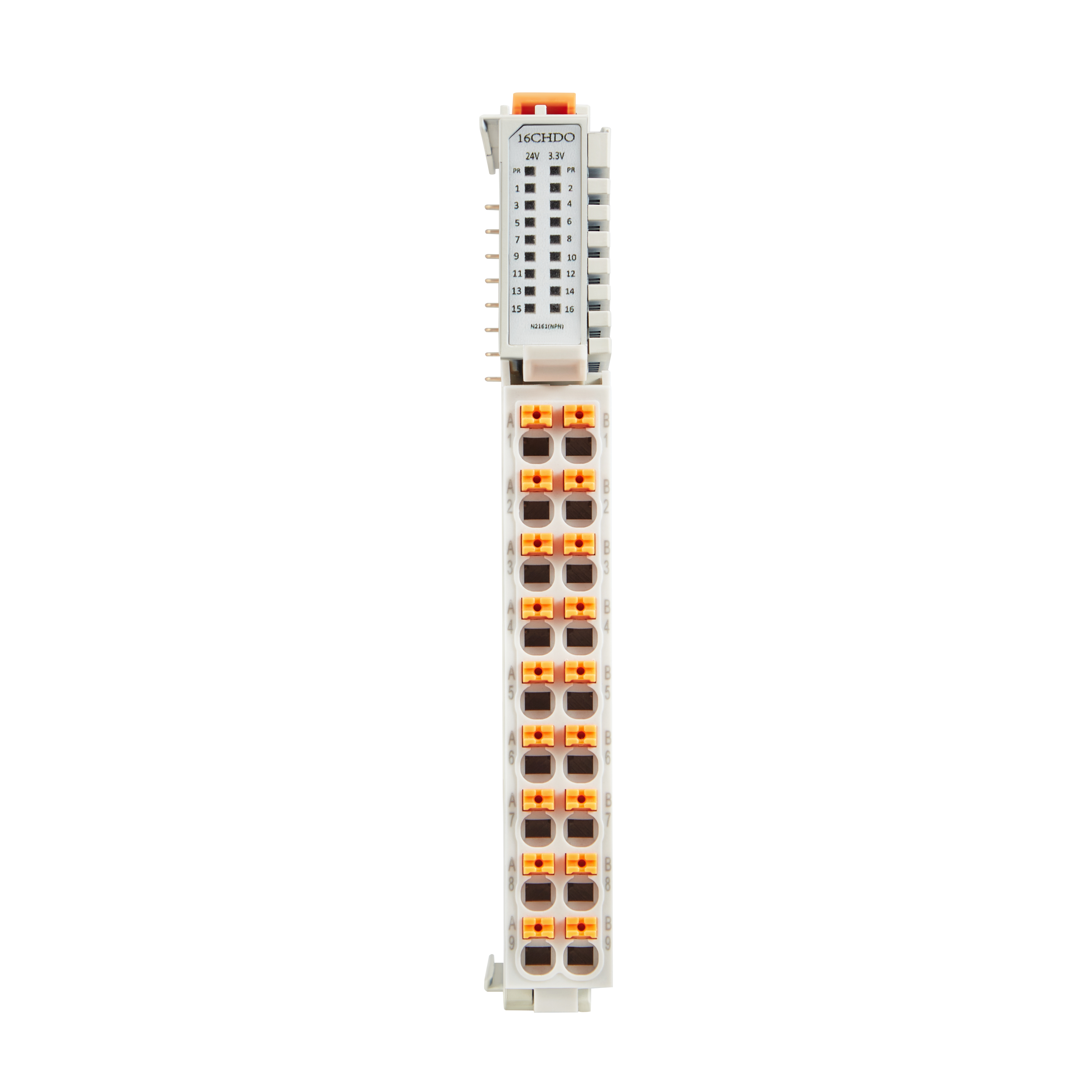

Two red power indicators and 16 green output LEDs make power and logic status easy to verify during commissioning and troubleshooting.
Part of a platform
N216x is an optional module for the N-Series distributed I/O system and must be used with a suitable fieldbus coupler, such as a BL210 Series coupler.
What makes N216x different
16 outputs. Two signal modes. Industrial reliability.
The N216x combines 16 digital output channels, two output versions, 200 mA maximum current per channel, individual channel LEDs, 2 kVrms isolation, spring-cage wiring, and industrial EMC protection.
16-channel control
Control DO1 to DO16 industrial field outputs in a compact 15.4 mm-wide module.
Two output types
Select N2161 for PNP high-level active 24 VDC output or N2162 for NPN low-level active 0 VDC output.
Spring-cage wiring
Connect solid, stranded, or fine-stranded conductors from 0.3 to 2.5 mm² using secure spring-cage terminals.
Industrial-grade design
2 kVrms isolation, IP20 protection, EMC protection, and -20°C to 55°C operation.
N216x models
Choose PNP or NPN output.
N2161 provides high-level active 24 VDC output, while N2162 provides low-level active 0 VDC output.
N2161 · PNP Output
High-level active, 24 VDC output
Designed for 16-channel PNP digital output. The active output is 24 VDC, with a maximum output current of 200 mA per channel.
16Output channels
200 mAMaximum per channel
24 VDCActive output level
DO1–DO16Individual LED indicators
Output moduleField device
Controller
24 VDC
N2161 · PNP high-level active output
Connection and installation
Terminal assignment and module installation.
Use the defined DO, COM, and PE terminals, then install the module on a compliant DIN-35 rail as part of the N-Series station.
Terminal assignment
A1 / B1 to A4 / B4DO1 / DO2 through DO7 / DO8.
A5 / B5 to A8 / B8DO9 / DO10 through DO15 / DO16.
A9 / B9COM / PE.
Output versionsN2161 outputs 24 VDC when active; N2162 outputs 0 VDC when active.
Installation and internal bus
Rail and sequenceMount on an IEC 60715 DIN-35 rail and assemble modules from the coupler left to right.
Insert the moduleAlign the spring tongues with the groove, keep the rail latch unlocked, press the module into position, and lock the latch.

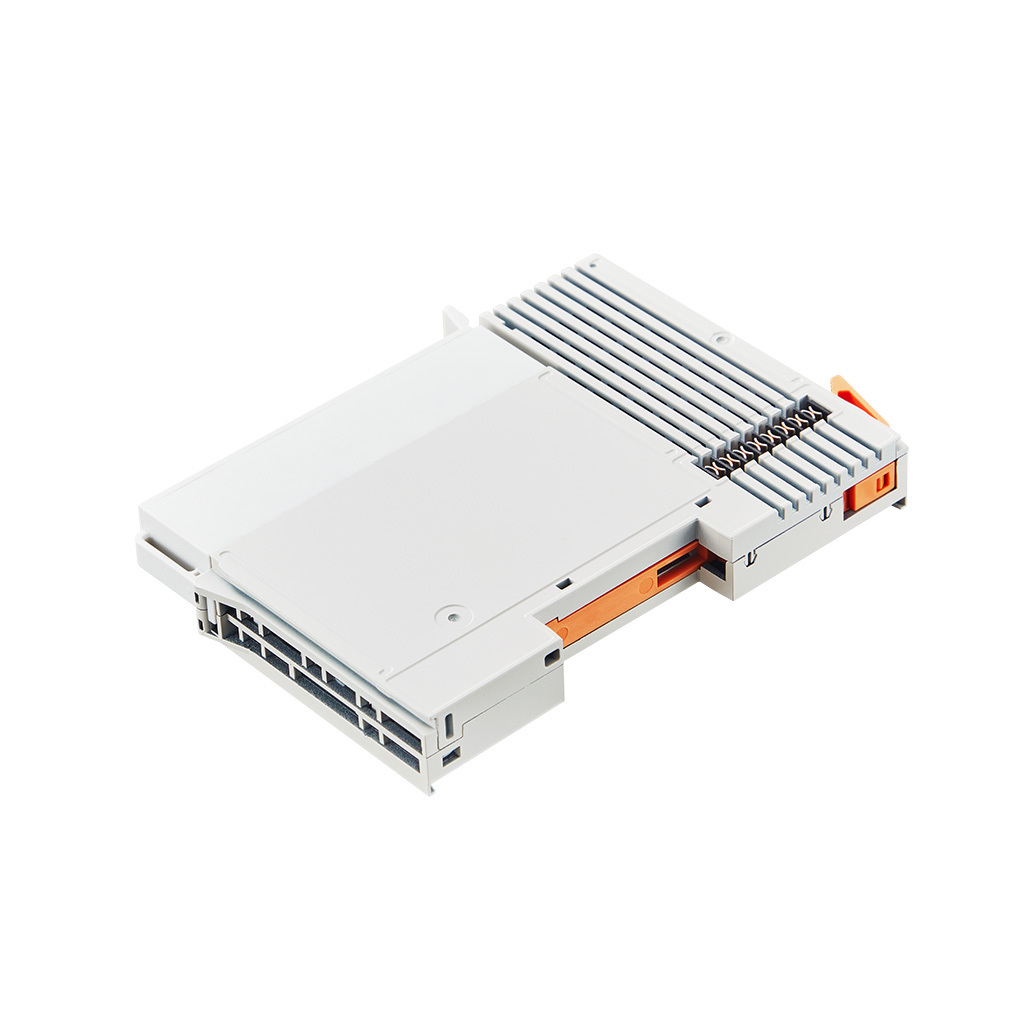

Data and power contactsEight gold-plated data contacts provide communication and system power through the internal bus.
End cover and removalInstall an end cover on the final module. To remove a module, lift the rail latch with a flat-blade screwdriver and pull it away from the rail.
Use shielded cable, one conductor per spring terminal, 0.3 to 2.5 mm² wire, and an 8 to 9 mm stripping length.
N-Series module family
More N-Series I/O module options.
The N-Series includes digital input, digital output, analog input, analog output, RTD, temperature, pulse, and power modules.

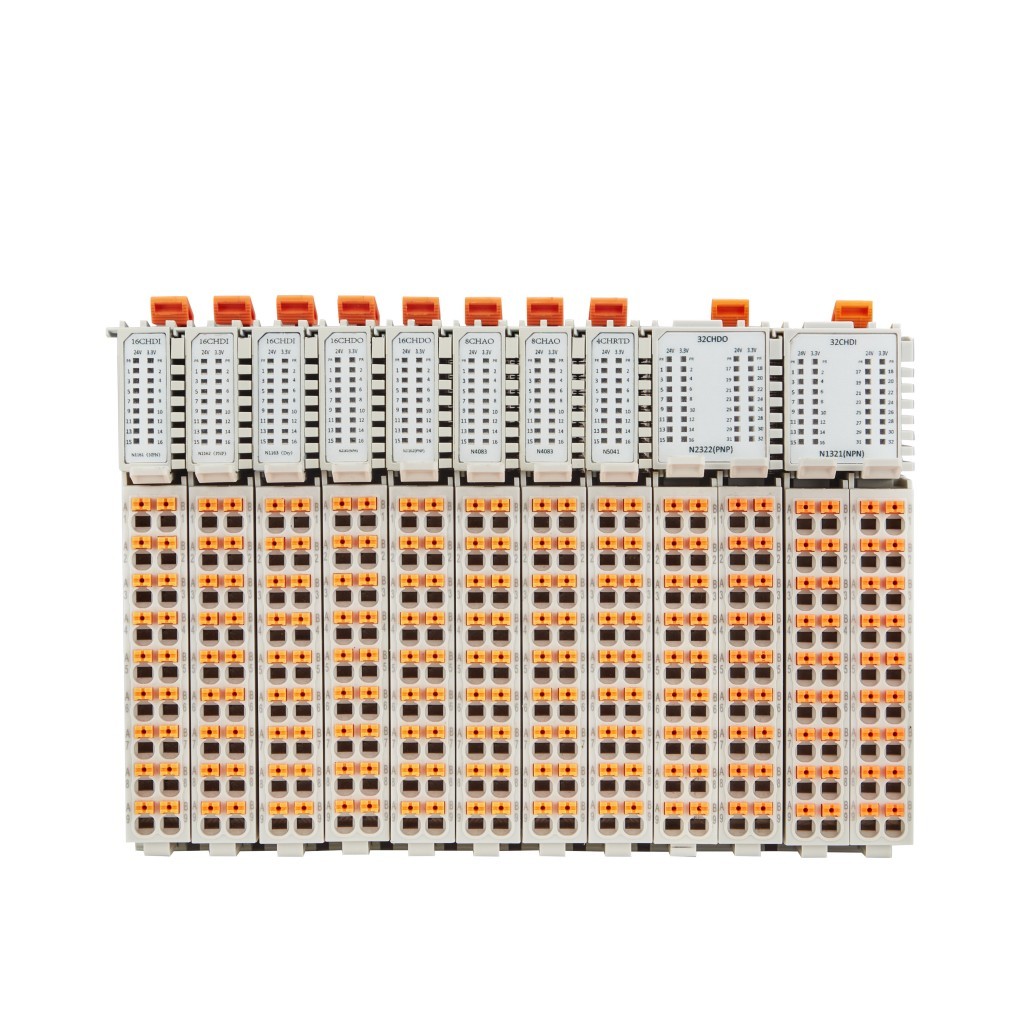

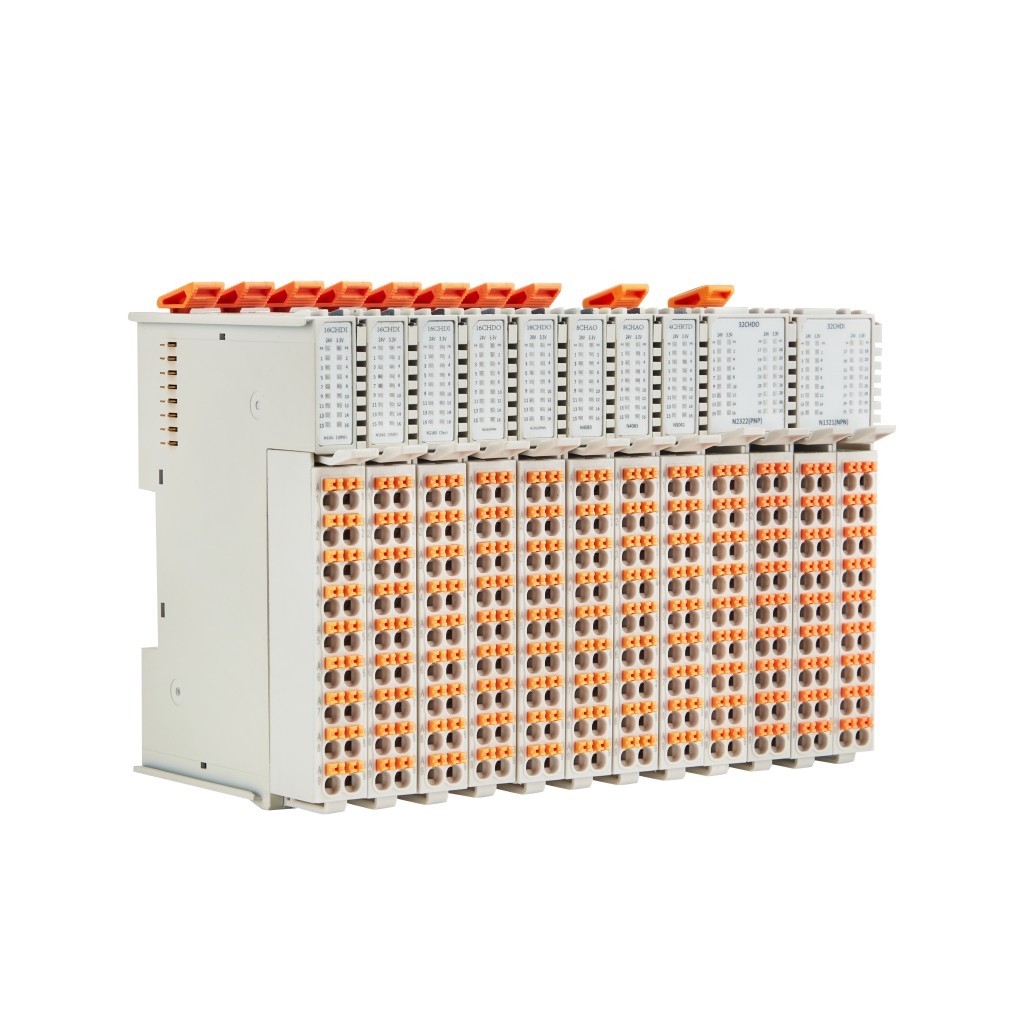

I/O modules can be arranged in different combinations within the distributed I/O station without grouping them by module type.
26 modules · 8 categories
6 modules
DI
Digital input options for NPN, PNP, and dry-contact sensing.
-
N116116CH DI Module (Low-Level Trigger / NPN)
-
N116216CH DI Module (High-Level Trigger / PNP)
-
N116316CH DI Module (Dry Contact)
-
N132132CH DI Module (Low-Level Trigger / NPN)
-
N132232CH DI Module (High-Level Trigger / PNP)
-
N132332CH DI Module (Dry Contact)
5 modules
DO
Digital and relay output options for discrete control.
-
N20848CH Relay Output Module
-
N2161N216x16CH DO Module (PNP / 24 VDC Active)
-
N2162N216x16CH DO Module (NPN / 0 VDC Active)
-
N232132CH DO Module (PNP)
-
N232232CH DO Module (NPN)
3 modules
AI
Analog input options for current and voltage acquisition.
-
N30464CH 16-bit AI Module, Differential Input, ±5V / ±10V
-
N30818CH 16-bit AI Module, Single-Ended Input, 0/4-20mA
-
N30838CH 16-bit AI Module, Single-Ended Input, 0-5V / 0-10V
2 modules
AO
Analog output options for current and voltage control.
-
N40818CH 16-bit AO Module, 0/4-20mA Output
-
N40868CH 16-bit AO Module, ±5V / ±10V Output
4 modules
RTD
RTD modules for PT100 and PT1000 temperature sensing.
-
N50414CH RTD Module, three-wire PT100
-
N50424CH RTD Module, three-wire PT1000
-
N50434CH RTD Module, four-wire PT100
-
N50444CH RTD Module, four-wire PT1000
2 modules
Temperature
Dedicated temperature modules for NTC and thermocouple signals.
-
N50858CH NTC Module
-
N50888CH TC Module
3 modules
Pulse
Pulse counting and pulse-output control modules.
-
N90813CH Pulse Counter + 5×DI
-
N90826CH Pulse Output + 2×DO
-
N90832CH Pulse Output (Pulse Count Control) + 4×DI + 2×DO
1 module
Power
Additional power support for larger N-Series stations.
-
N7021Power Module
Important system note
When the number of selected N-Series I/O boards exceeds 20, an additional power module is required. If the number is less than 20, no extra power module is needed.
Recommended users
Who should use the N216x digital output module?
N216x fits distributed I/O installations that require compact, isolated 16-channel PNP or NPN output control.
Maintenance teams
Use the individual DO indicators to check output status and quickly locate wiring or load-control problems.
System integrators
Select N2161 PNP or N2162 NPN according to the field-device output wiring requirement.
OEM manufacturers
Standardize discrete actuator, relay, indicator, and automation-device control in machines and equipment.
Distributed I/O projects
Use N216x with a suitable N-Series fieldbus coupler, such as a BL210 Series coupler.
