High‑Speed EtherCAT. Real‑Time Performance. — Built for motion control and synchronized automation.
You are building a high‑performance automation system — semiconductor equipment, lithium battery manufacturing, printing presses, or multi‑axis robotics. Your control network needs microsecond cycle times, precise synchronization, and deterministic real‑time communication.
The BL214 is built for exactly these demands. It is a native EtherCAT slave coupler that communicates using the industry's fastest real‑time Ethernet protocol. With support for up to 1024 bytes of input and 1024 bytes of process data, and the ability to expand to 32 N Series I/O modules, the BL214 brings distributed I/O to your EtherCAT network without compromising on speed.
Think of it as your high‑speed I/O front end — cycle times as low as 100 µs, jitter‑free synchronization, and seamless integration with TwinCAT, Codesys, Omron, and other EtherCAT masters.
The BL214 is a standard EtherCAT slave device. It supports distributed clocks (DC) for precise synchronization across multiple nodes. Whether you are coordinating servo drives, capturing high‑speed digital inputs, or controlling fast analog outputs, the BL214 keeps everything in sync — with microsecond precision.
Supports up to 1024 bytes of input data and 1024 bytes of output data. Enough for complex applications with hundreds of I/O points. The high‑speed backplane bus handles up to 32 N Series I/O modules without bottlenecking your control loop.

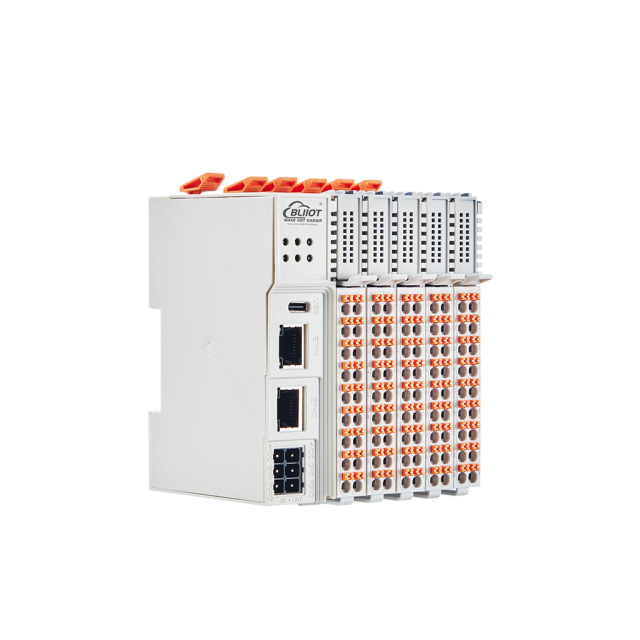

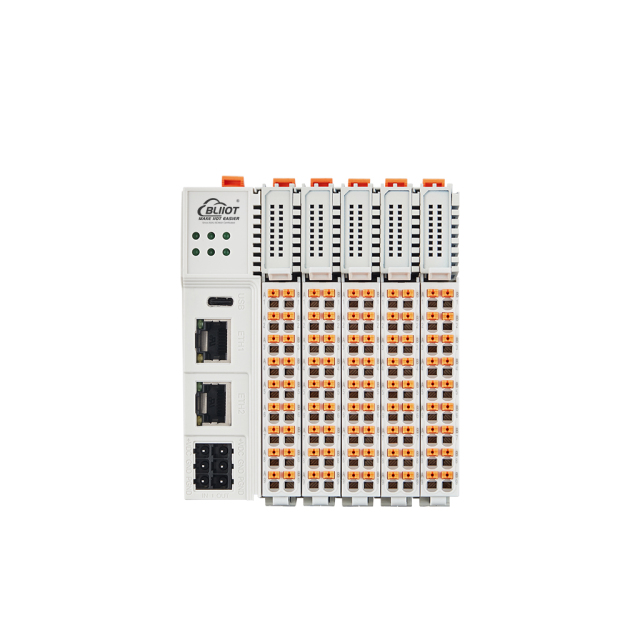

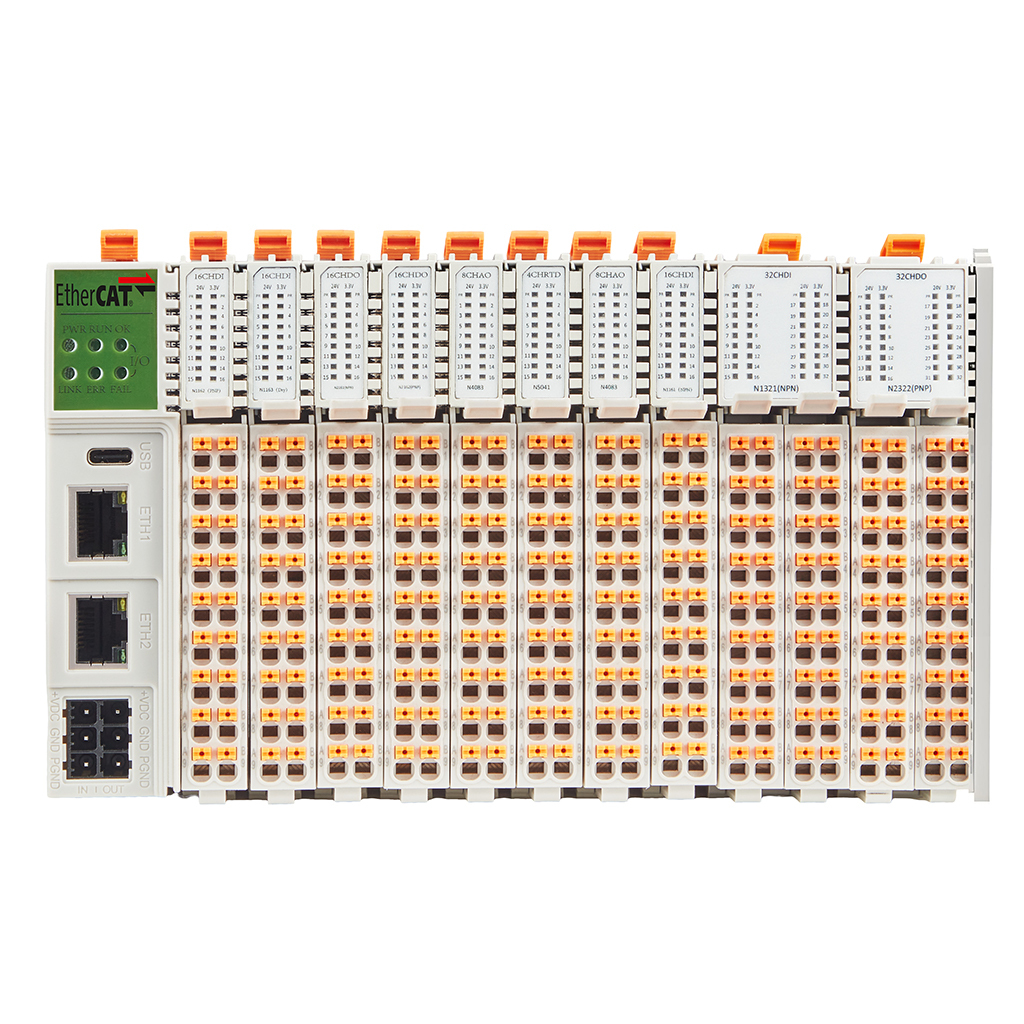

Add up to 32 N Series I/O modules to a single BL214. Digital (DI/DO), analog (AI/AO), RTD temperature, thermocouple, and high‑speed pulse modules — all on one EtherCAT node. Mix and match based on your application needs.

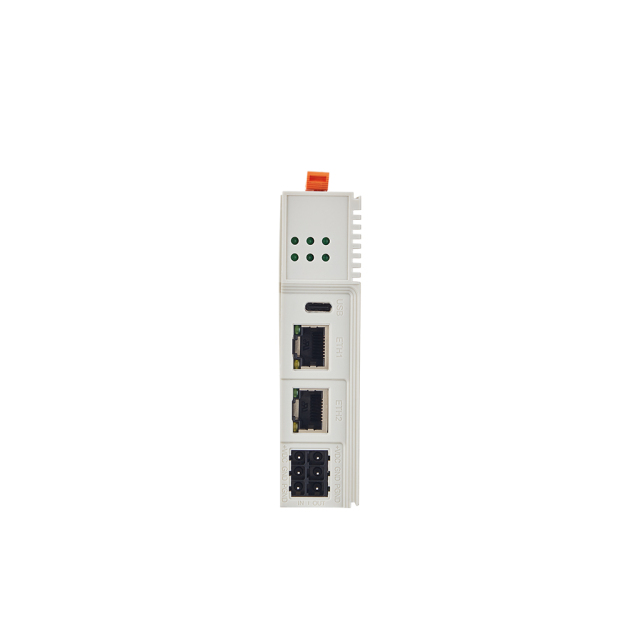

Two RJ45 ports with built‑in switch support standard EtherCAT line topology. Daisy‑chain multiple BL214 couplers or other EtherCAT devices without an external switch. Less hardware. Faster installation. Lower cost per node.
Traditional SPI‑based I/O expansion cards cannot handle the noise and vibration of real factory floors. The BL214 uses industrial fieldbus technology: auto‑reconnect after network loss, automatic data frame correction, fault recovery without rebooting. Your production line keeps running. Your engineers stay at their desks.
Coating and winding machines require precise coordination between multiple I/O points and servo systems. The BL214's distributed clock ensures synchronization across the entire line — improving equipment efficiency by over 20% and reducing commissioning time.
Wafer handling, cleaning, and inspection equipment need I/O modules deployed at each station. The BL214 lets you place I/O exactly where you need it — collecting position and limit signals, controlling pneumatic valves and cylinders with microsecond‑accurate timing.
Whether it is multi‑axis coordination for industrial robots (KUKA, FANUC) or precise control of a robotic hand, EtherCAT is the backbone. The BL214 brings distributed I/O into the same synchronized timing domain as your servo drives.
High‑speed sleeving machines and labelers benefit from EtherCAT's real‑time performance. Users have reported doubled production capacity and 70% energy reduction after migrating to EtherCAT‑based control.
Welding lines with multiple robotic stations require tight coordination. The BL214 ensures I/O signals from each station are captured and acted upon within the same control cycle — improving weld quality and line throughput.
Material handling, assembly stations, environmental monitoring, building automation — any application that needs distributed I/O with real‑time performance. The BL214 delivers high value at a competitive price point.
📋 For complete technical specifications and N Series I/O module selection, please see the Distributed I/O Selection Guide
| Model | BL214 |
| Description | EtherCAT Coupler, dual RJ45, high‑speed backplane, expandable with N Series I/O |
