Authorized 200 users open gate at the specified time!
GSM Gate, Barrier, Shutter, Garage Door and Door opener
Open gate or garage door with a FREE call from your mobile phone!
Remote switching machines ON/OFF with a FREE call from your mobile phone!
Remote monitoring the Gate, Barrier, Shutter, Garage Door OPEN/Close Status!
The RTU5034 is an powerful remote relay controller, it is a very simple device which can be used for authorized door access, controlling gates, switching of remote equipments, car parking systems. Actually the RTU5034 can be used in places which require to turn ON/OFF your system, machines, equipments remotely with a FREE call from your mobile phone.
Just dial from Authorized User number at the specified time then the Barrier and doors are opened, or the machine are turn on or off by the RTU5034. There are no call costs, the RTU5034 rejects the call from authorized number then carries out the turn ON/OFF action.
Moreover, the user can be authorized at the specified time to operate it, after timeout, will automatically change to unauthorized type.
Key Features
Setting
|
GSM Frequency |
Quad-band 850/900/1800/1900MHz, 3G 4G is optional. |
|
Digital Output |
NC/NO dry contact, 3A/240VAC |
|
DC Power supply |
9~24VDC/2A |
|
Power consumption |
12V input Max. 50mA/Average 25mA |
|
SIM Card |
Support 3V SIM Card |
|
Antenna |
50Ω SMA Antenna interface |
|
Temperature range |
-20~+60 °C |
|
Humidity range |
Relative humidity 90% |
|
Exterior dimension |
W90mm*D70mm*H27mm |
|
Net Weight |
180 g |
|
Relay Switch,Gate Opener(RTU5024/RTU5034/RTU5025) |
|||||||||
|
Model |
Digital Input |
Relay Output |
Function |
||||||
|
RTU5024 |
X |
1 |
1.200 authorized phone numbers can be configured at the specified time; |
||||||
|
RTU5034 |
X |
1 |
Same function as RTU5024, the difference is that RTU5024 is metal case and RTU5034 is plastic case. |
||||||
|
RTU5025 |
2 |
1 |
1.3000 authorized phone numbers can be configured at the specified time； |
||||||

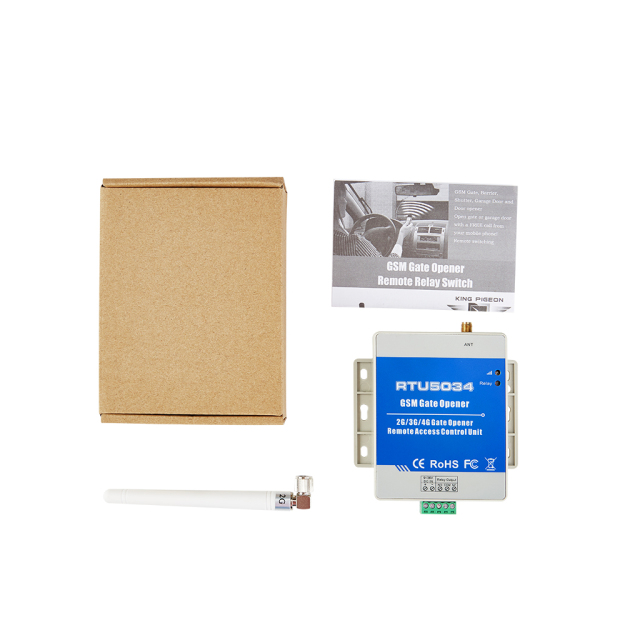

Packaging
