Intelligent Protocol Conversion
Industrial-Grade Reliability
Flexible Interface Configuration

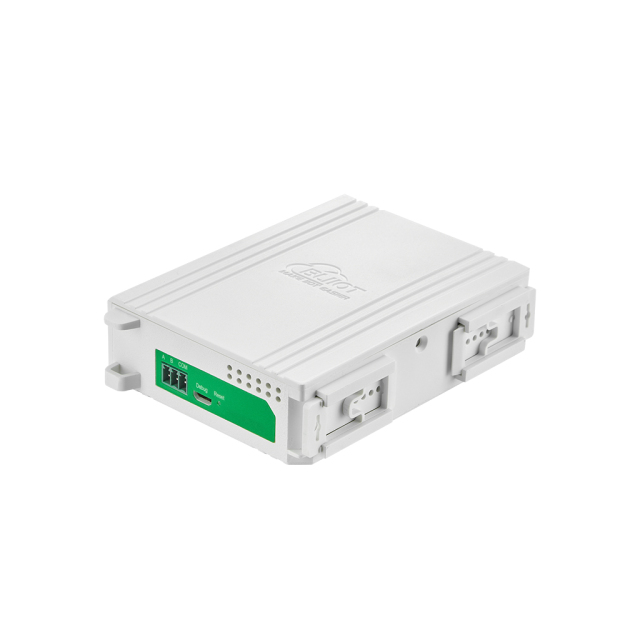

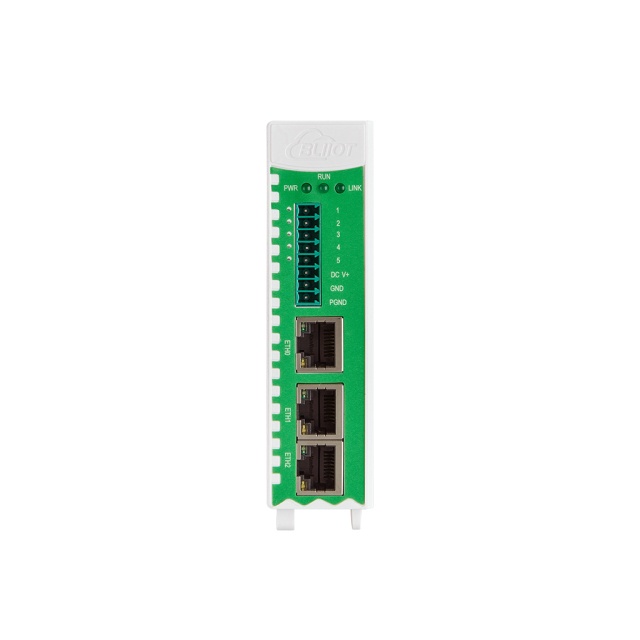

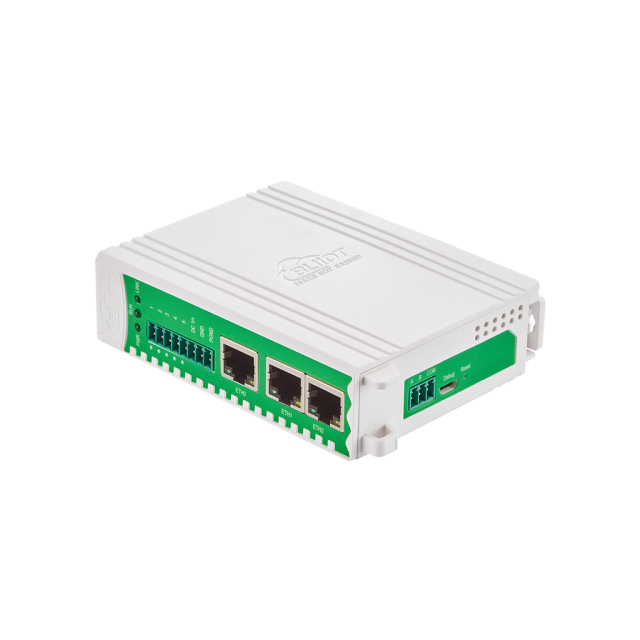

Multi-Port Ethernet:
ETH0: PC/Router connection (configuration port)ETH1: Cascading expansionETH2: Direct EtherCAT device linkSerial Ports: 1×RS232 + 2×RS485, adjustable baud rate (2400-115200bps).
Plug-and-Play Configuration
192.168.3.10 (default: admin/no password).TwinCAT 3 Integration: Import XML device description for EtherCAT network expansion in 5 minutes.
Omron NX1P2 Connectivity: Configure via Sysmac Studio for PLC-Modbus device interoperability.
Legacy System Integration: Bridge older Modbus devices to modern EtherCAT master systems.
|
Parameter |
Description |
|
|
Power Supply |
Input Voltage |
DC 9～36V |
|
Power Consumption |
Normal: 100mA@12V, Max: 340mA@12V |
|
|
Protection |
Reverse polarity protection |
|
|
Ethernet Port |
Specification |
3 x RJ45, 10/100Mbps, Adaptive MDI/MDIX |
|
Protection |
Surge ±1kV 1.2/50us (8/20us); ESD ±6kV (contact), ±8kV (air); EFT 1kV 5kHz; |
|
|
Serial Port |
QTY |
1CH RS232, 2CH RS485 |
|
Baud Rate |
2400bps-115200bps |
|
|
Data Bit |
7, 8 |
|
|
Parity Bit |
None, Even, Odd |
|
|
Stop Bit |
1, 2 |
|
|
Protection |
SURGE 1kV 8/20us ESD ±6kV (contact), ±8kV (air); EFT 1kV 5kHz; |
|
|
USB |
QTY |
1 x micro USB |
|
Protection |
Over-current protection |
|
|
Indicator |
PWR |
Always on when device powered on |
|
RUN |
Flickering when system running |
|
|
LINK |
Flickering when Ethernet communication |
|
|
Safety Regulations |
MTBF |
≥100,000 hours |
|
EMC |
IEC 61000-4-2 (ESD) Level 3 |
|
|
IEC 61000-4-4 (EFT) Level 3 |
||
|
IEC 61000-4-5 (Surge)Level 3 |
||
|
Environment |
Working |
-30～55℃, 5～95% RH No condensation |
|
Storage |
-30～70℃, 5～95% RH No condensation |
|
|
Others |
Housing Material |
Plastic |
|
Dimension |
30mmx83mmx110mm(LxWxH) |
|
|
IP Level |
IP30 |
|
|

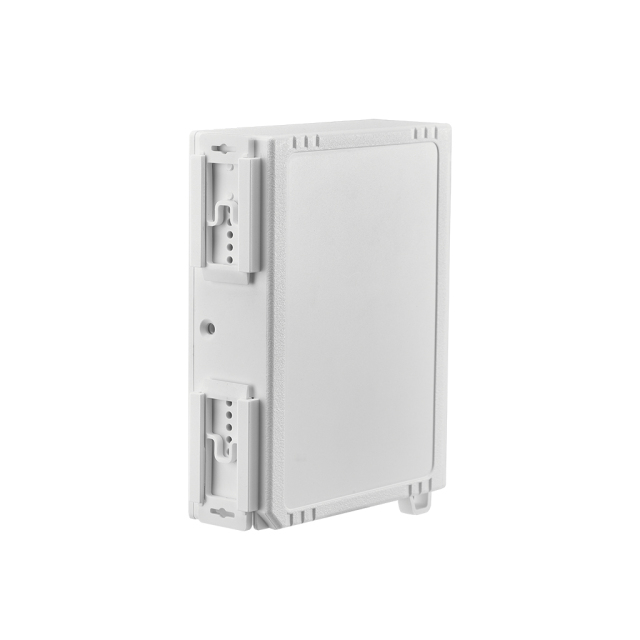

Installation |
DIN Rail Mounting |
|
|
IEC 61000-4-5 (Surge)Level 3 |
||
|
Others |
CE, FCC, RoHs |
|
|
Environment |
Working |
-30～55℃, 5～95% RH |
|
Others |
Housing Material |
Plastic |
|
Size |
30×83×110mm(LxWxH) |
|
|
Protection |
IP30 |
|
|
Mounting |
DIN Rail Mounting |
|
| Speed | 150Mbps (Max) | |
| Distance | Unobstructed/open outdoor coverage up to 20 meters | |
| SSID broadcast switch | Support | |
| Indicator | PWR | Always on when device powered on |
| RUN | Flickering when system running Off when system shutdown |
|
| LINK | Flickering when Ethernet communication; Always on when 4G or WiFi communication; OFF when Ethernet, 4G, WiFi are all disconnected. | |
| Software | Internet Protocol | IPV4, TCP/UDP, DHCP, DNS, etc |
| IP Retrieving | Static IP/DHCP | |
| Transparent Transmission | Support | |
| DNS | Support Domain Name resolution | |
| Configuration | PC software configuration, support WIN 7, WIN 8, WIN 10 and WIN11 | |
| Network Cache | Transmitting: 8Kbyte; Receiving: 8Kbyte | |
| Safety Regulations | EMC | CE, FCC |
| EMS | IEC 61000-4-2 (ESD) Level 3 IEC 61000-4-4 (EFT) Level 3 IEC 61000-4-5 (Surge)Level 3 |
|
| Vibration | IEC60068-2-6 | |
| Environment | Working | -40～85℃, 5～95% RH |
| Storage | -40～85℃，5～95% RH | |
| Others | Housing Material | Plastic |
| Size | 40×83×110mm/30×83×110mm (LxWxH) | |
| Protection | IP30 | |
| Net Weight | 171g/133g | |
| Mounting | DIN Rail Mounting/Wall-mounting |
