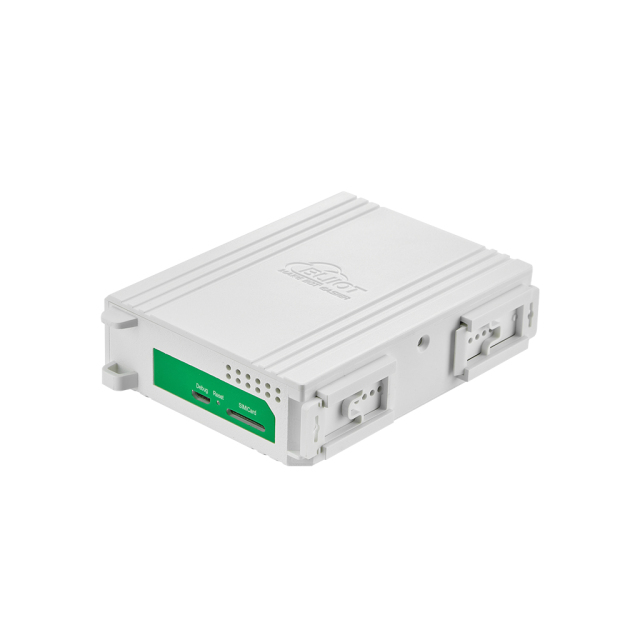

Bidirectional Protocol Conversion
Dual-Channel RS485 Interfaces
Intelligent Data Buffering
Zero-Code Web Configuration
192.168.3.10 (User: admin, No Password)|
Parameter |
Description |
|
|
Power Supply |
Input Voltage |
DC 9～36V |
|
Power Consumption |
Normal: 50mA@12V, Max: 20mA@36V |
|
|

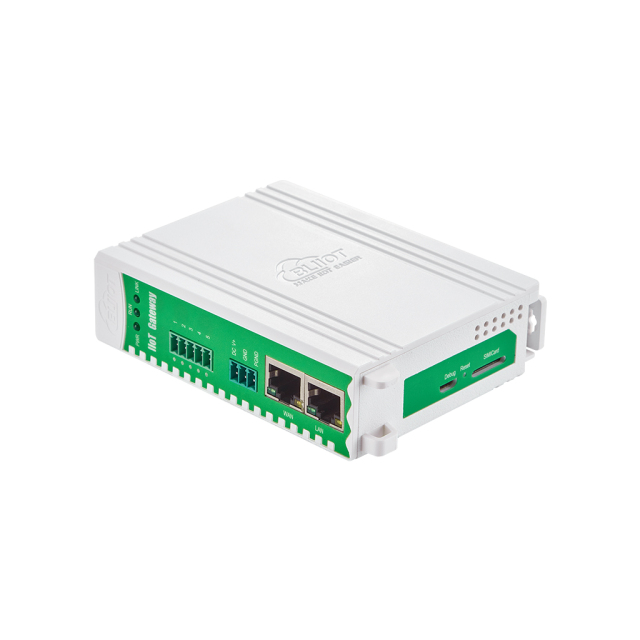

Ethernet Port |
Specification |
2 x RJ45, 2x10/100Mbps |
|
Protection |
ESD: ±6kV(Contact), ±8kV(Air) EFT: 1kV, 5kHz |
|
|
Serial Port |
QTY |
2CH RS485 |
|
Baud Rate |
2400, 4800, 9600, 19200, 38400, 57600, 115200 |
|
|
Data Bit |
8 |
|
|
Parity Bit |
None, Even, Odd |
|
|
Stop Bit |
1, 2 |
|
|
Mode |
RTU Master/Slave |
|
|
Function |
01H, 02H, 03H, 04H, 05H, 06H, 0FH, 10H |
|
|
Connection |
Up to 31 connections to a single serial port |
|
|
Protection |
ESD ±6kV(Contact), ±8kV(Air) EFT ±1kV, 5kHz |
|
|

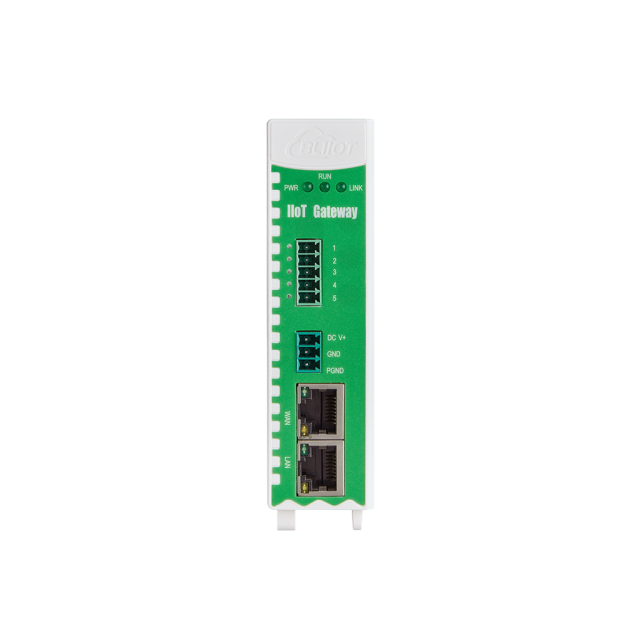

Indicator |
PWR |
Always on when device powered on |
|
RUN |
Flickering when system running |
|
|
LINK |
Flickering when TCP communicating |
|
|
RS485 |
Flickering when communicating |
|
|
Software |
Protocol |
Ethernet/IP, Modbus RTU |
|
Max input/output data volume |
Default bytes "2Bytes" |
|
|
Max Input Bytes ≤496Bytes |
||
|
Max Output Bytes ≤496Bytes |
||
|
File |
EDS |
|
|
Safety Regulations |
EMC |
IEC 61000-4-2 (ESD) Level 3 |
|
IEC 61000-4-4 (EFT) Level 3 |
||
|
IEC 61000-4-5 (Surge)Level 3 |
||
|
Others |
CE, FCC, RoHs |
|
|
Environment |
Working |
-30～55℃, 5～95% RH |
|
Others |
Housing Material |
Plastic |
|
Size |
30×83×110mm(LxWxH) |
|
|
Protection |
IP30 |
|
|

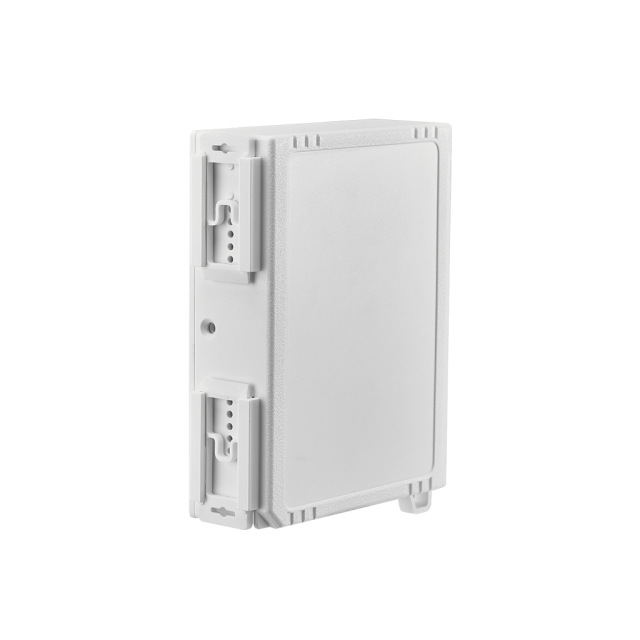

Mounting |
DIN Rail Mounting |
|
|
Protection |
IP30 |
|
|
Mounting |
DIN Rail Mounting |
|
| Speed | 150Mbps (Max) | |
| Distance | Unobstructed/open outdoor coverage up to 20 meters | |
| SSID broadcast switch | Support | |
| Indicator | PWR | Always on when device powered on |
| RUN | Flickering when system running Off when system shutdown |
|
| LINK | Flickering when Ethernet communication; Always on when 4G or WiFi communication; OFF when Ethernet, 4G, WiFi are all disconnected. | |
| Software | Internet Protocol | IPV4, TCP/UDP, DHCP, DNS, etc |
| IP Retrieving | Static IP/DHCP | |
| Transparent Transmission | Support | |
| DNS | Support Domain Name resolution | |
| Configuration | PC software configuration, support WIN 7, WIN 8, WIN 10 and WIN11 | |
| Network Cache | Transmitting: 8Kbyte; Receiving: 8Kbyte | |
| Safety Regulations | EMC | CE, FCC |
| EMS | IEC 61000-4-2 (ESD) Level 3 IEC 61000-4-4 (EFT) Level 3 IEC 61000-4-5 (Surge)Level 3 |
|
| Vibration | IEC60068-2-6 | |
| Environment | Working | -40～85℃, 5～95% RH |
| Storage | -40～85℃，5～95% RH | |
| Others | Housing Material | Plastic |
| Size | 40×83×110mm/30×83×110mm (LxWxH) | |
| Protection | IP30 | |
| Net Weight | 171g/133g | |
| Mounting | DIN Rail Mounting/Wall-mounting |
