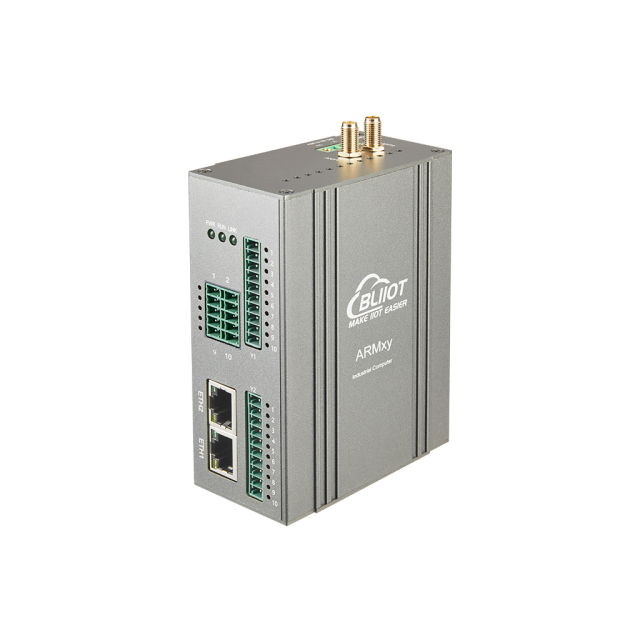

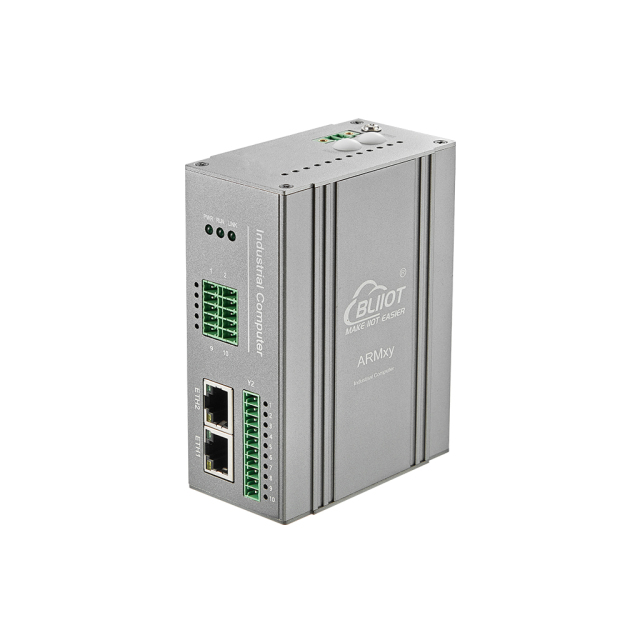

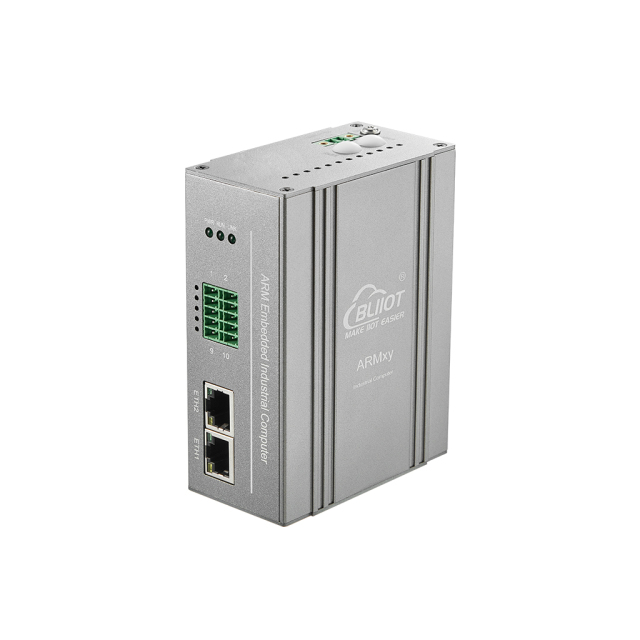

Key Highlights
Typical Applications
|
Item |
Parameters |
Description |
|
System |
CPU |
2 × Cortex-A7, 1.2 GHz |
|
Power |
Input Voltage |
Standard: 9–36 VDC |
|
Input Current |
Standard version: Typical: 240mA@12V, Max: 800mA@12V |
|
|
Reverse Polarity Protection |
Supported |
|
|
Protection |
ESD Level 3, EFT Level 3 |
|
|

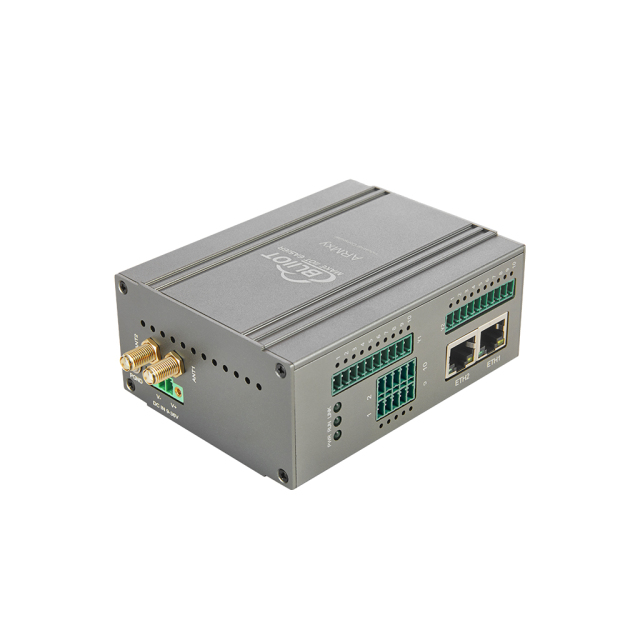

Ethernet Port |
Quantity |
2xLAN |
|
Specification |
RJ45 interface, 10M/100Mbps, auto MDI/MDIX |
|
|
Protection |
ESD Level 3, EFT Level 3 |
|
|
Serial Port |
Quantity |
4 or 8 × RS232/RS485(optional per order) |
|
Baud Rate |
2400bps-115200bps |
|
|
Data Bits |
7, 8 |
|
|
Parity |
None, Even, Odd |
|
|
Stop Bits |
1, 2 |
|
|
Protection |
Isolated protection, ESD Level 3 |
|
|
WiFi(Optionl) |
Quantity |
1 |
|
Type |
SMA female |
|
|
Protocol |
802.11a/b/g/n (mixed) |
|
|
Mode |
STA mode |
|
|
Frequency Bands and Channels |
2.4G Channel 1-13, 5G Channel 36-165 |
|
|
Security |
Open, WPA, WPA2 |
|
|
Encryption |
AES, TKIP, TKIPAES |
|
|
Max Speed |
150 Mbps(MAX) |
|
|
Transmission Range |
Up to 20 meters outdoors in unobstructed/open areas |
|
|
SSID Broadcast Switch |
Supported |
|
|
Cellular Network (Optional) |
Antenna Interface Quantity |
1 |
|
Antenna Interface Type |
SMA female |
|
|
4G Version |
Supported |
|
|
5G Red-CAP |
Supported |
|
|
5G |
Supported |
|
|
SIM Card Slot |
Quantity |
1 |
|
Type |
Drawer slot, supports 1.8V/3V SIM/UIM cards(NANO) |
|
|
Protection |
Built-in 15KV ESD protection |
|
|
USB Interface |
Quantity |
1 × Mini USB |
|
Protection |
Overcurrent protection |
|
|

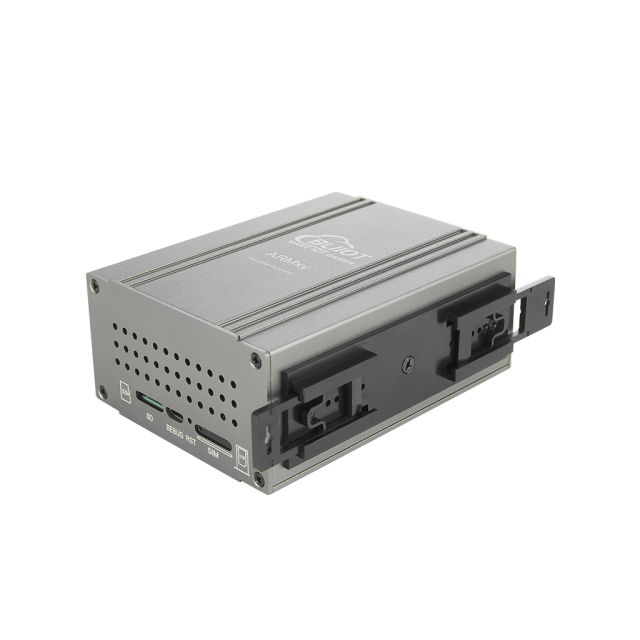

SD Card Slot |
Quantity |
1 |
|
Specification |
Supports SD, SDHC, and SDXC(UHS-I) cards |
|
|

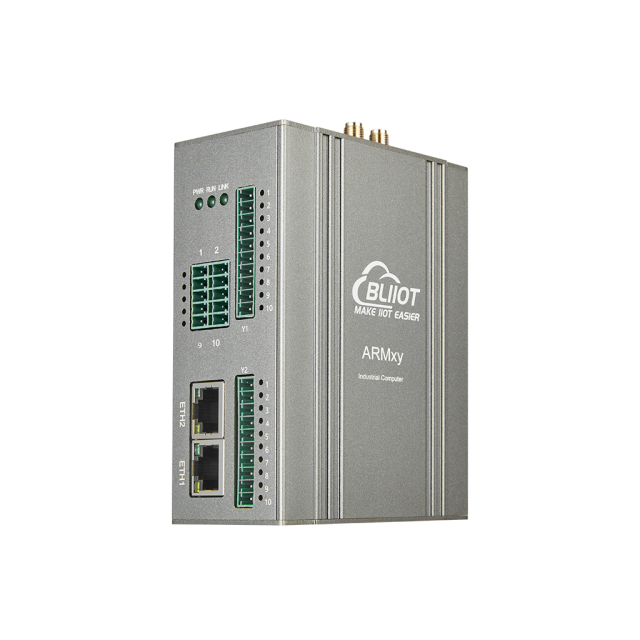

LED Indicators |
PWR |
On when powered, off when no power |
|
RUN |
Blinking when system runs normally; off or steady on when system not running |
|
|
LINK |
Blinking during Ethernet communication; steady on during 4G or WiFi communication; off when no communication |
|
|
Operating Environment |
Operating Temperature |
-20～+65℃ |
|
Storage Temperature |
-40～+85℃ |
|
|
Relative Humidity |
5% to 95% RH(non-condensing) |
|
|
Others |
Reset Button |
1 |
|
Independent Watchdog |
Onboard independent hardware watchdog |
|
|
Enclosure |
Aluminum alloy |
|
|
Dimensions |
Height: 110 mm × Length: 83 mm × Width: 46 mm |
|
|
Protection Level |
IP30 |
|
|
Net Weight |
500g |
|
|
Mounting |
DIN35 rail mounting, wall mounting |
|
|
Software Parameters |
Kernel |
Linux-5.4.61 |
|
File System |
Buildroot-201902 |
|
|
Uplink Protocol |
IEC61850 |
|
|
Downlink Protocol |
ModBus RTU, ModBus TCP |
|
|
Modbus Data Points Capacity |
More than 10,000(maximum) |
|
|
Programming Software |
CodeWorx |
|
|
SCL File Format |
CID |
Product Selection
The product naming convention is: Host model + SOM.
If WiFi is needed, add “W” after the host model, for example, BE120W-SOM335.
If a 4G module is needed, add “L” after the host model, for example, BE120L-SOM335.
BE120 Series Model Selection Table
|
Model |
ETH |
USB |
HDMI |
X Board |
Y Board |
Dimensions |
|
BE120 |
1x1000Mhz, 1x100Mhz |
2xUSB2.0 |
X |
2x5PIN |
X |
110x83x46mm |
|
BE120A |
1x1000Mhz, 1x100Mhz |
2xUSB2.0 |
X |
2x5PIN |
1 |
110x83x46mm |
BE120 Series SOM Model Selection Table
|
Model |
MCU |
Clock Speed |
Kernel |
Nand Flash |
eMMC |
DDR3 |
Temperature Range |
|
SOM330 |
T113-i |
1.2GHz |
2 x A7 |
256Mbyte |
/ |
256Mbyte |
Industrial Grade -40~85℃ |
|
SOM331 |
T113-i |
1.2GHz |
2 x A7 |
256Mbyte |
/ |
128Mbyte |
Industrial Grade -40~85℃ |
|
SOM332 |
T113-i |
1.2GHz |
2 x A7 |
/ |
4GByte |
256MByte |
Industrial Grade -40~85℃ |
|
SOM333 |
T113-i |
1.2GHz |
2 x A7 |
/ |
4GByte |
512MByte |
Industrial Grade -40~85℃ |
|
SOM334 |
T113-i |
1.2GHz |
2 x A7 |
/ |
8GByte |
512MByte |
Industrial Grade -40~85℃ |
|
SOM335 |
T113-i |
1.2GHz |
2 x A7 |
/ |
8GByte |
1GByte |
Industrial Grade -40~85℃ |
|
SOM336 |
T113-i |
1.2GHz |
2 x A7 |
/ |
4GByte |
256MByte |
Wide Temperature -20~70℃ |
Y Series I/O Board Model Selection Table
|
Model |
Description |
|
Y63 |
4CH RS485/RS232 |
