Name: Isolated 2CH RS485/RS232 Serial Ports + 12CH DI Module
Brand: Beilai Tech. Co., Ltd.
SKU: X28
Availability: InStock
Rating: 5 (1 reviews)

Isolated 2CH RS485/RS232 Serial Ports + 12CH DI Module

No.X28

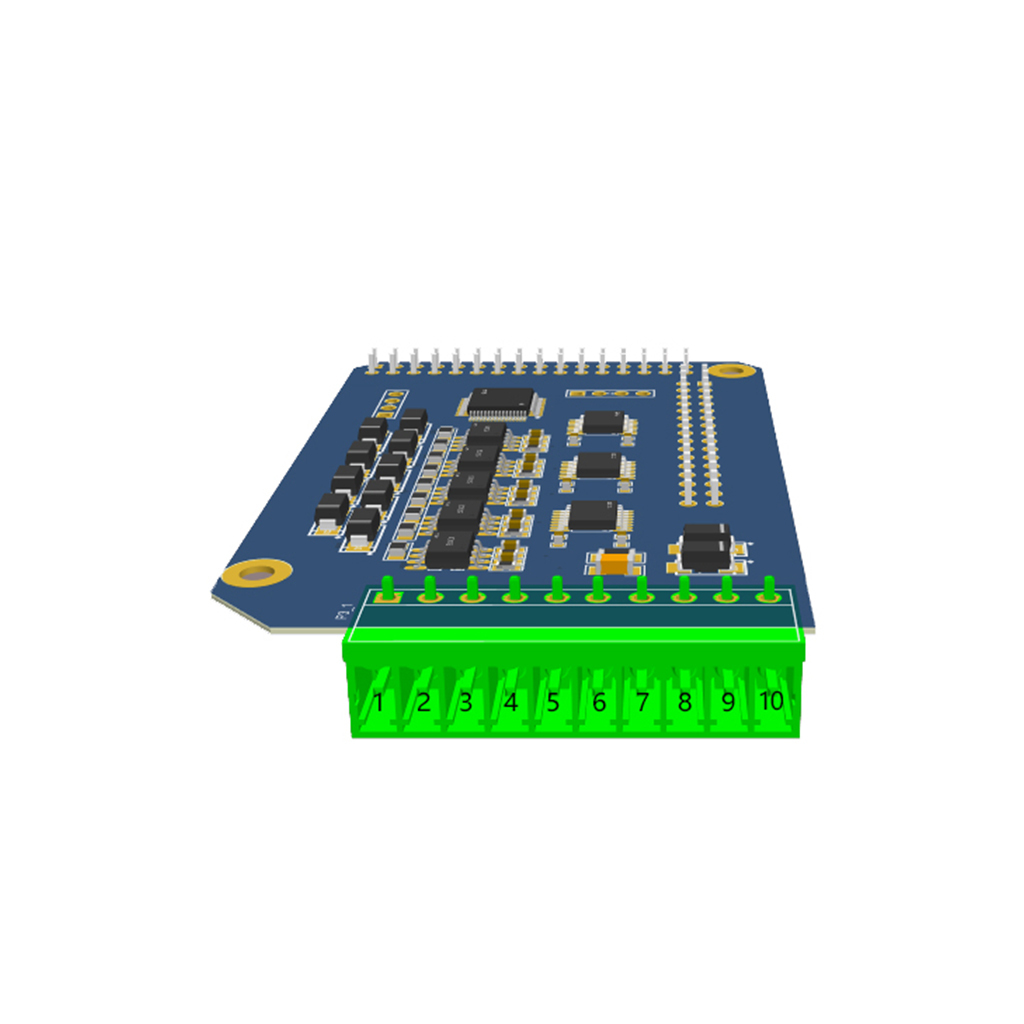

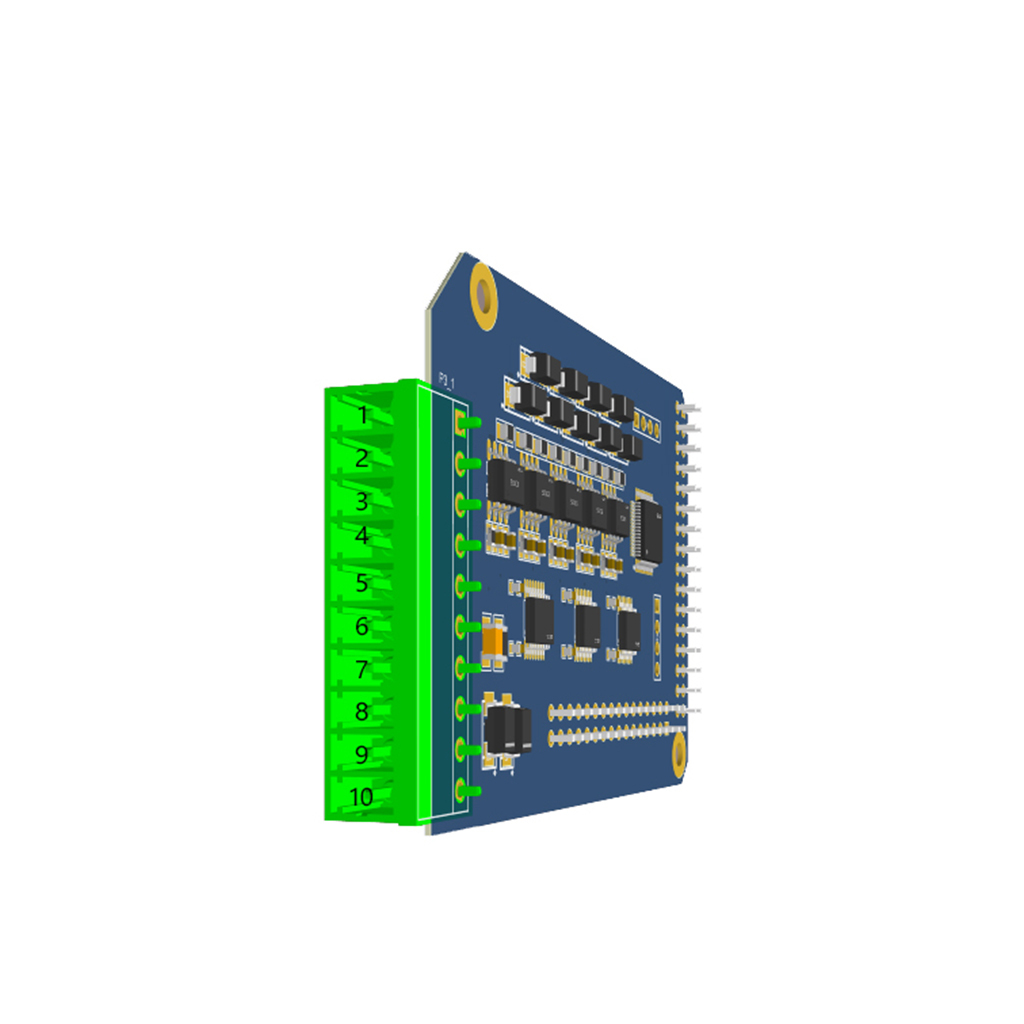

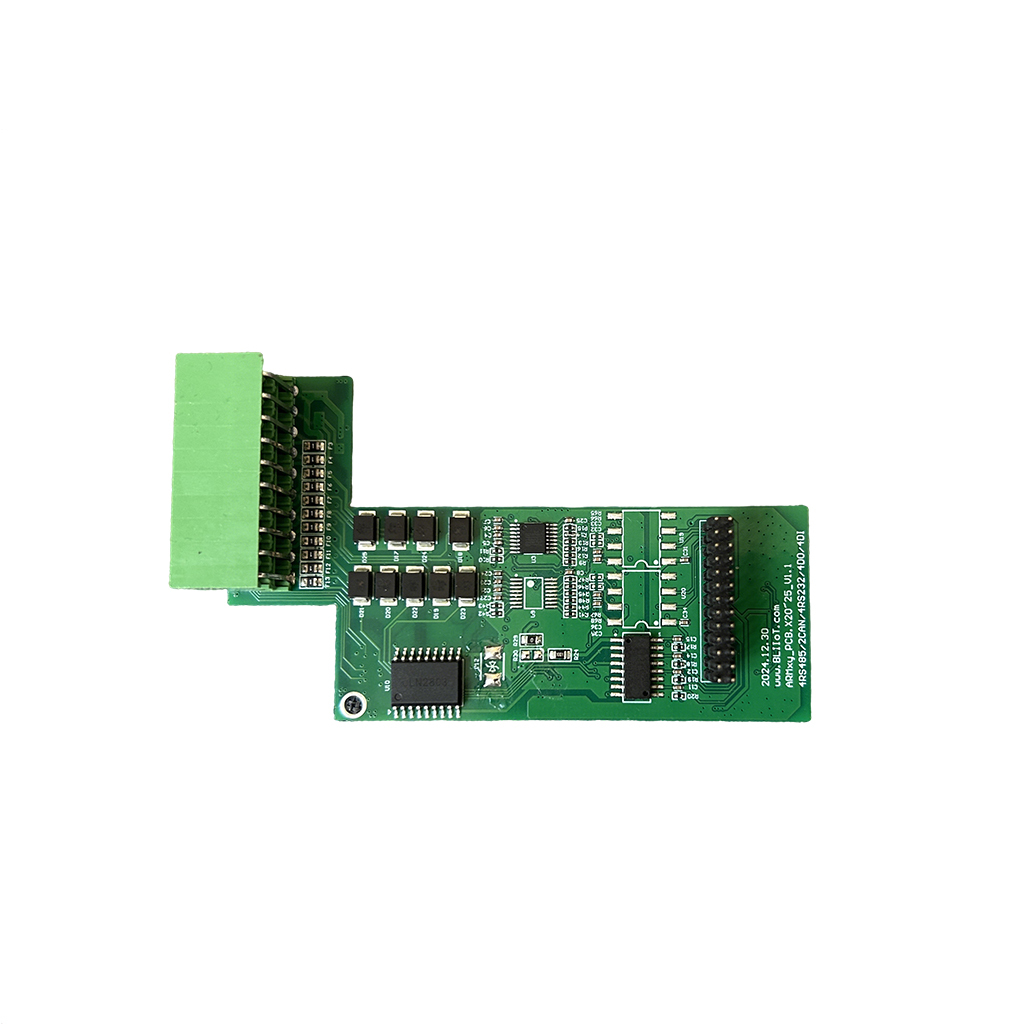

X28 is an isolated I/O module for ARMxy ARM-based embedded controllers, featuring 2 RS485/RS232 and 12 DI channels. It supports baud rates from 2400–230400bps with built-in digital isolation. DI channels support dry/wet contact modes and PNP/NPN sensors. With X28, ARMxy controllers are ideal for industrial control, energy storage, smart factories, and IIoT applications.

We use Cookie to improve your online experience. By continuing browsing this website, we assume you agree our use of Cookie.

ARMxy X Series I/O Board Selection
Model	RS232/RS485	CAN	DI	DO	GPIO	PIN
X10	2	×	×	×	×	6PIN
X11	×	2	×	×	×	6PIN
X12	1	1	×	×	×	6PIN
X13	×	×	2	2	×	6PIN
X14	×	×	4	×	×	6PIN
X15	×	×	×	4	×	6PIN
X16	×	×	×	×	4	6PIN
X20	4	×	×	×	×	10PIN
X21	3	1	×	×	×	10PIN
X22	2	2	×	×	×	10PIN
X23	4	×	4	4	×	20PIN
X24	3	1	4	4	×	20PIN
X25	2	2	4	4	×	20PIN
X26	2	×	8	4	×	20PIN
X27	1	1	8	4	×	20PIN
X28	2	×	12	×	×	20PIN
X29	1	1	12	×	×	20PIN
X30	×	×	×	×	16	20PIN

Isolated 2CH RS485/RS232 Serial Ports + 12CH DI Module
